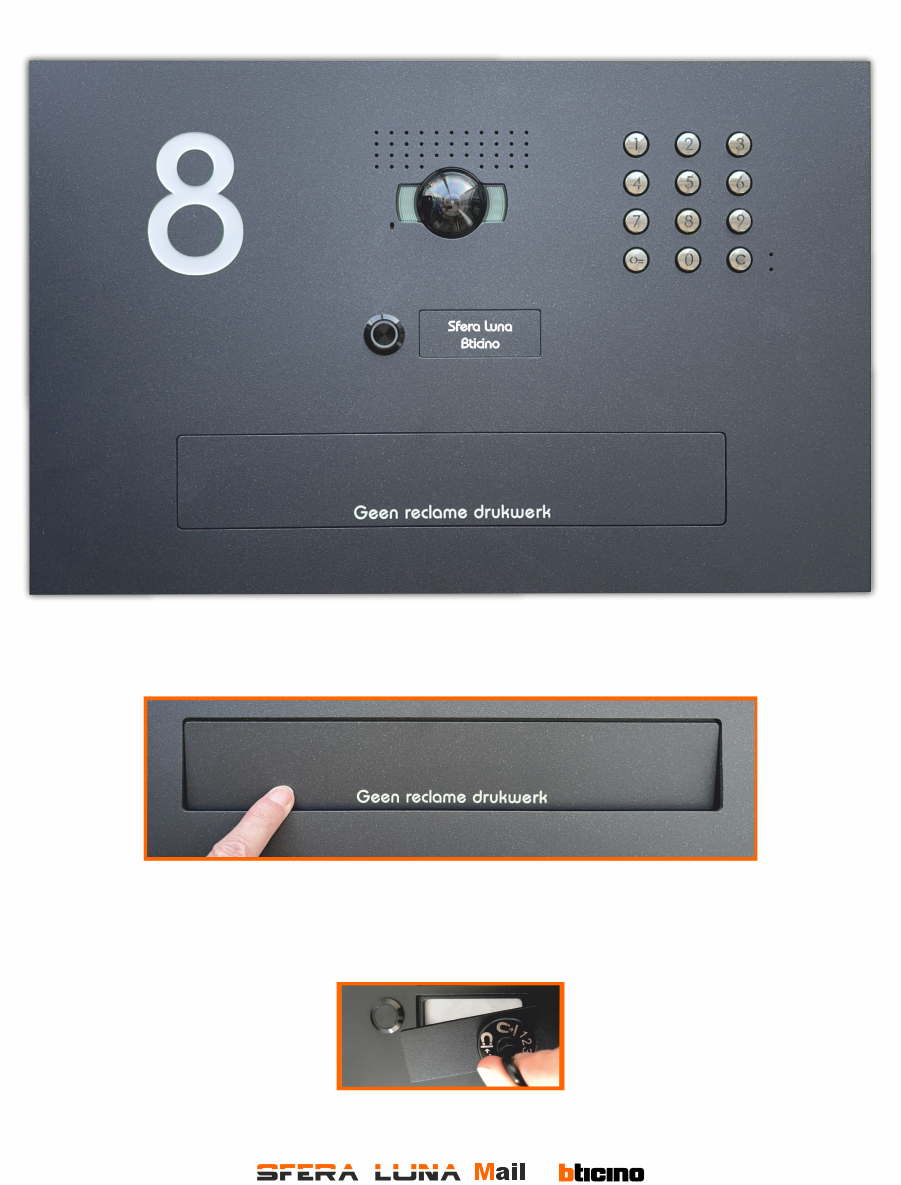

Video Parlofonie High-End Bticino SFERA LUNA+1 code keyboard with horizontal letterbox flap

Video entrance front panel with letterbox flap / throw-in flap vertical + name shield and code keyboard / keypad numeric.

For Bticino outdoor station = 2 wire audio/video module 351300 wide angle + keypad 353000

"All-in-one" for Bticino components.

Sleek high-end design at the entrance to your home, apartment, gate or business ....

Design front panel made of 10mm aluminum with solid letterbox flap thickness 5mm.

Flap opening: width 295mm x height 50mm = box minipack small & medium Bpost

Standard ral colour: black ral 9005 fine texture.  All Ral colors available

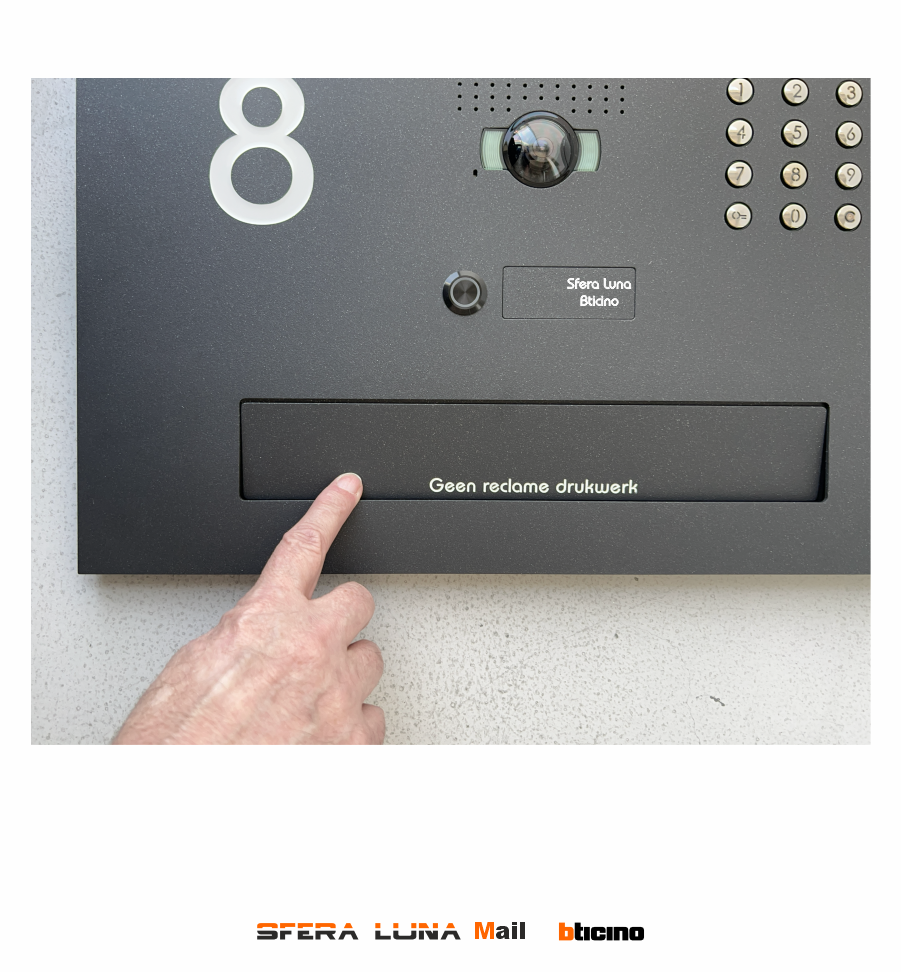

• Inward rotating letterbox flap, waterproof.
• The name tag can be easily changed with a unique, invisible mounting system.
• The name tag can be personalized when ordering or later.

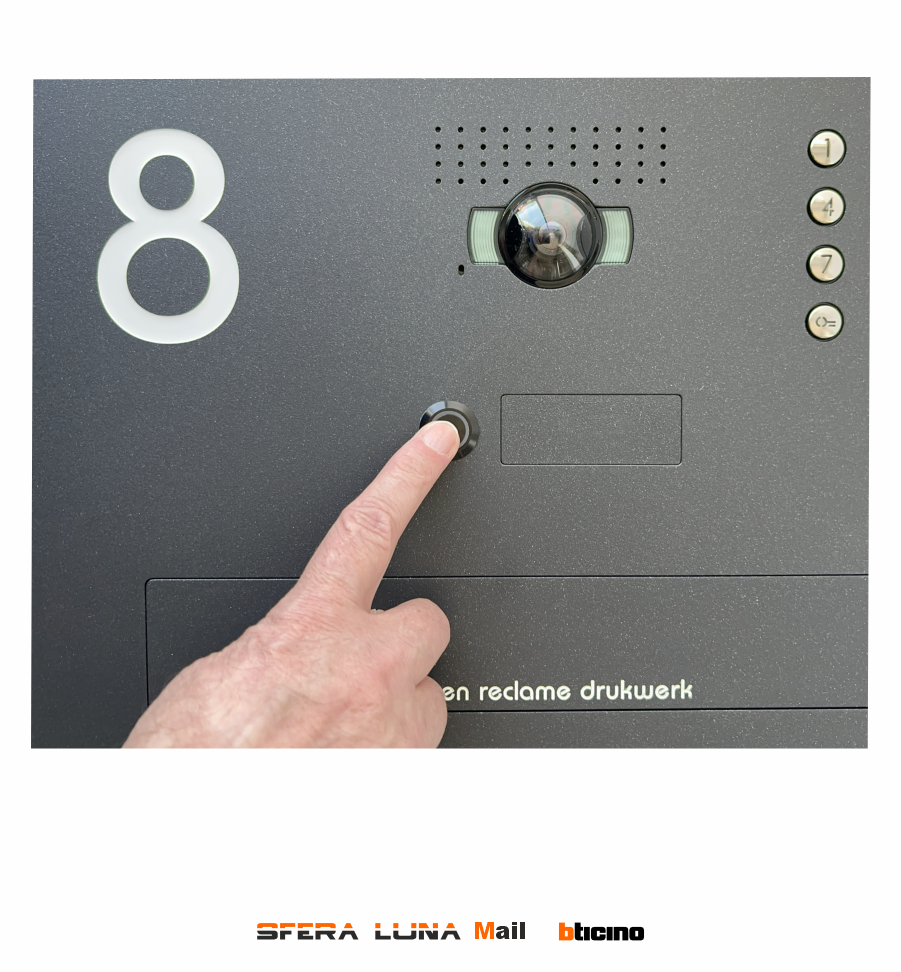

• Call pushbutton standard black or stainless steel (also available led illuminated)
• Central mounting system front panel (easy blind mounting).
• Vandalism resistant.
• Installation possibilities: on walls, gates, columns, mailboxes, etc.
• Easy installation in narrow surroundings.
• Unique built-in system for built-in gates, columns, ...

Sfera Luna, partner of the Legrand Group (copyright model)

 All Ral colours available

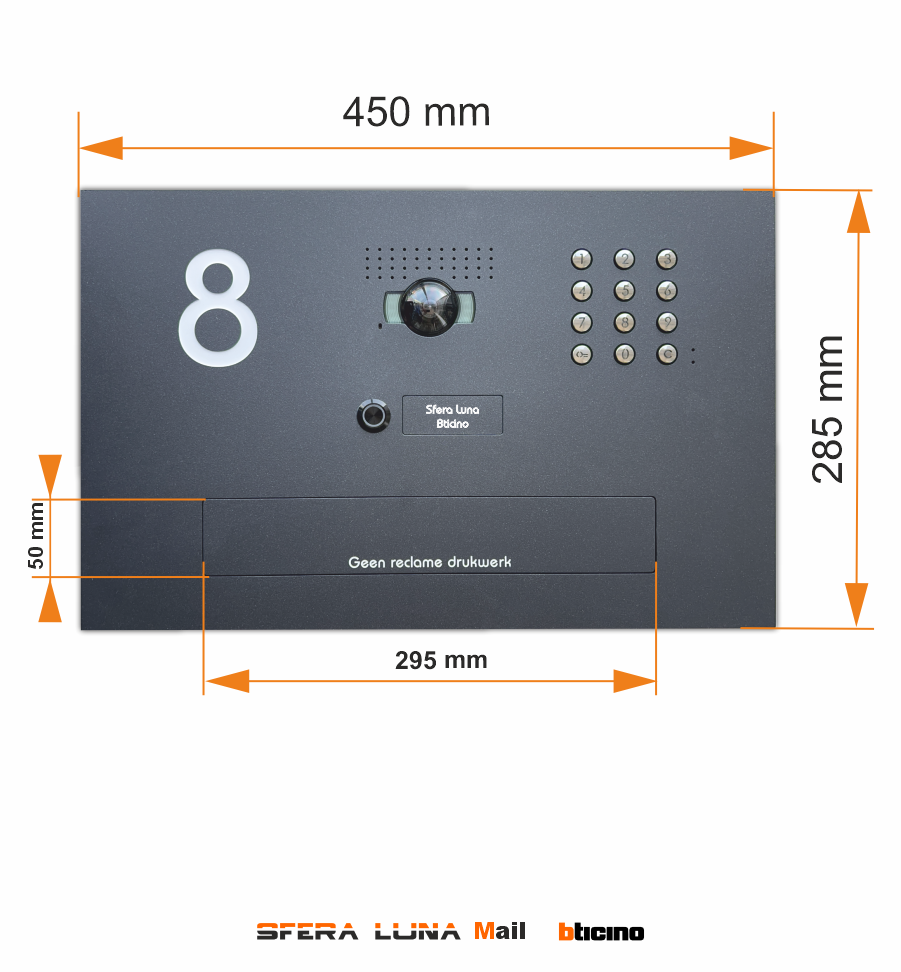

Dimensions: width 450 mm x height 285 mm

Letterbox flap with opening: width 295 x height 50 mm

We supply:

1. Front panel in ral colour.
2. Support base for mounting
3. Mounting method: recessed (stucco)
4. 351305pkm - plexi for module 351300
5. 354000 videoparlofonie connection cable for functional modules
6. 353005pkm - plexi front panel code keyboard
7. 1 call pushbutton
8. 1 name tag, interchangeable
9. Letterbox flap with opening: width 450 x height 285 mm

You need:

1. 351300 - Audio/video module with wide-angle lens
2. 353000 - Keypad LED illuminated
3. 346993 - Interface Sfera
4. 346050- Power supply
5. Compatible with all bTicino Indoor units: 100X16E  or 300EOS (344842) or https://ecataleg.be/nl/categorie/16621/binnenposten

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made

Sfera Luna (partner of the Legrand Group), copyright model.
