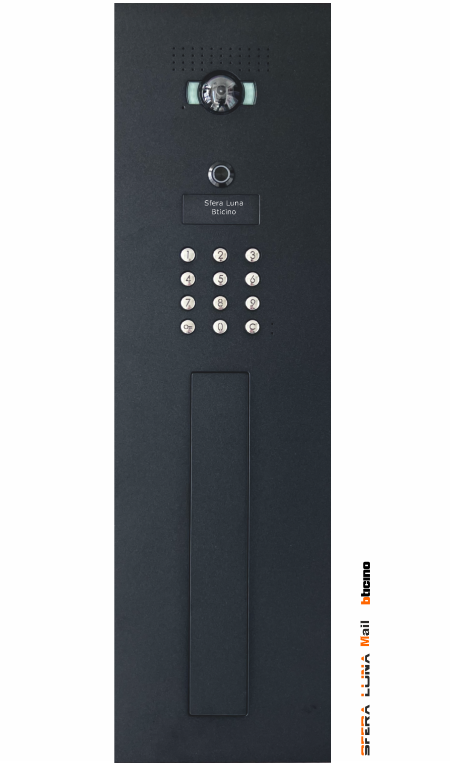

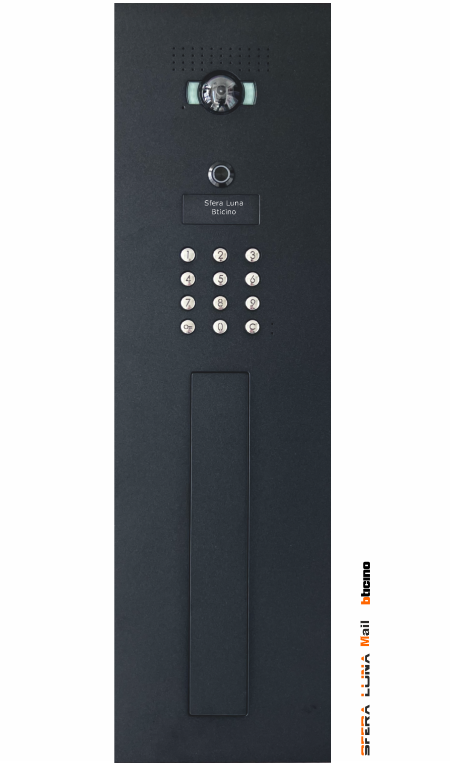

Video Parlofonie High-End Bticino SFERA LUNA+1 code keyboard with vertical letterbox flap

Video entrance front panel with letterbox flap / throw-in flap vertical + name shield and code keyboard / keypad numeric.

For Bticino outdoor station = 2 wire audio/video module 351300 or 351500 wide angle + keypad 353000

"All-in-one" for Bticino components.

Sleek high-end design at the entrance to your home, apartment, gate or business ....

Design front panel made of 10mm aluminum with solid letterbox flap thickness 5mm.

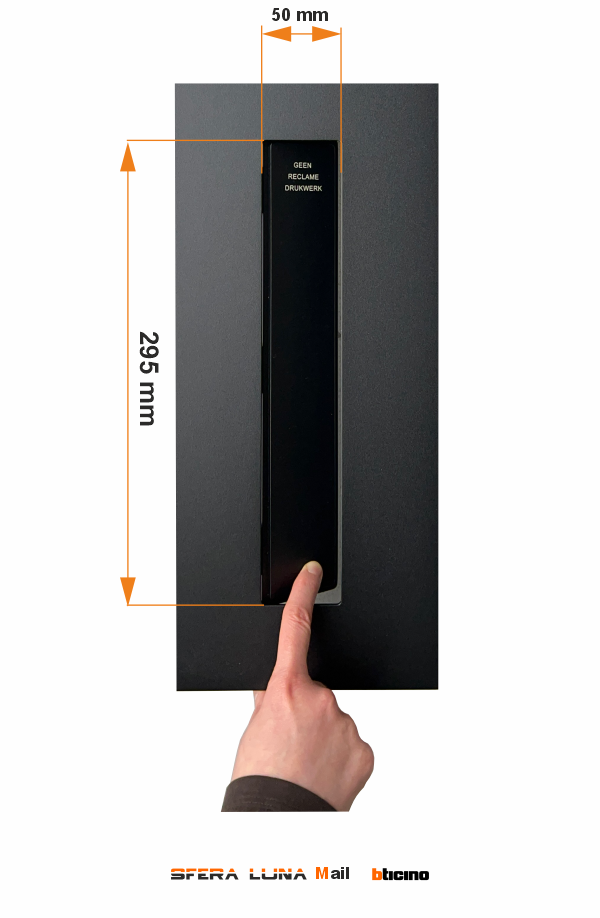

Flap opening: width 50mm x height 295mm = box minipack small & medium Bpost

Standard ral colour: black ral 9005 fine texture.  All Ral colors available

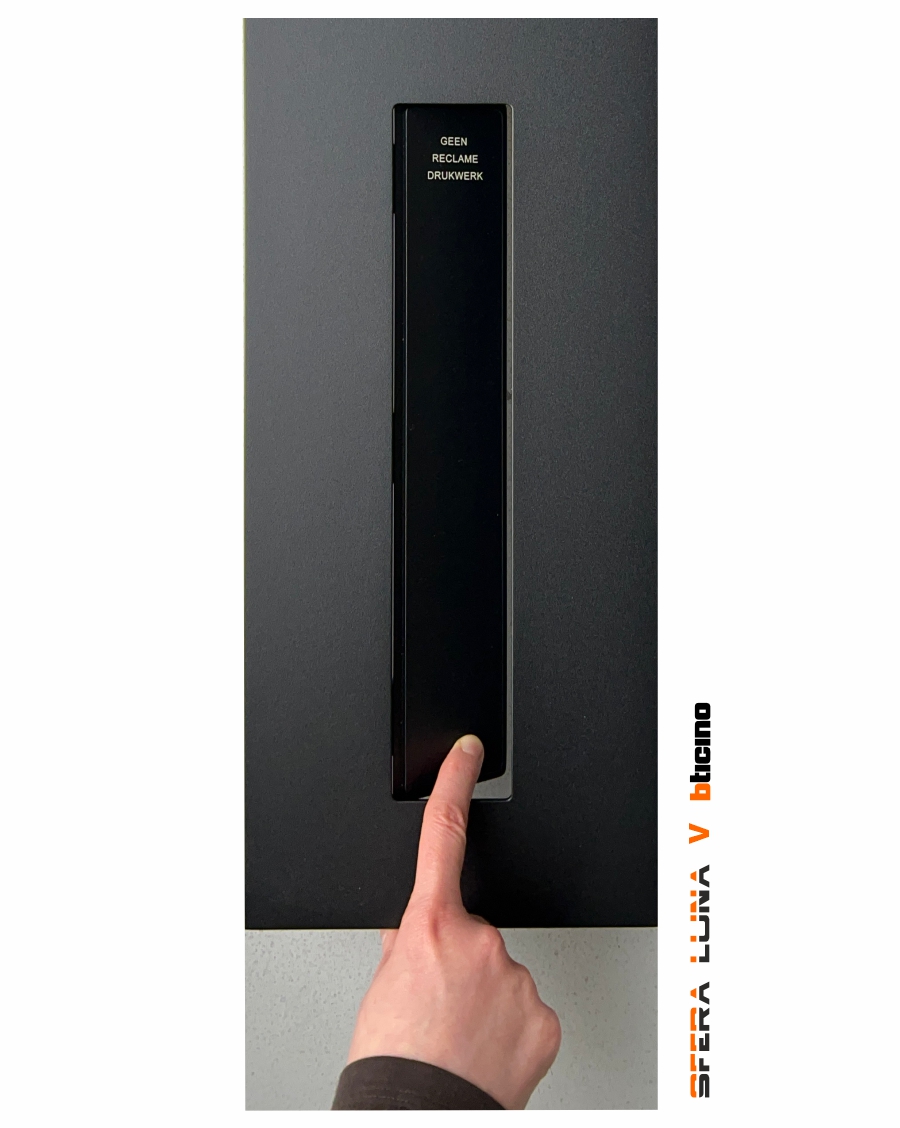

• Inward rotating letterbox flap, waterproof.
• Standard mounting
• The name tag can be easily changed with a unique, invisible mounting system.
• The name tag can be personalized when ordering or later.
• Call pushbutton standard black or stainless steel (also available led illuminated)
• Central mounting system front panel (easy blind mounting).
• Vandalism resistant. IK08
• Installation possibilities: on walls, gates, columns, mailboxes, etc.
• Easy installation in narrow surroundings.
• Unique built-in system for built-in gates, columns, ...
• Level mounting possible via oblong holes.

Sfera Luna, partner of the Legrand Group (copyright model)

All Ral colours available

Dimensions: width 185 mm x height 740 mm

We supply:

1. Front panel entrance in ral colour. (IK08 - IP54)
2. Modular panel frame + screws for installation on mounting box 350010+350020 Bticino (pre-assembled)
3. Mounting method: recessed (stucco)
4. 351305pkm - plexiglas for module 351300
5. 354000 videoparlofonie connection cable for functional modules
6. 353005pkm - plexi front panel code keyboard
7. 1 pushbutton black stainless steel, stainless steel or led (IK08 -IP67)
8. 1 interchangeable name tag
9. Letterbox flap with opening: width 50 x height 295 mm
10. Tool for mounting changeable name tag

You need:

1. 351300 - Audio/video module with wide-angle lens
2. 353000 - Keypad LED illuminated
3. 346993 - Interface Sfera
4. 346050- Power supply
5. Compatible with all bTicino Indoor units: 100X16E  or 300EOS (344842) or https://ecataleg.be/nl/categorie/16621/binnenposten
6. Preferably use REF 336904 twisted cable for the connection

 Create your personal videophone with our editor order form.

• Combine your combination(s) into an original concept!
• Real time display. The rendering will always be optimized by our typographer / graphic artist.
• The order form is already preset and indicated in blue like the photo shown in our webshop.

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made

Sfera Luna (partner of the Legrand Group), copyright model.
