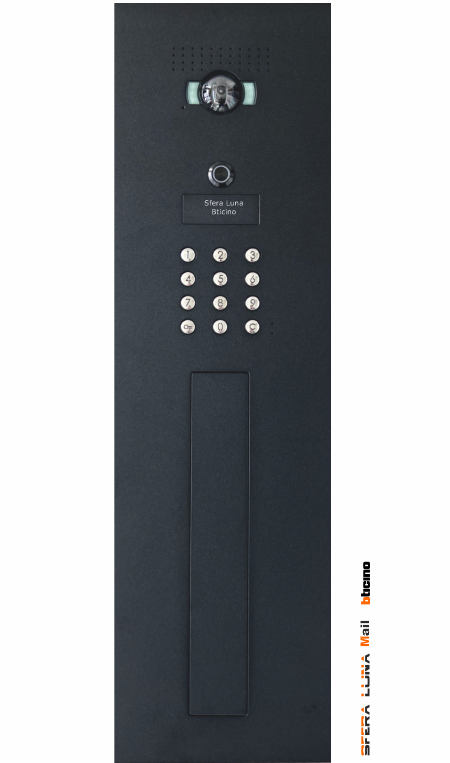

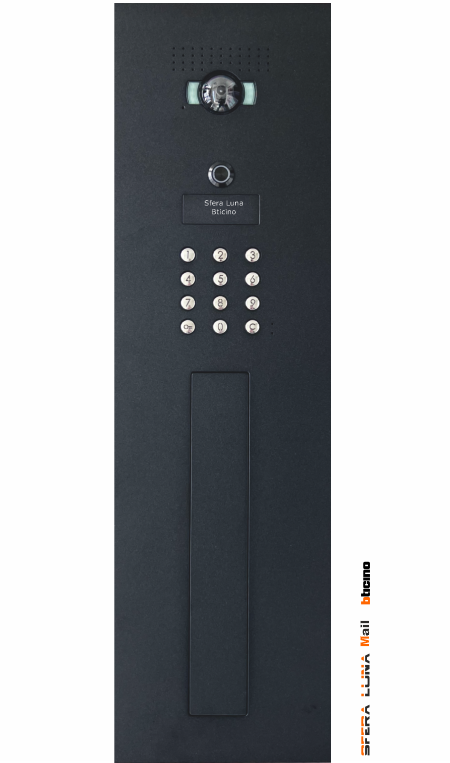

Video entrance front panel with letterbox flap / throw-in flap vertical + name shield and code keyboard / keypad numeric.
For Bticino outdoor station = 2 wire audio/video module 351300 wide angle + keypad 353000
"All-in-one" for Bticino components.
Sleek high-end design at the entrance to your home, apartment, gate or business ....
Design front panel made of 10mm aluminum with solid letterbox flap thickness 5mm.

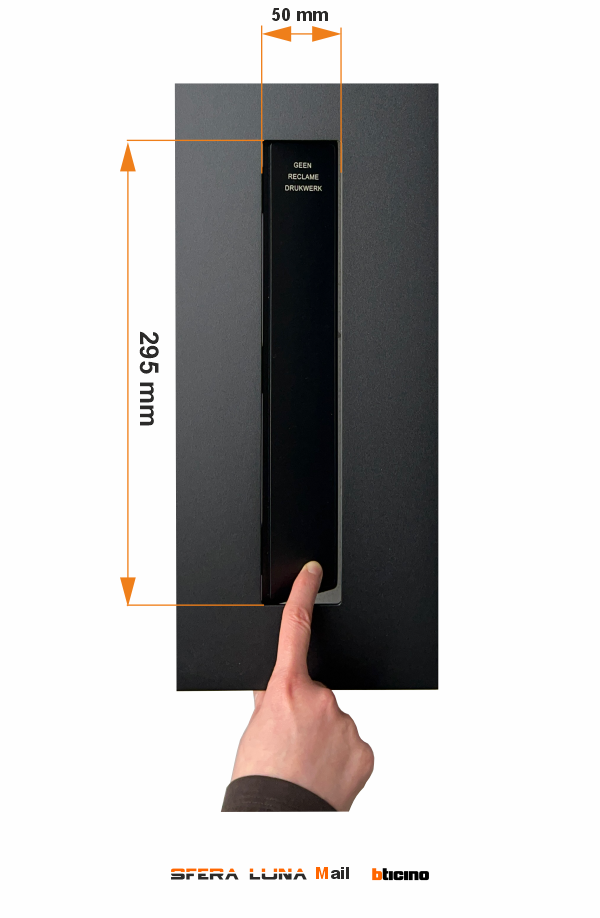

Flap opening: width 50mm x height 295mm = box minipack small & medium Bpost
Standard ral colour: black ral 9005 fine texture. All Ral colors available

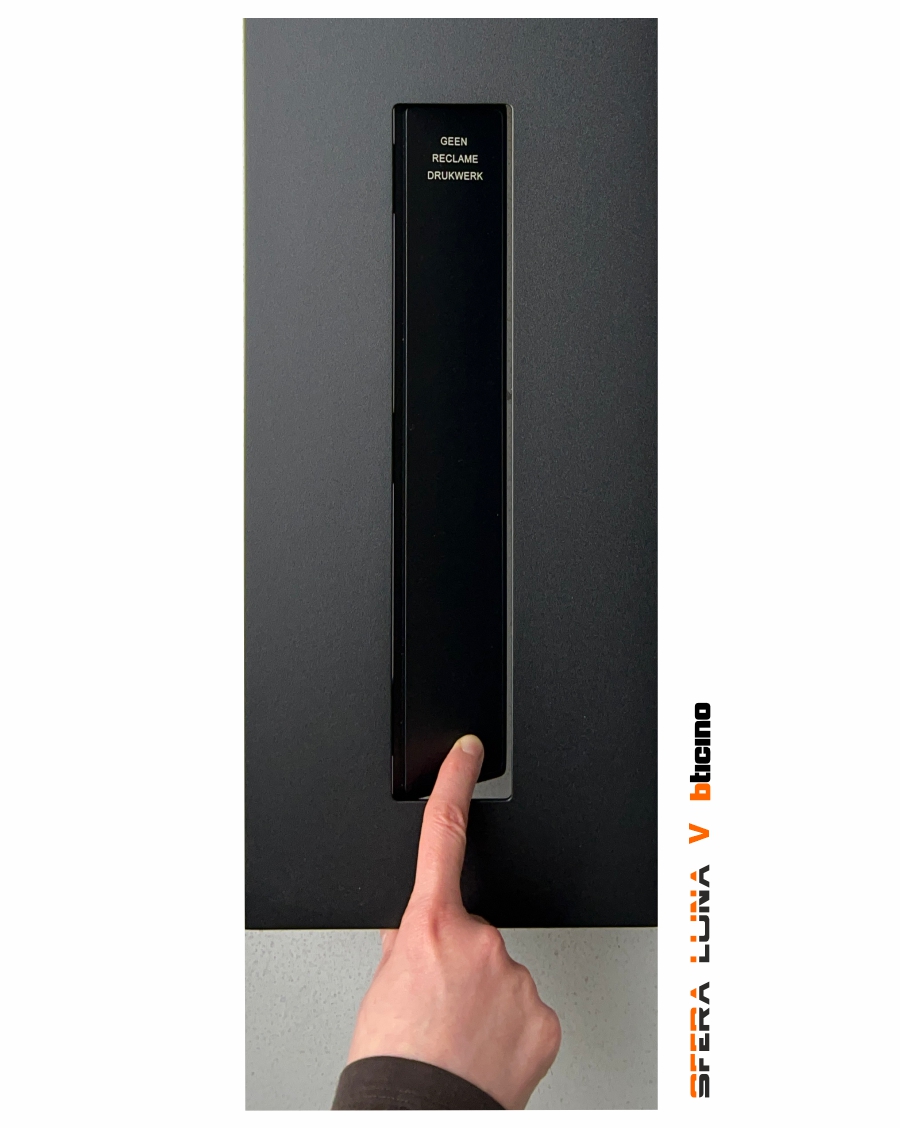

- Inward rotating letterbox flap, waterproof.
- Standard mounting
- The name tag can be easily changed with a unique, invisible mounting system.
- The name tag can be personalized when ordering or later.
- Call pushbutton standard black or stainless steel (also available led illuminated)
- Central mounting system front panel (easy blind mounting).
- Vandalism resistant. IK08
- Installation possibilities: on walls, gates, columns, mailboxes, etc.
- Easy installation in narrow surroundings.
- Unique built-in system for built-in gates, columns, ...
- Level mounting possible via oblong holes.
Sfera Luna, partner of the Legrand Group (copyright model)
All Ral colours available
Dimensions: width 185 mm x height 740 mm
We supply:
- Front panel entrance in ral colour. (IK08 - IP54)
- Modular panel frame + screws for installation on mounting box 350010+350020 Bticino (pre-assembled)
- Mounting method: recessed (stucco)
- 351305pkm - plexiglas for module 351300
- 354000 videoparlofonie connection cable for functional modules
- 353005pkm - plexi front panel code keyboard
- 1 pushbutton black stainless steel, stainless steel or led (IK08 -IP67)
- 1 interchangeable name tag
- Letterbox flap with opening: width 50 x height 295 mm
- Tool for mounting changeable name tag
You need:
- 351300 - Audio/video module with wide-angle lens
- 353000 - Keypad LED illuminated
- 346993 - Interface Sfera
- 346050- Power supply
- Compatible with all bTicino Indoor units: 100X16E or 300EOS (344842) or https://ecataleg.be/nl/categorie/16621/binnenposten
- Preferably use REF 336904 twisted cable for the connection
Create your personal videophone with our editor order form.
- Combine your combination(s) into an original concept!
- Real time display. The rendering will always be optimized by our typographer / graphic artist.
- The order form is already preset and indicated in blue like the photo shown in our webshop.
Aluminium THE GREEN METAL:
Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.
Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.
Designed & (hand) made
Sfera Luna (partner of the Legrand Group), copyright model.
