Audio Parlofonie High-End Module Sfera Luna2-A Bticino

Product Code : PL-0002A-2-BT

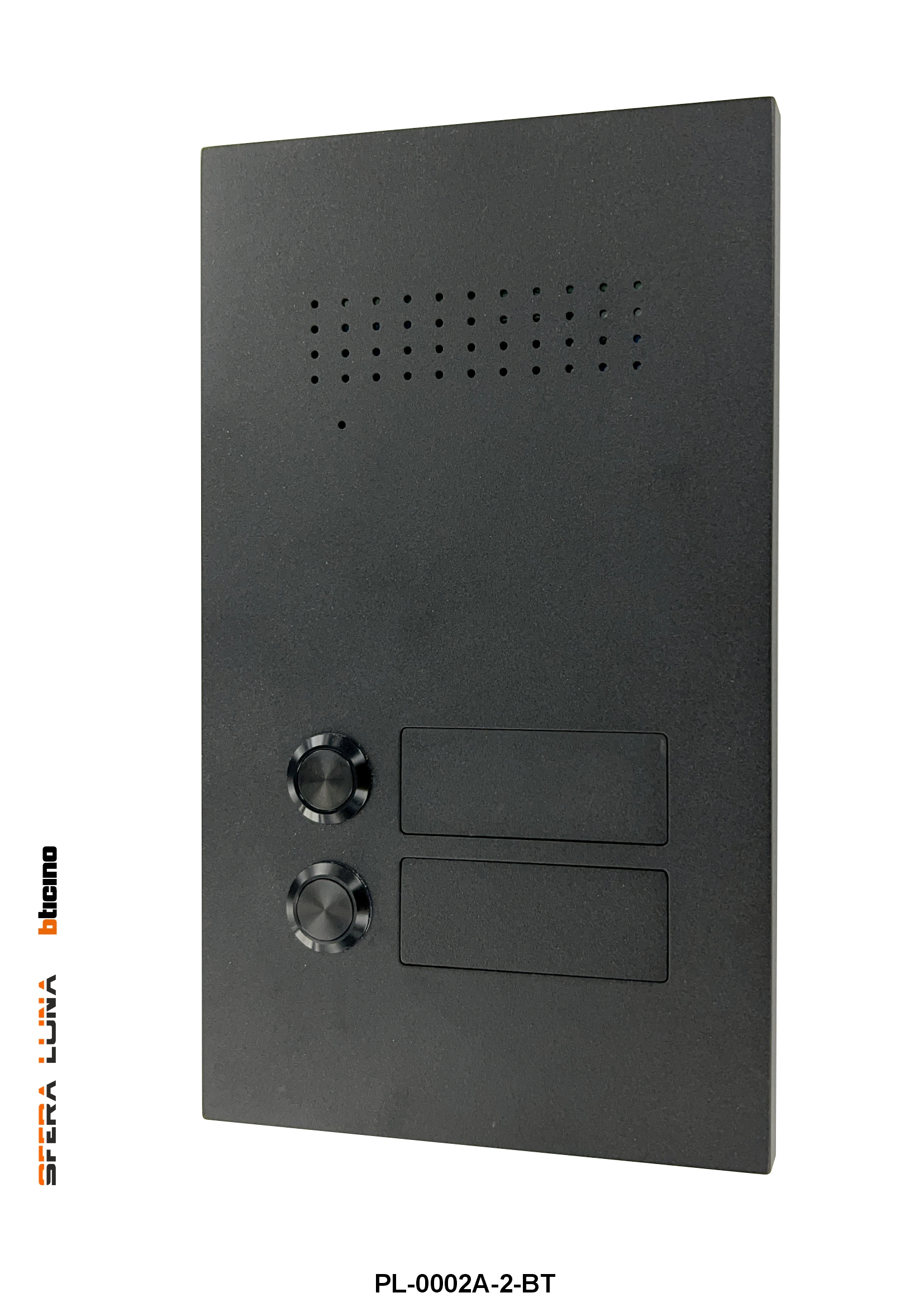

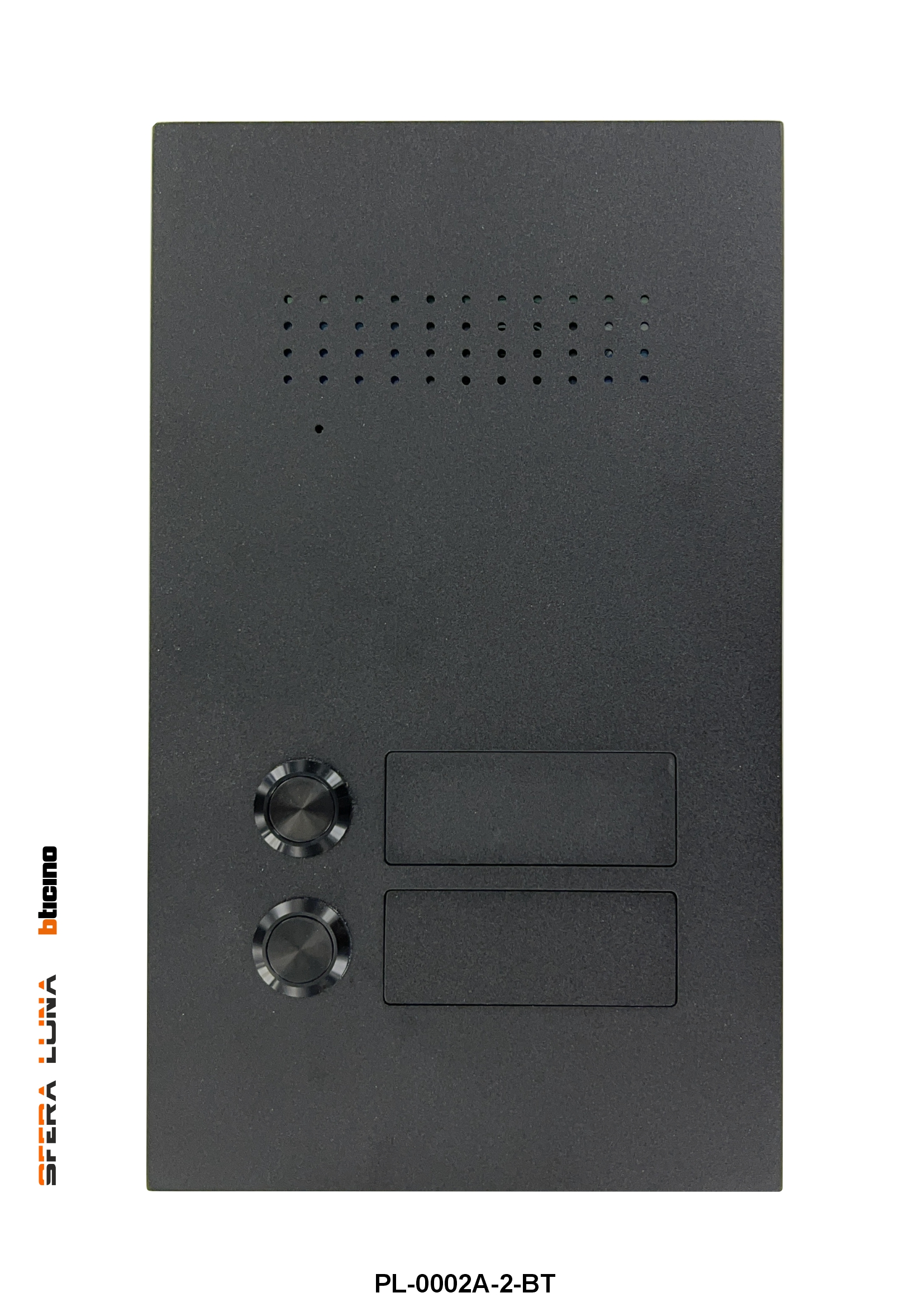

Audio Parlofonie front panel SFERA LUNA for Bticino entry panel 351300.


  • Produced in 10mm aluminium, High End, Solid finishing.
  • Central mounting system front panel. (Simple blind mounting)
  • Vandalism resistant.
  • Installation possibilities: on walls, gates, poles, parcel boxes, etc ...
  • available with ou without removable nameplate that can be personalized or not.
  • easy installation in narrow environments.
  • Model flush mounting on standard box Bticino 350020
  • Also available with surface-mounted module.

Designed & (hand) made in Belgium

R&D Invent bvba, copyright model.




ralkleuren plexi-view All Ral colours available


afmetingen plexi-view Dimensions: width 142mm x height 240mm


We supply :

  1. Front panel in ral color
  2. Basic bracket for mounting on AVT flush-mounting box 350020
  3. 351305pkm - Plexiglas of 351305 for mounting in a plate
  4. Screws for mounting on build-in boxes

You need :

  • 350020 AVT - flush-mounted box 2 modules
  • 351100 AVT - Audiomodule
  • Indoor unit optionally compatible: AVT - Class 100 V12E or AVT Class 300 X13E7 wifi-3/4G




  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.



Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.



Designed & (hand) made in Belgium


R&D Invent bvba, copyright model.
