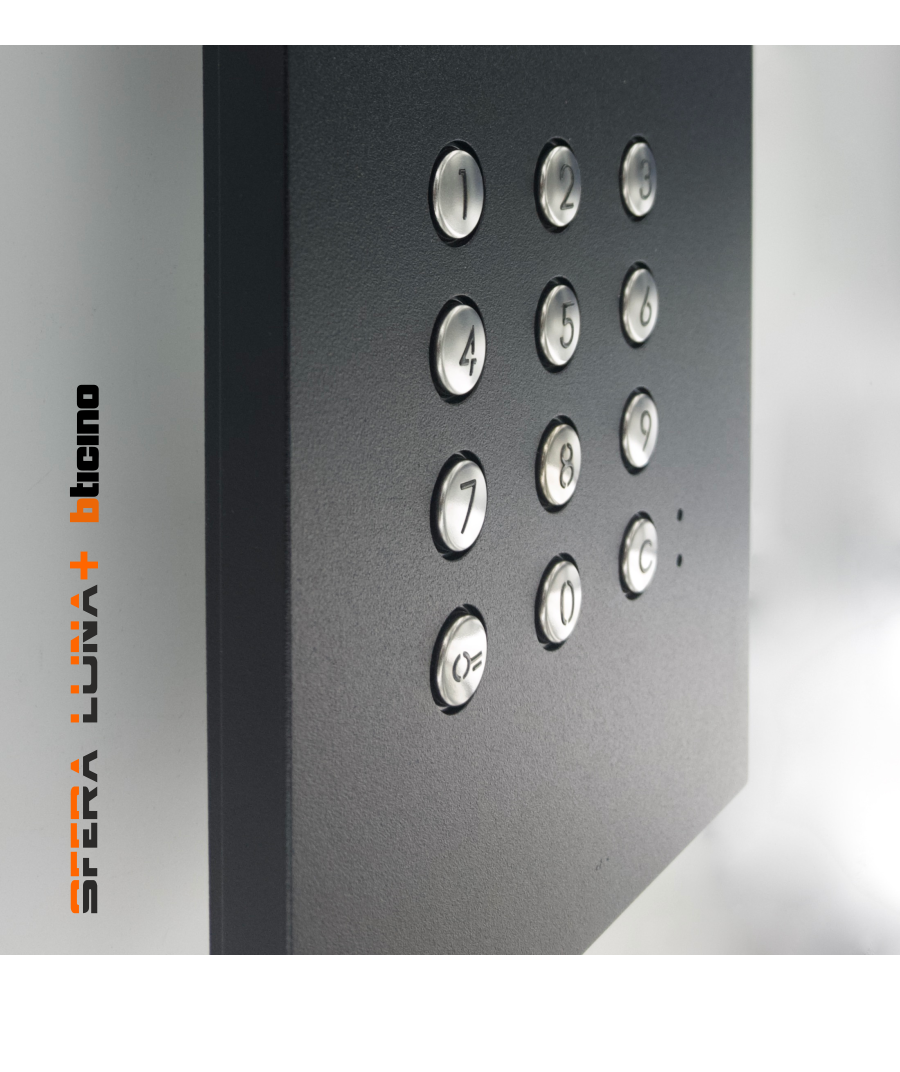

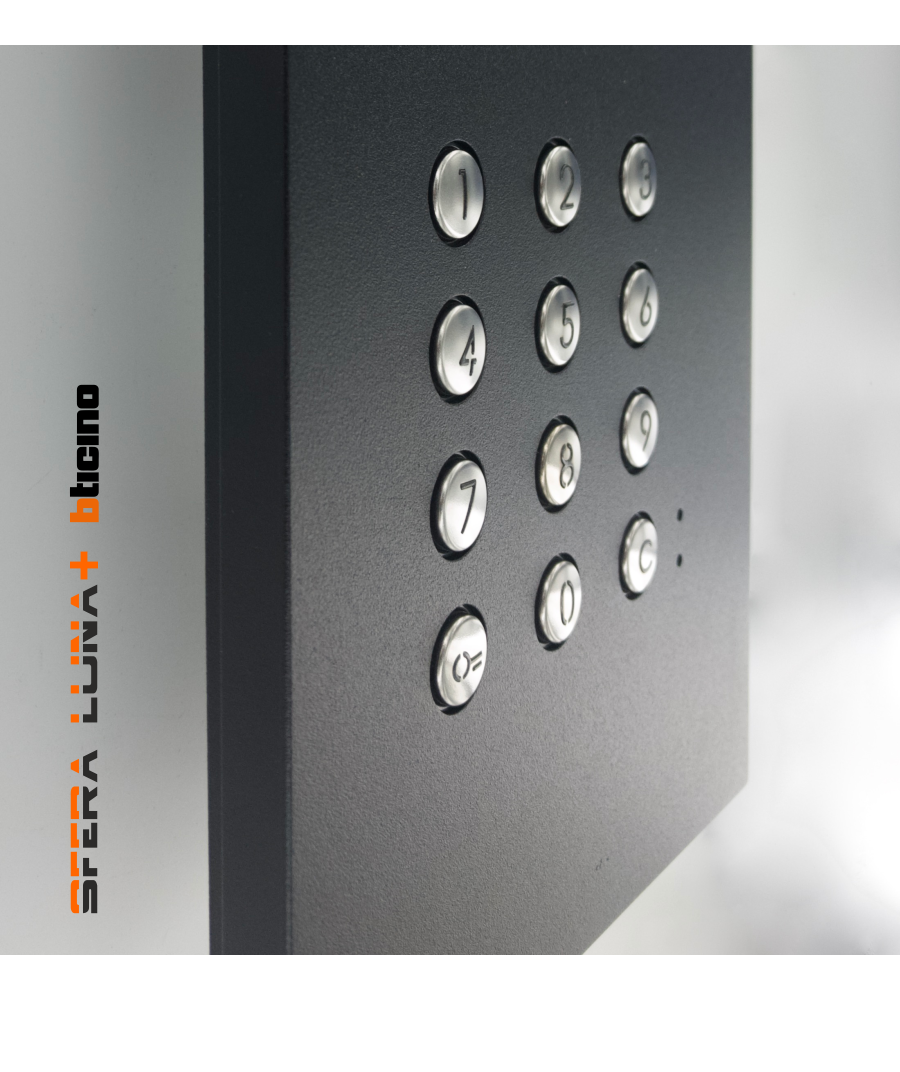

Video Parlofonie SFERA LUNA+2 Push-buttons keypad High-End Bticino

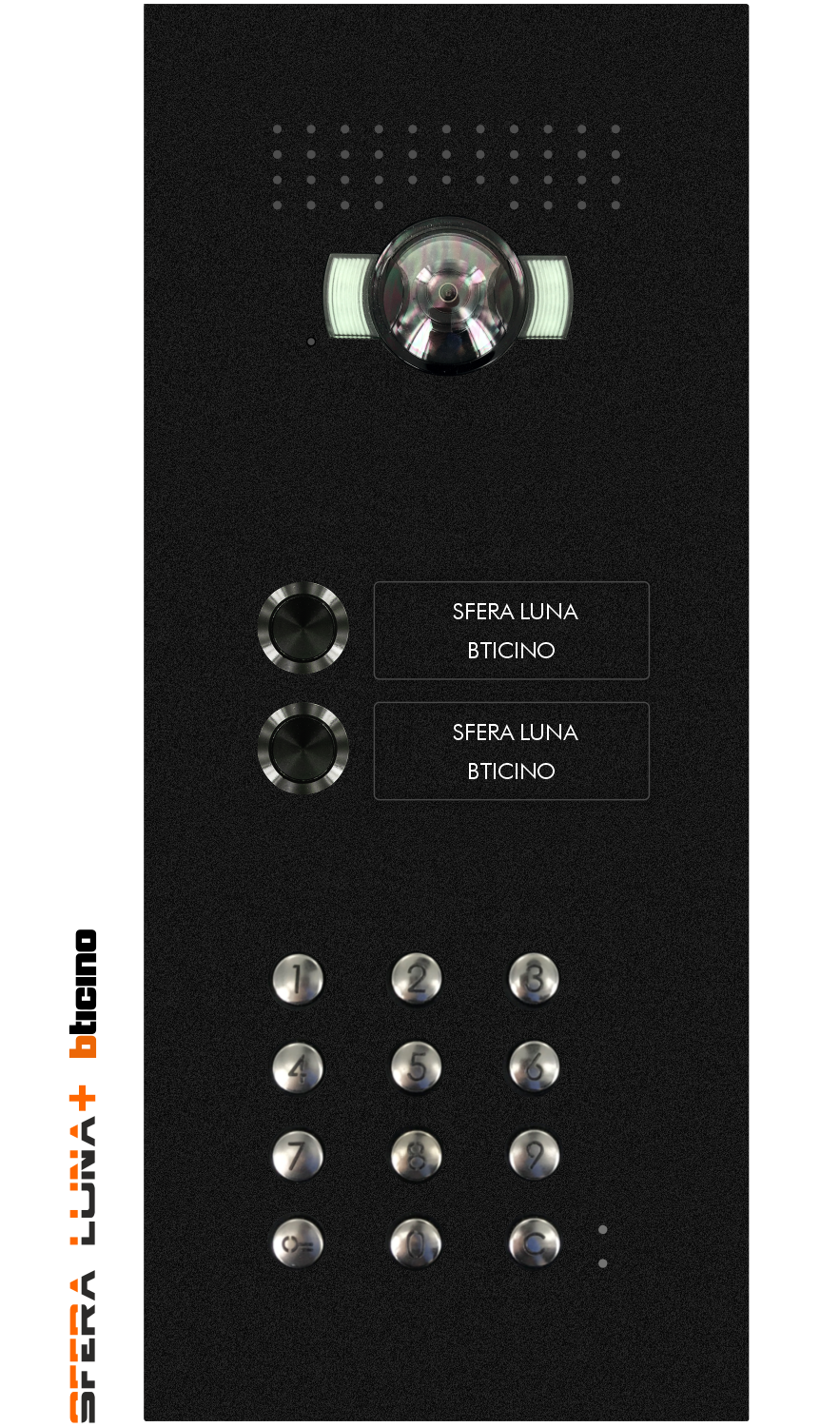

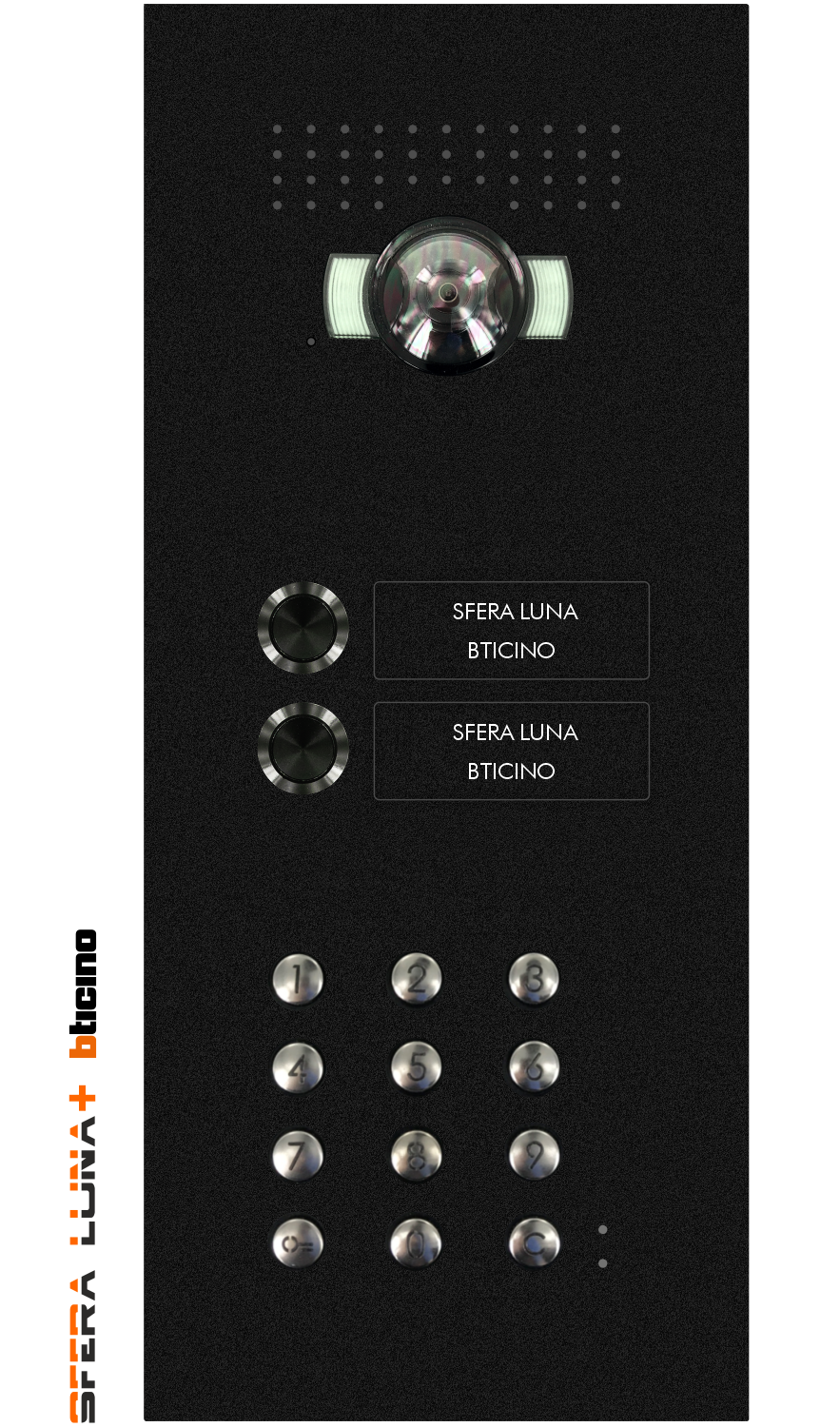

SFERA LUNA+ video entrace front panel with 2 removable name tags

For Biticino wide angle audio/video 351300 or 351500 & keypad 353000 ^{(LED illuminated)}

Sleek high-end design at the entrance, vandal resistant ...

Standard colour black, RAL 9005, fine texture

The front panels are available in all ral colors, matching the color of your residence or project.

• Made in 10mm aluminium, High End, solid finish.
• Central mounting system front panel. (easy blind mounting)
• Vandalism resistant. (IP54 - IK08)
• Installation possibilities: on walls, gates, columns, mailboxes, etc ...
• Easy installation in narrow surroundings.
• Model flush mounting on standard box Bticino 350030
• Removable name tag(s), personalised or not.
• The name tags can be personalised when ordering or later.
• Call pushbuttons
• Also available with surface-mounted module.

Sfera Luna, partner of the Legrand Group (copyright model)

All Ral colours available

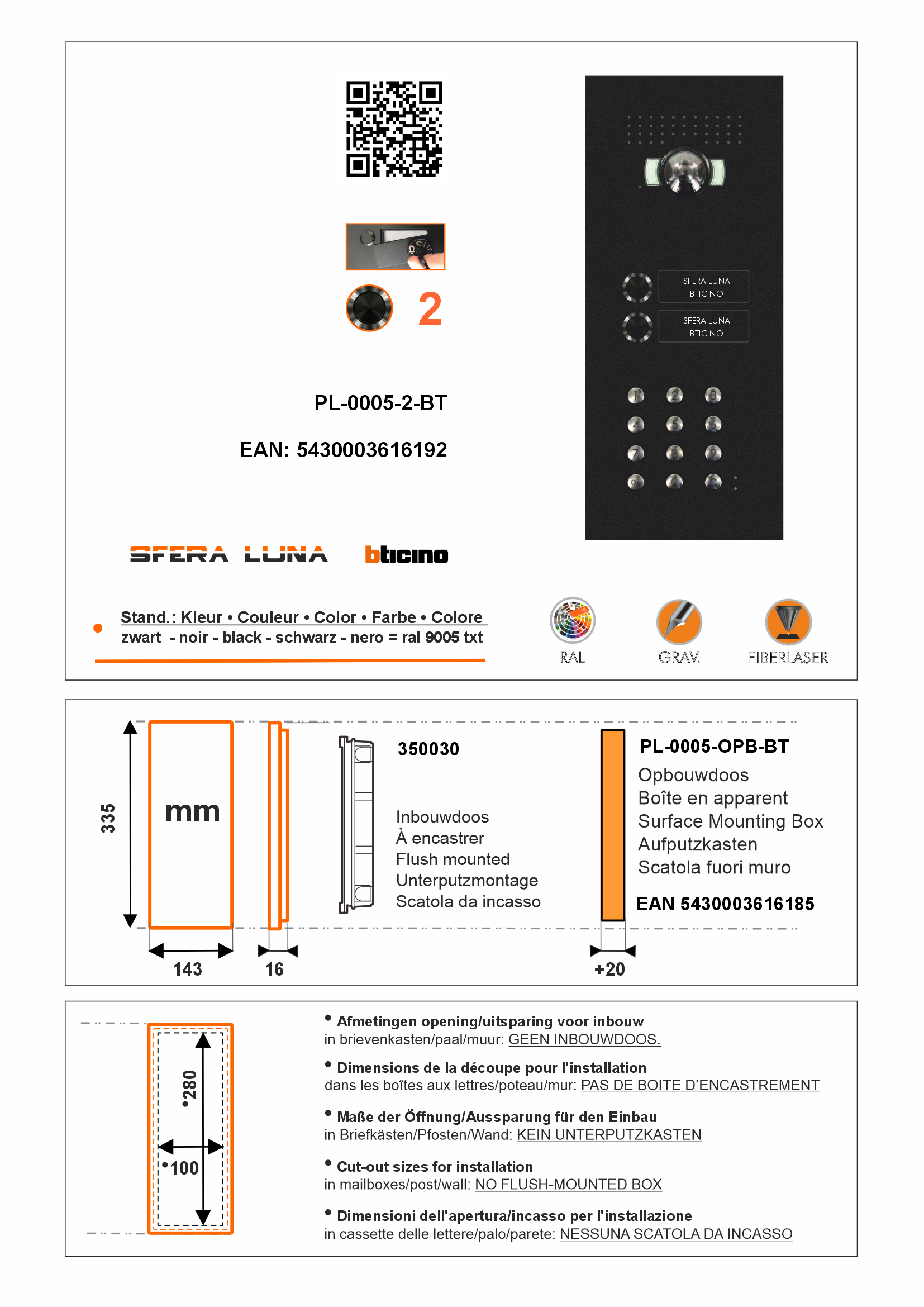

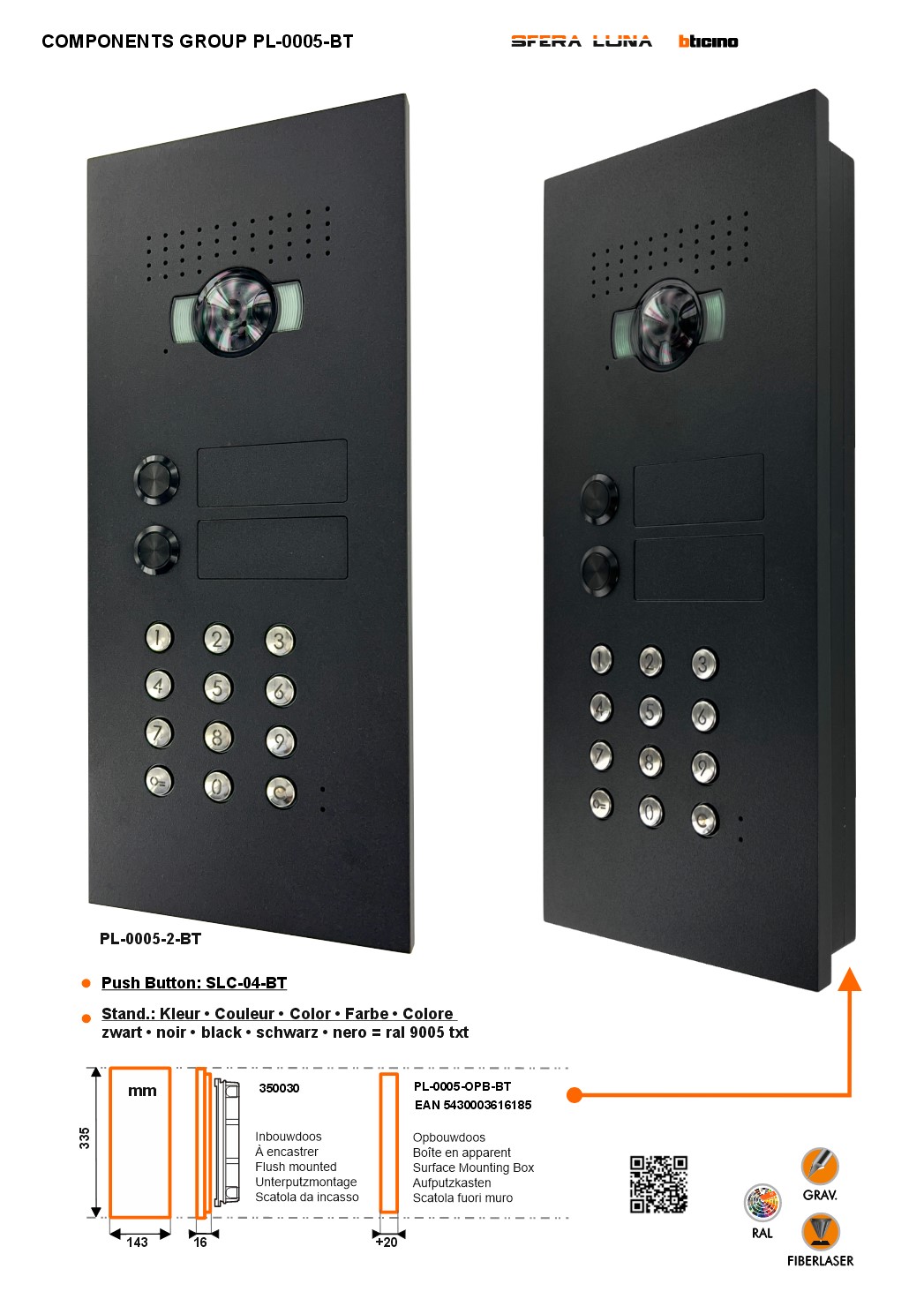

Dimensions: width 143mm x height 335mm

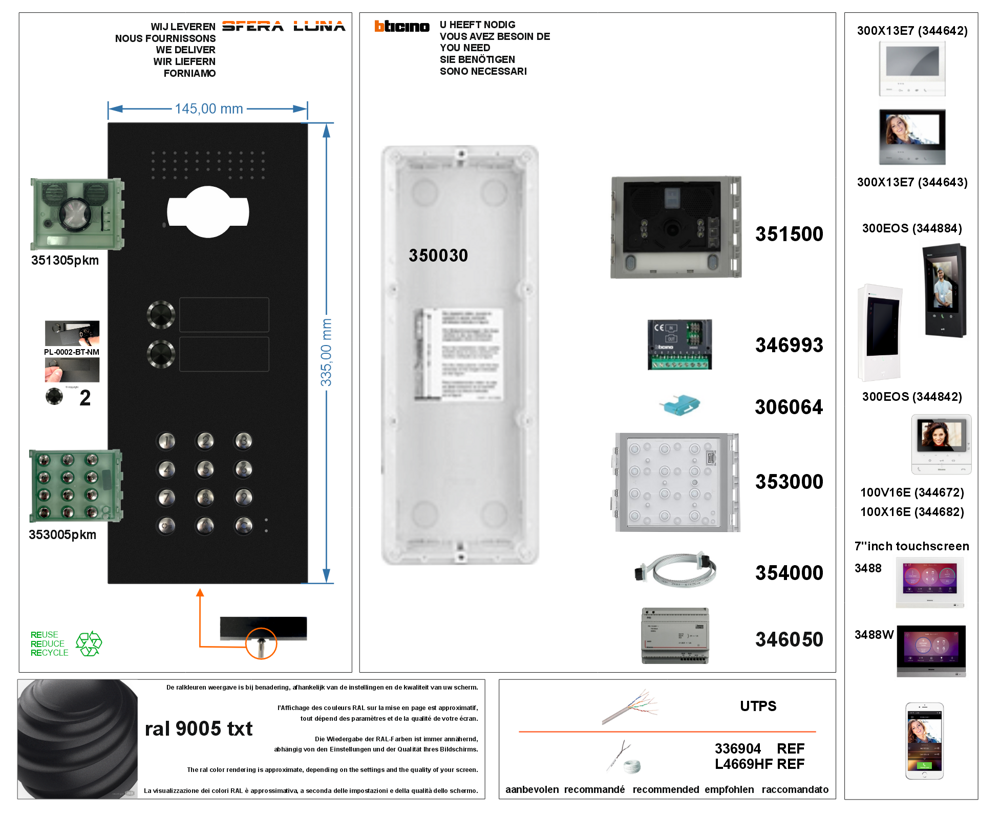

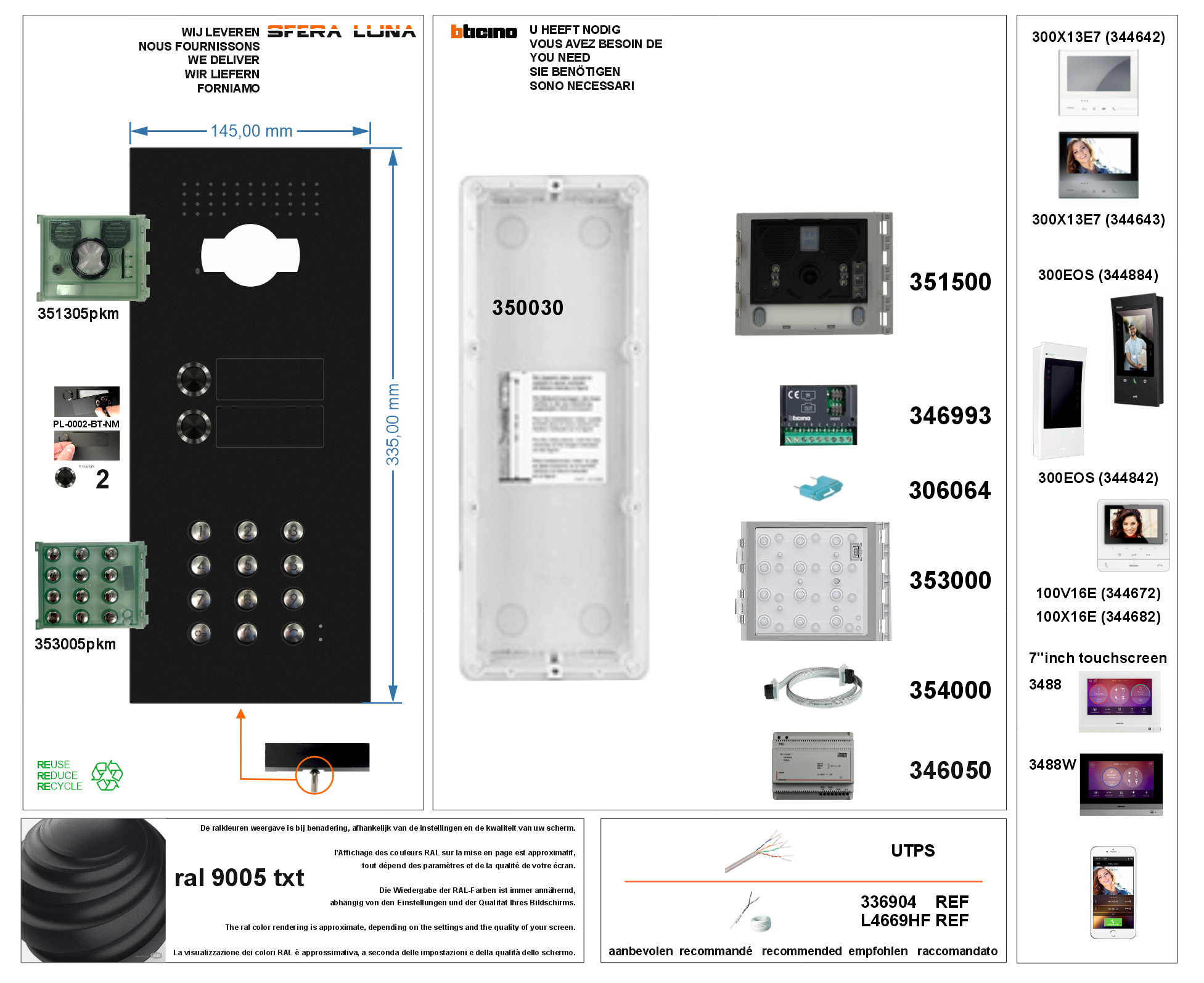

We supply:

1. Front panel entrance in ral colour.  (IP54 - IK08)
2. Modular panel frame + screws for installation on flush-mounting box 350030
3. 351305pkm - plexiglas for module audio/video BTicino
4. 353005pkm - plexi front panel keypad
5. 2 push buttons (integrated) in black stainless steel, stainless steel or led  (IP67 - IK08)
6. 2 interchangeable name tags (IP68)
7. Tool for mounting changeable name tags

You need Bticino:

1. 350030 - Flush-mounting box 3 modules
2. 354000 - Videoparlofonie connection cable 620mm for functional modules
3. 351300 or 351500 - Audio/video module with wide-angle lens
4. 353000 - keypad LED illuminated
5. 346993 - Interface Sfera (up to 8 call buttons possible)
6. 346050 - Power supply
7. 306064 - Config. set
8. Compatible with all Bticino indoor units: 100X16E (344682) or 300EOS (344842) or MyHOME_UP 7" Hometouch (3488)

    These Bticino components are available :

via the wholesaler
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores

 your personal videophone with our editor order form.

• Combine your combination(s) into an original concept!
• Real time display. The rendering will always be optimized by our typographer / graphic artist.
• The order form is already preset and indicated in blue like the photo shown in our webshop.

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made in Belgium

Sfera Luna (partner of the Legrand Group), copyright model.
