SFERA LUNA+ Fingerprint Reader Ekey & Badge Reader Video entry panel High-End Bticino (350030)

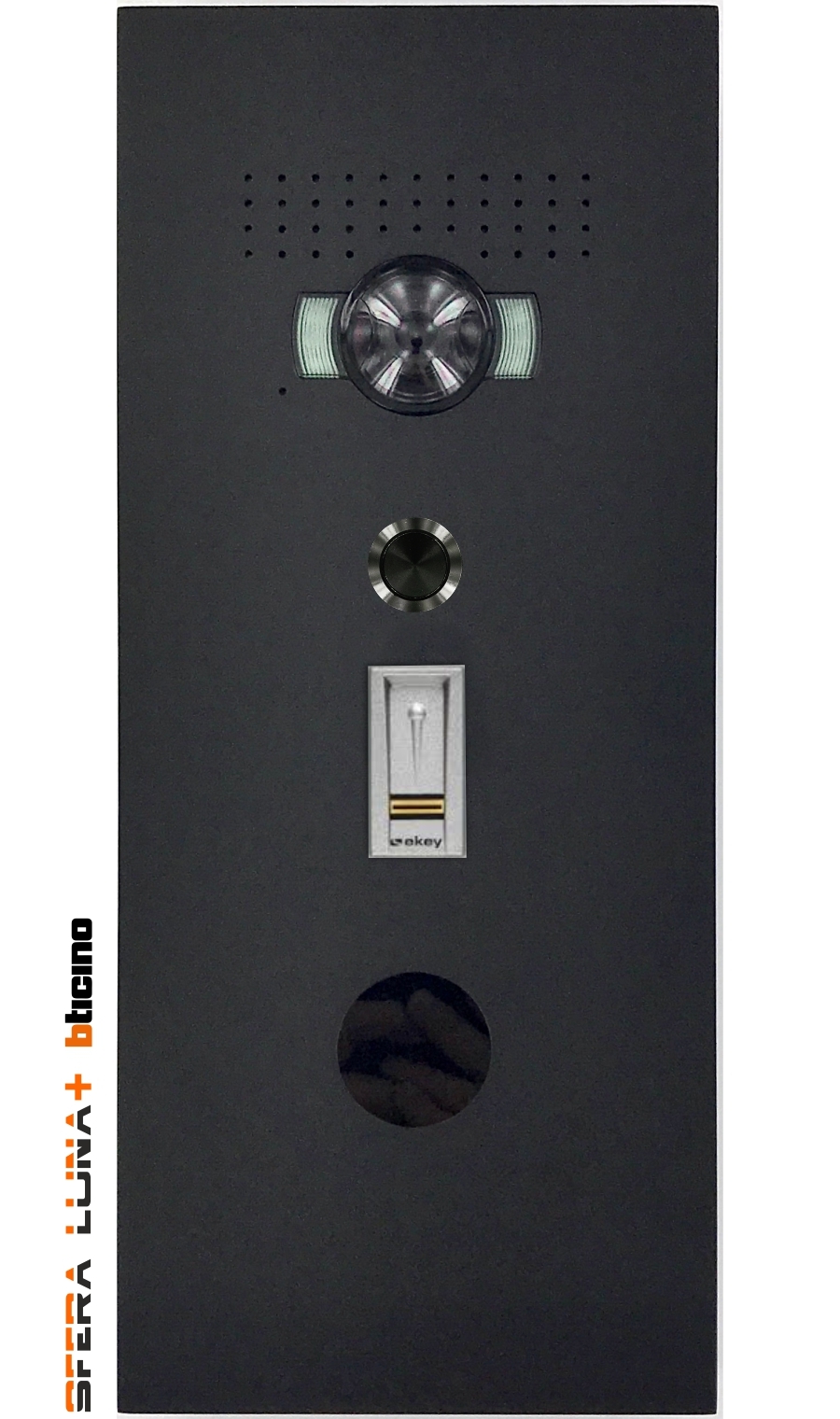

Video entry panel  SFERA LUNA with integrated fingerprint reader Ekey & Badgereader for Bticino outdoor unit 351300.

Standard installation on Bticino 350030 flush-mounted box.

These front panels are available in all ral colours to match with the ral colour of your residence or project.

• Made in 10mm aluminium, High End, solid finish.
• Central mounting system front panel. (easy blind mounting)
• Vandalism resistant.
• Installation possibilities: on walls, gates, columns, mailboxes, etc ...
• Easy installation in narrow surroundings.
• Model flush mounting on standard box Bticino 350030
• Unique recessed system for recessed gates, poles, etc. .....
• Also available with surface-mounted module.

Sfera Luna, partner of the Legrand Group (copyright model)

All Ral colours available

Dimensions: width 143mm x height 335mm

• 350030 - flush mouting box 3 modules Bticino

We supply:

1. Front panel entrance in ral colour
2. Modular panel frame + screws for installation on mounting box 350030 Bticino
3. 351305pkm - plexiglas for module 351300
4. 1 pushbutton black stainless steel, stainless steel or led
5. Installation module for Sfera fingerprint reader Ekey (BTE101310)
6. Plexi front for badge reader
7. 354000 videoparlofonie connection cable for functional modules

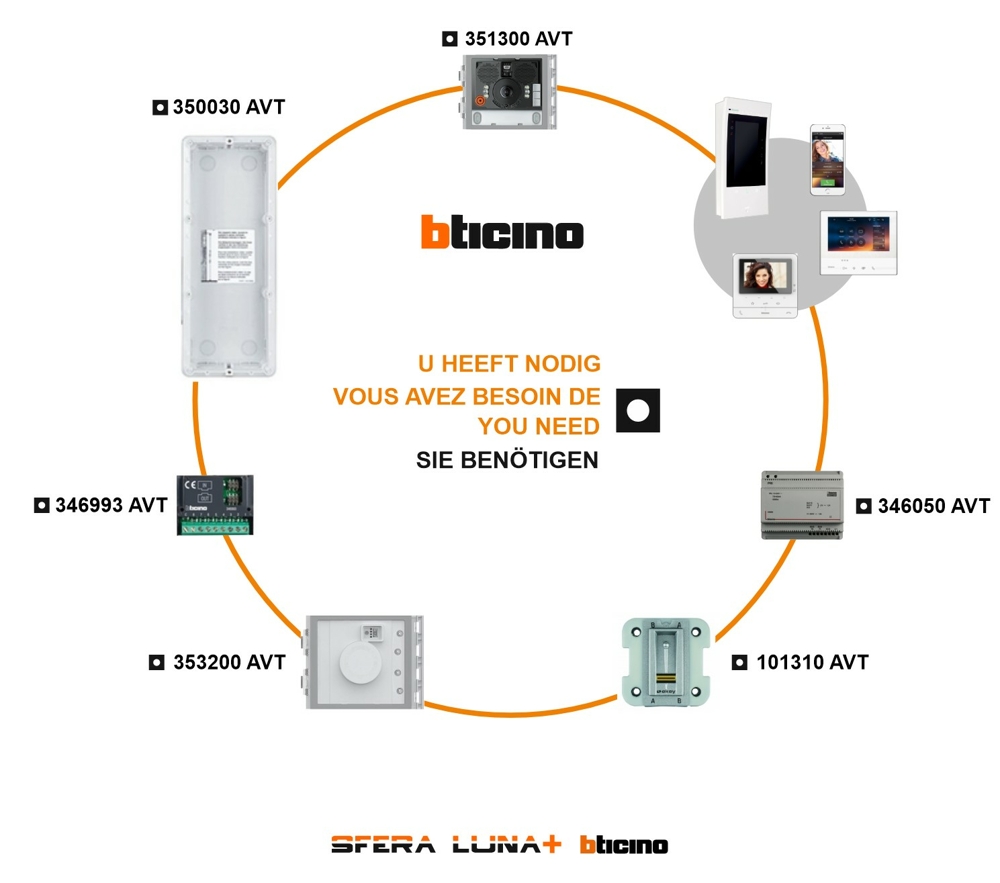

You need:

1. 350030 - flush-mounting box 3 modules
2. 351300 - Audio/video module with wide-angle lens
3. 346993 - interface sfera
4. BTE 101310 - Sfera fingerprint reader Ekey
5. 353200 Badge reader + badge keys 348200 1/2/3/4/5/6
6. 346050 - Power supply
7. Compatible with all Bticino indoor units: 100X16E or 300 X13E7 wifi-3/4G or MyHOME_UP 7" Hometouch (3488)
8. Preferably use REF 336904 twisted cable for the connection

    These Bticino components are available :

via the wholesaler
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made in Belgium

Sfera Luna (partner of the Legrand Group), copyright model.
