Video Parlofonie SFERA LUNA+3 Push-buttons Keypad High-End Bticino

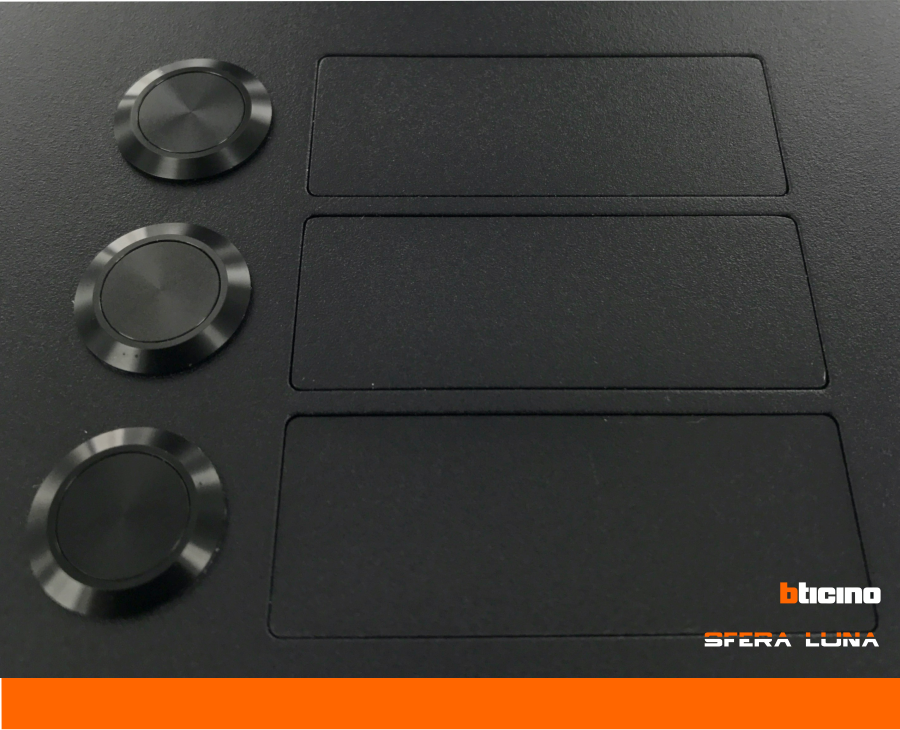

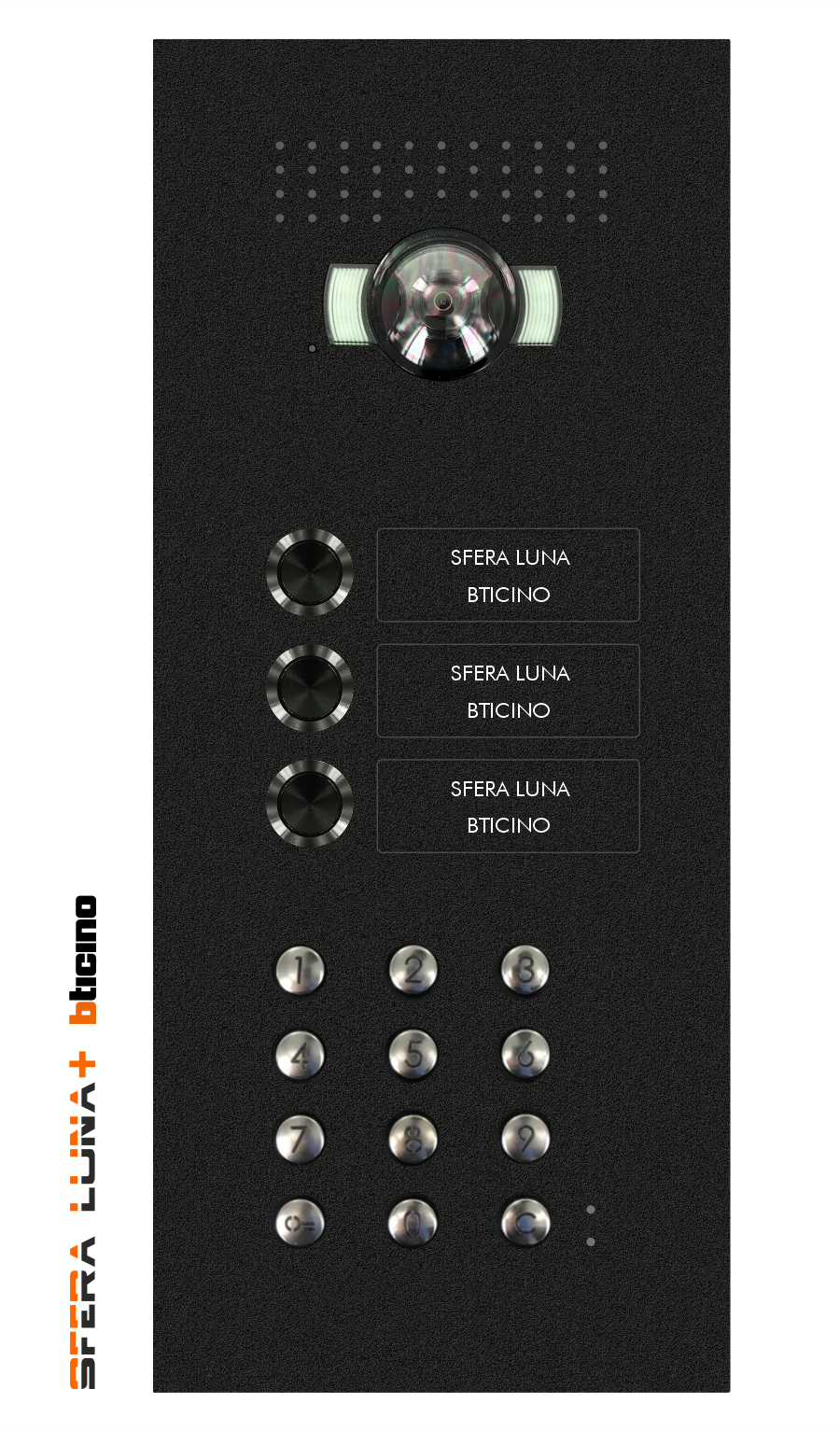

SFERA LUNA+ video entrace front panel with 3 removable name tags.

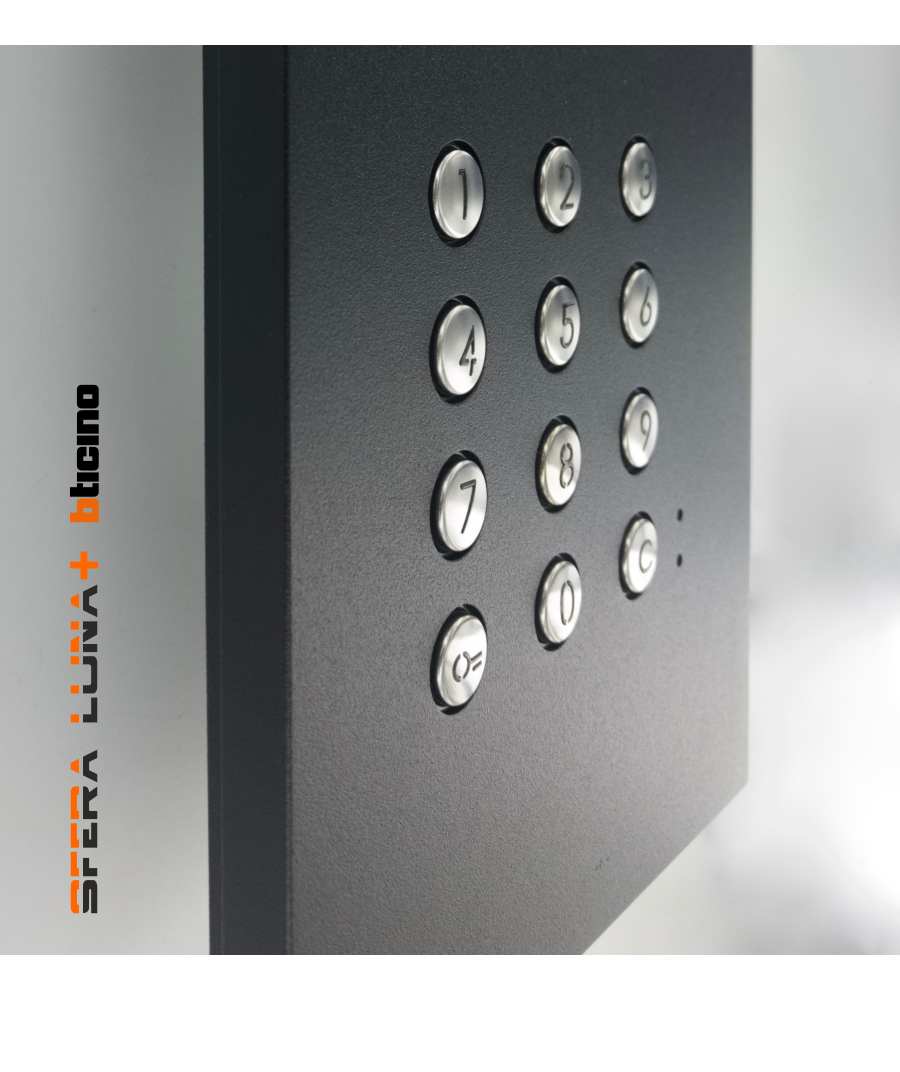

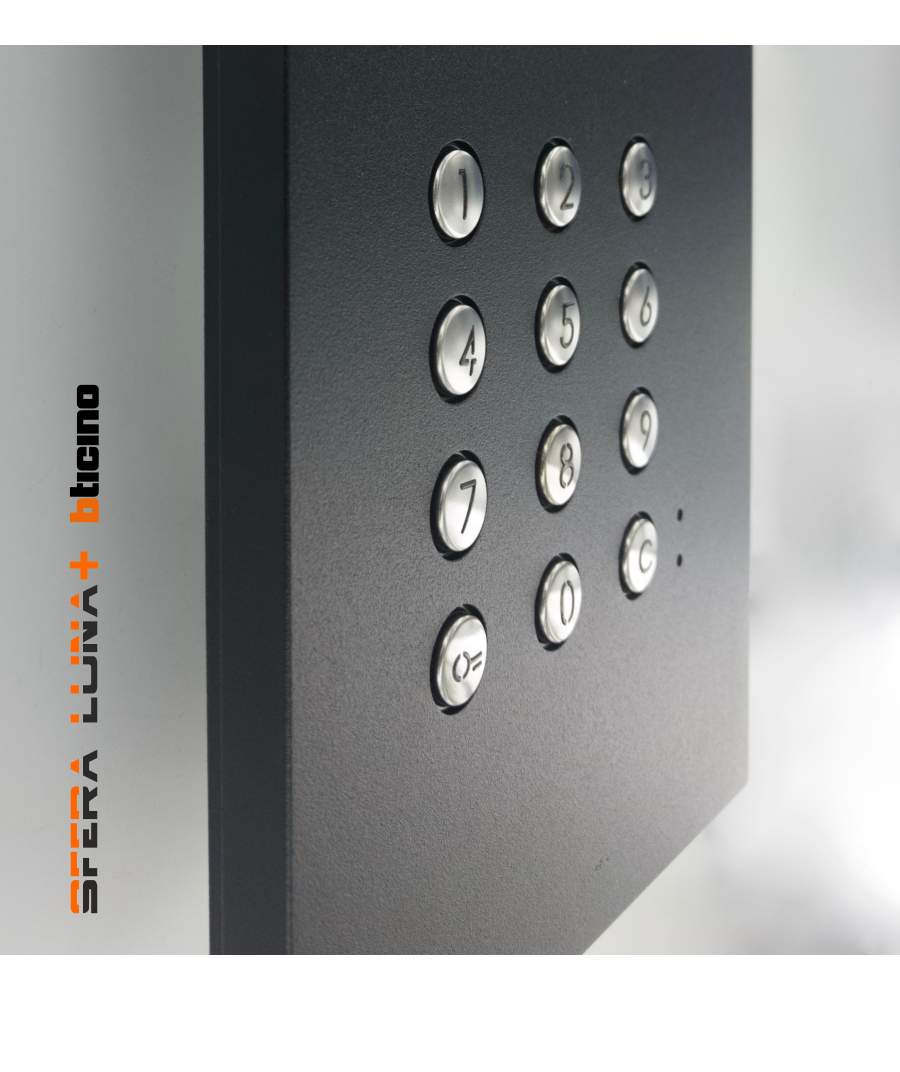

For Bticino wide angle audio/video 351300 or 351500 & keypad 353000 (LED illuminated).

Sleek high-end design at the entrance, vandal resistant ...

Design front panel as standard in colour black ral 9005 fine texture.

The front panels are available in all ral colors, matching the color of your residence or project.

• Made in 10mm aluminium, High End, solid finish.
• Central mounting system front panel. (easy blind mounting)
• Vandalism resistant.
• Installation possibilities: on walls, gates, columns, mailboxes, etc ...
• Easy installation in narrow surroundings.
• Model flush mounting on standard box Bticino 350030
• Unique recessed system for recessed gates, poles, etc. .....
• Removable name tag(s), easy to change with a unique invisible mounting system.
• The name tags can ben personalized or not, when ordering or later.
• Call pushbuttons for duo/trio home, flat or practice/private application.
• Also available with surface-mounted module.

Sfera Luna, partner of the Legrand Group (copyright model)

 All Ral colours available

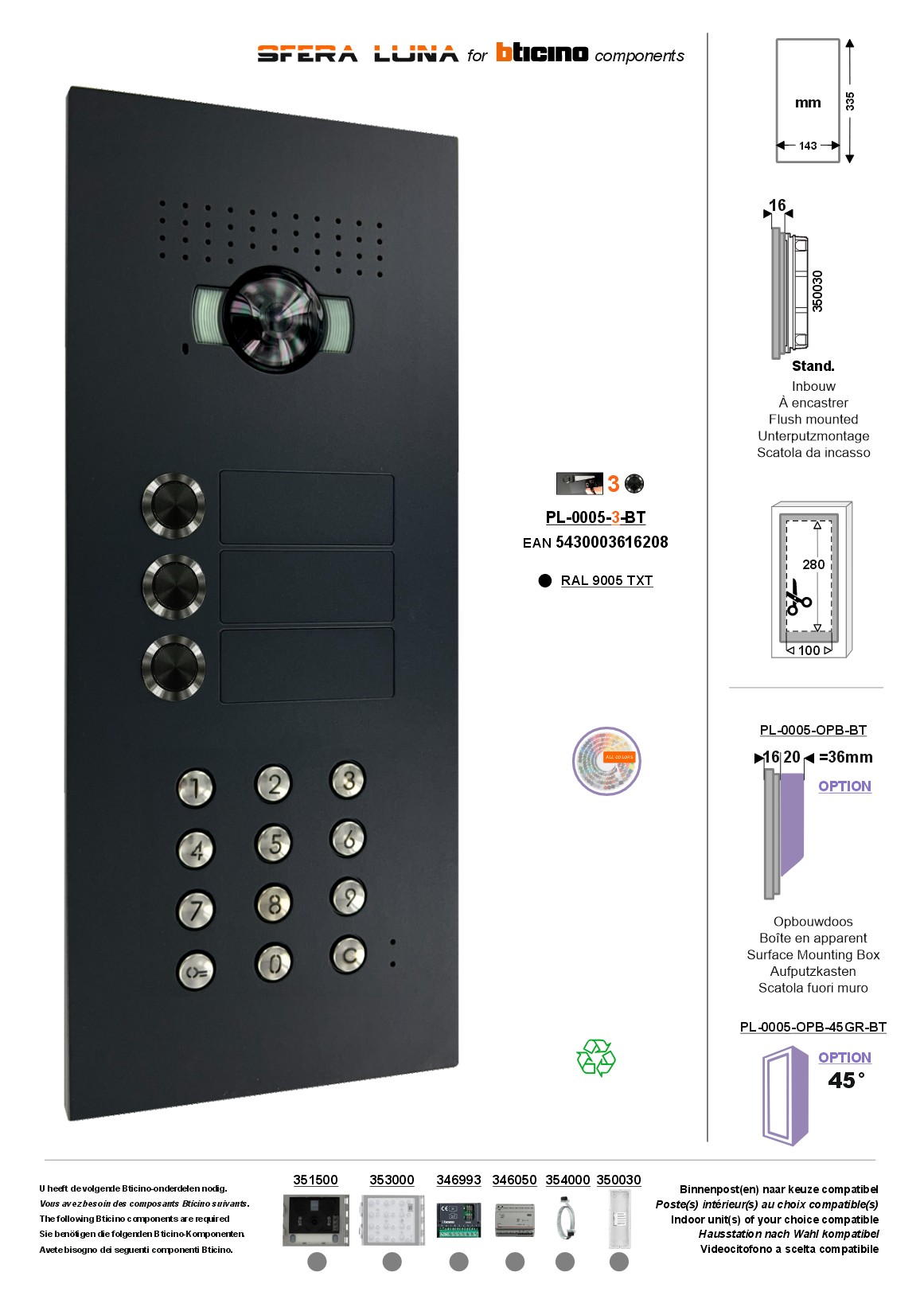

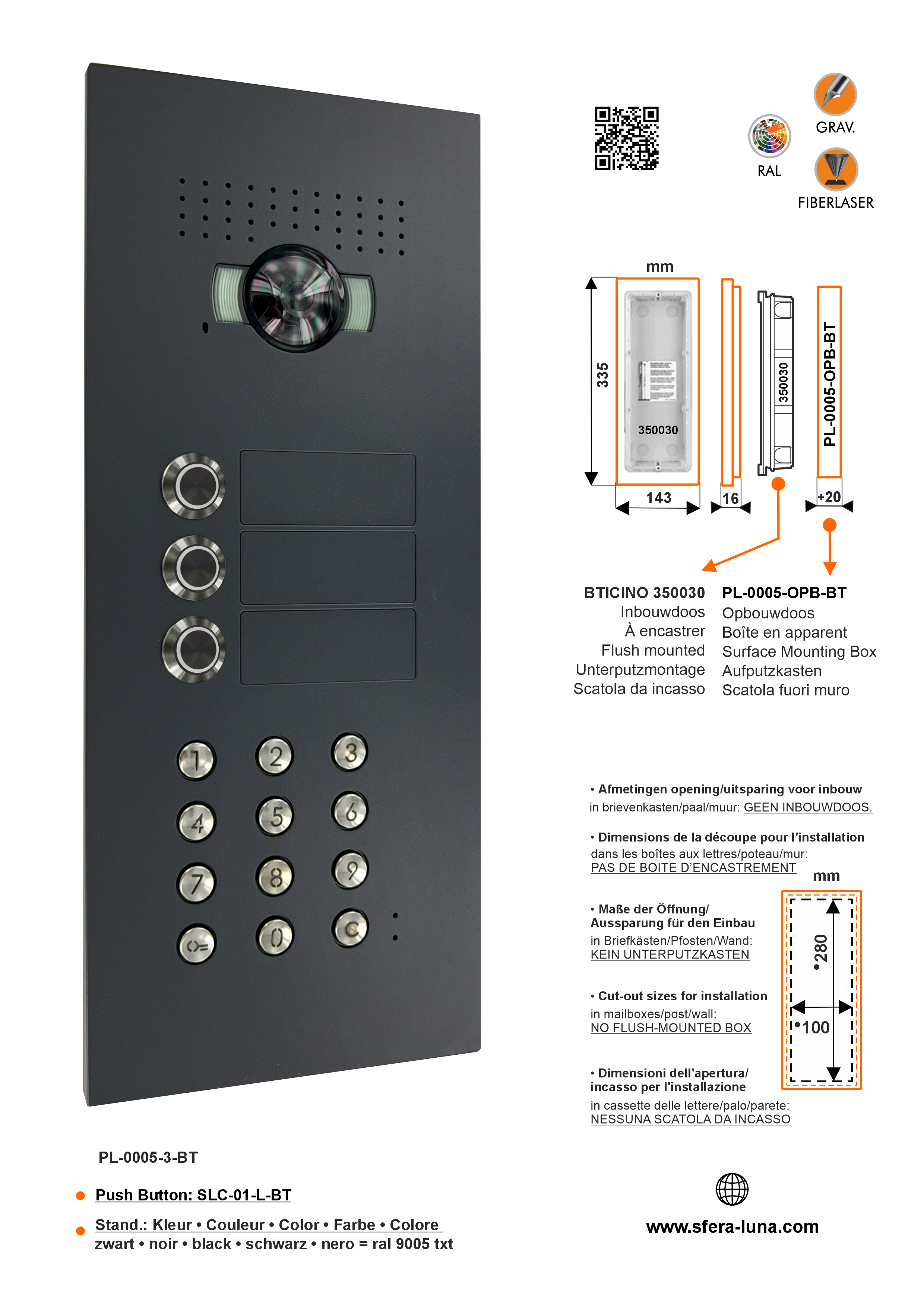

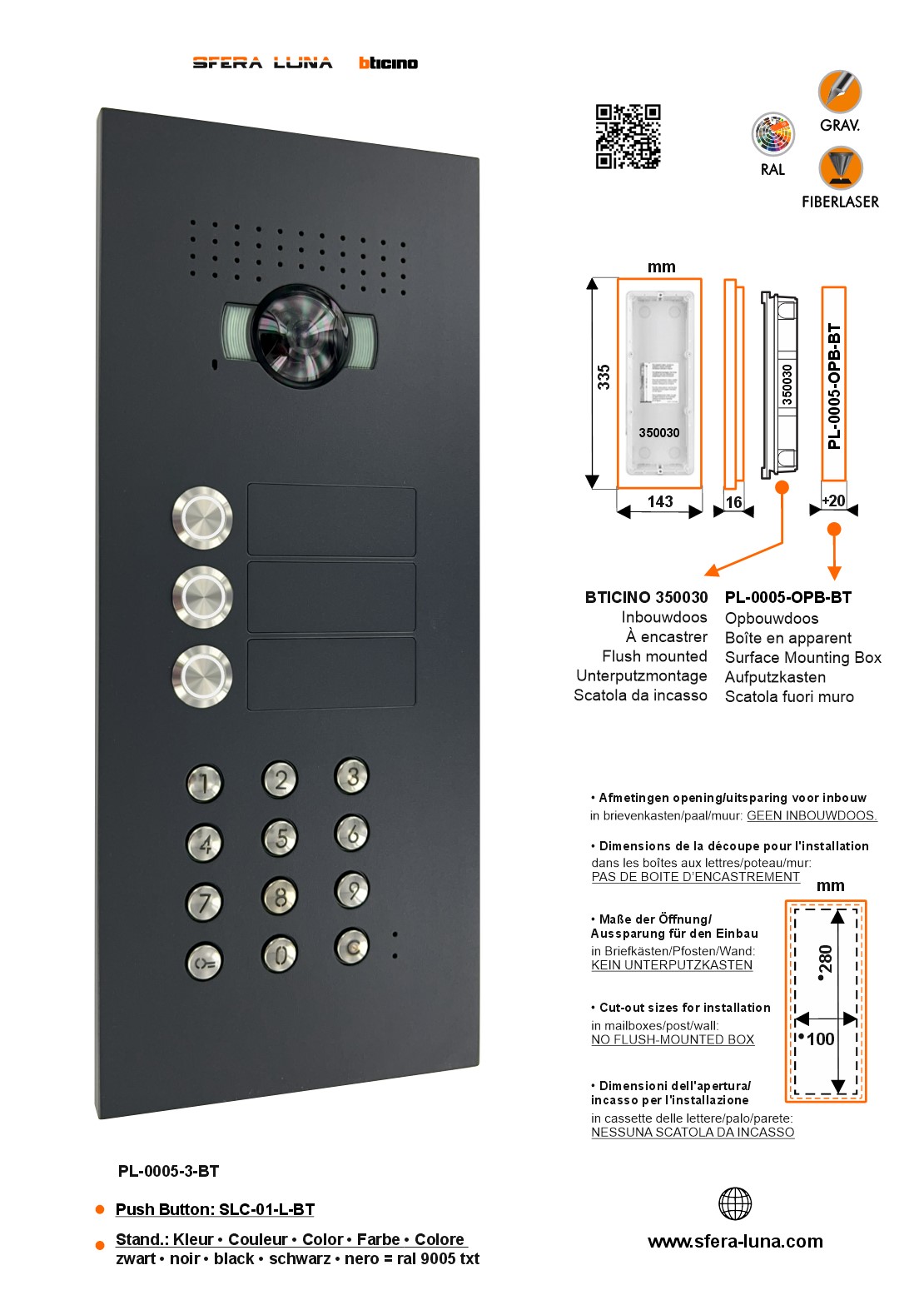

Dimensions: width 145mm x height 345mm

We supply :

1. Front panel entrance in ral colour
2. Modular panel frame + screws for installation on flush-mounting box 350030
3. 351305pkm - plexiglas for module 351300 = 351500
4. 353005pkm - plexi front panel keypad
5. 3 pushbuttons black stainless steel, stainless steel or led
6. 3 interchangeable name tags
7. Tool for mounting changeable name tags

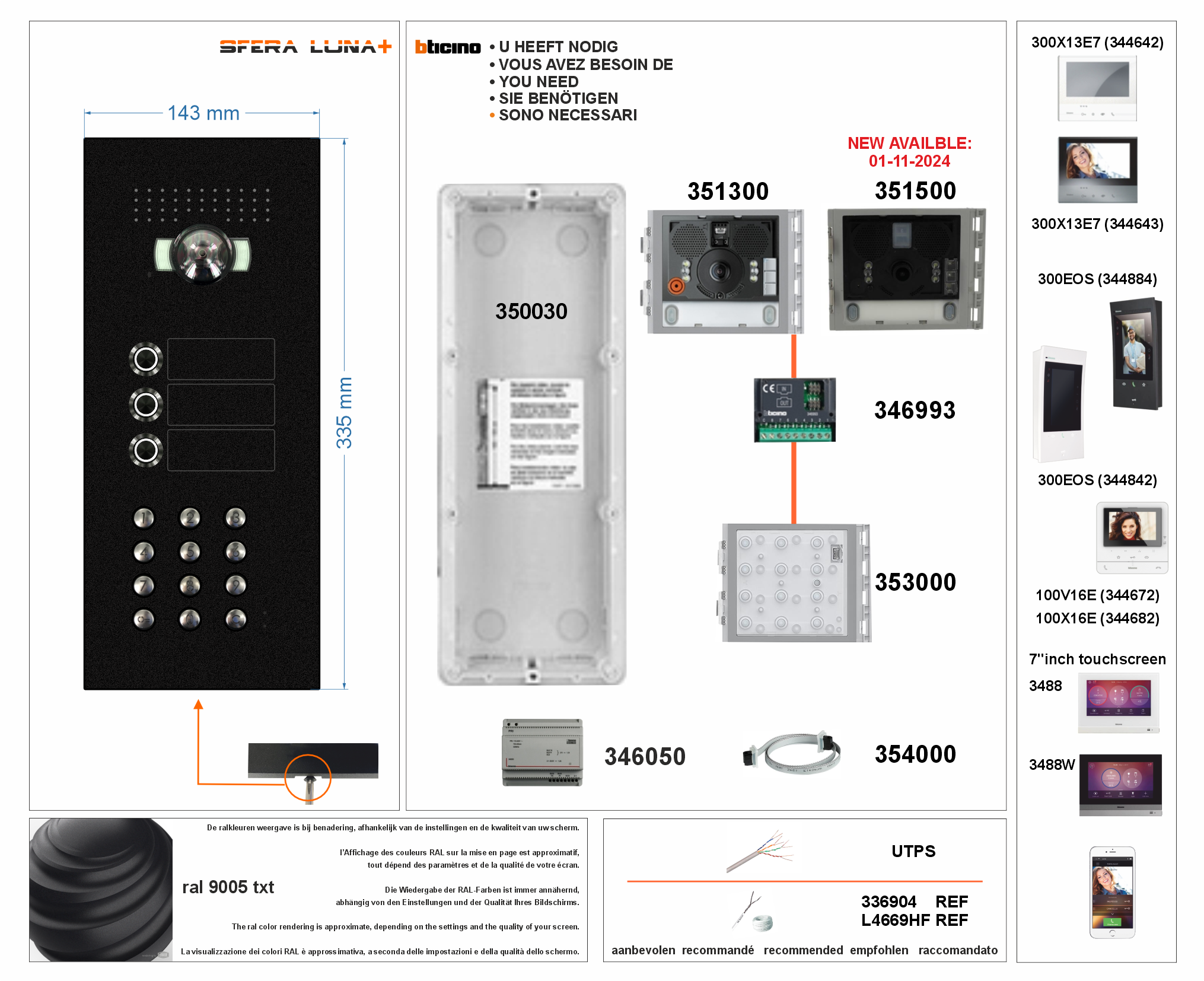

You need the following Bticino components:

1. 350030 - Flush-mounted box 3 modules
2. 354000 - videoparlofonie connection cable for functional modules
3. 351300 - Audio/video module with wide-angle lens
4. 353000 - Keypad LED illuminated
5. 346993 - Interface Sfera
6. 346050 - Power supply
7. 306064 - Config. set
8. Preferably use REF 336904 twisted or UTPS cable for the connection
9. Compatible with all Bticino Indoor units: preferred: 100X16E (344682) or 300EOS (344842)

    These Bticino components are available :

via the wholesaler
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores

 Create your personal videophone with our editor order form.

• Combine your combination(s) into an original concept!
• Real time display. The rendering will always be optimized by our typographer / graphic artist.
• The order form is already preset and indicated in blue like the photo shown in our webshop.

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made in Belgium

Sfera Luna (partner of the Legrand Group), copyright model.
