SFERA LUNA+4 Call Buttons Videophone High-End Entry Panel Bticino
Product Code : PL-0005-4-BT- EAN: 5430003616000

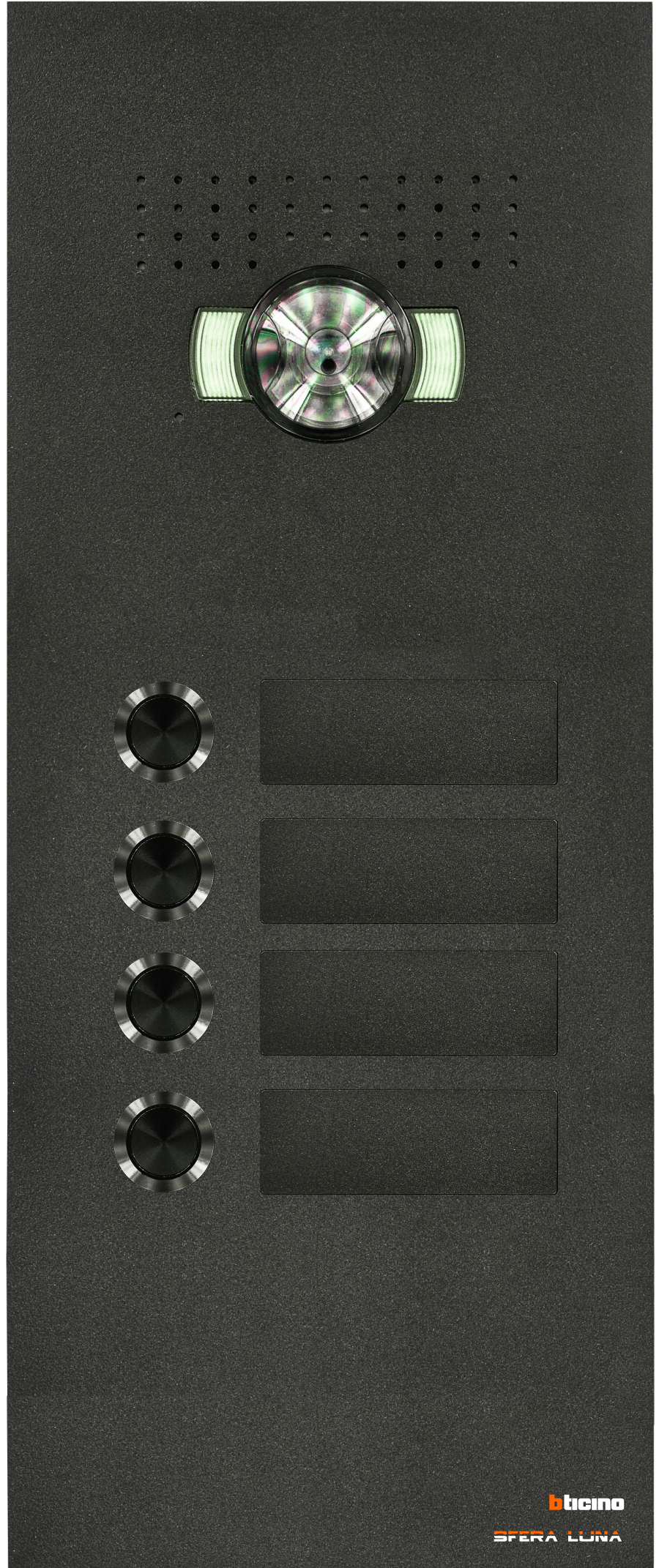

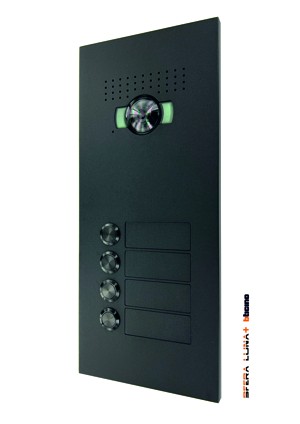

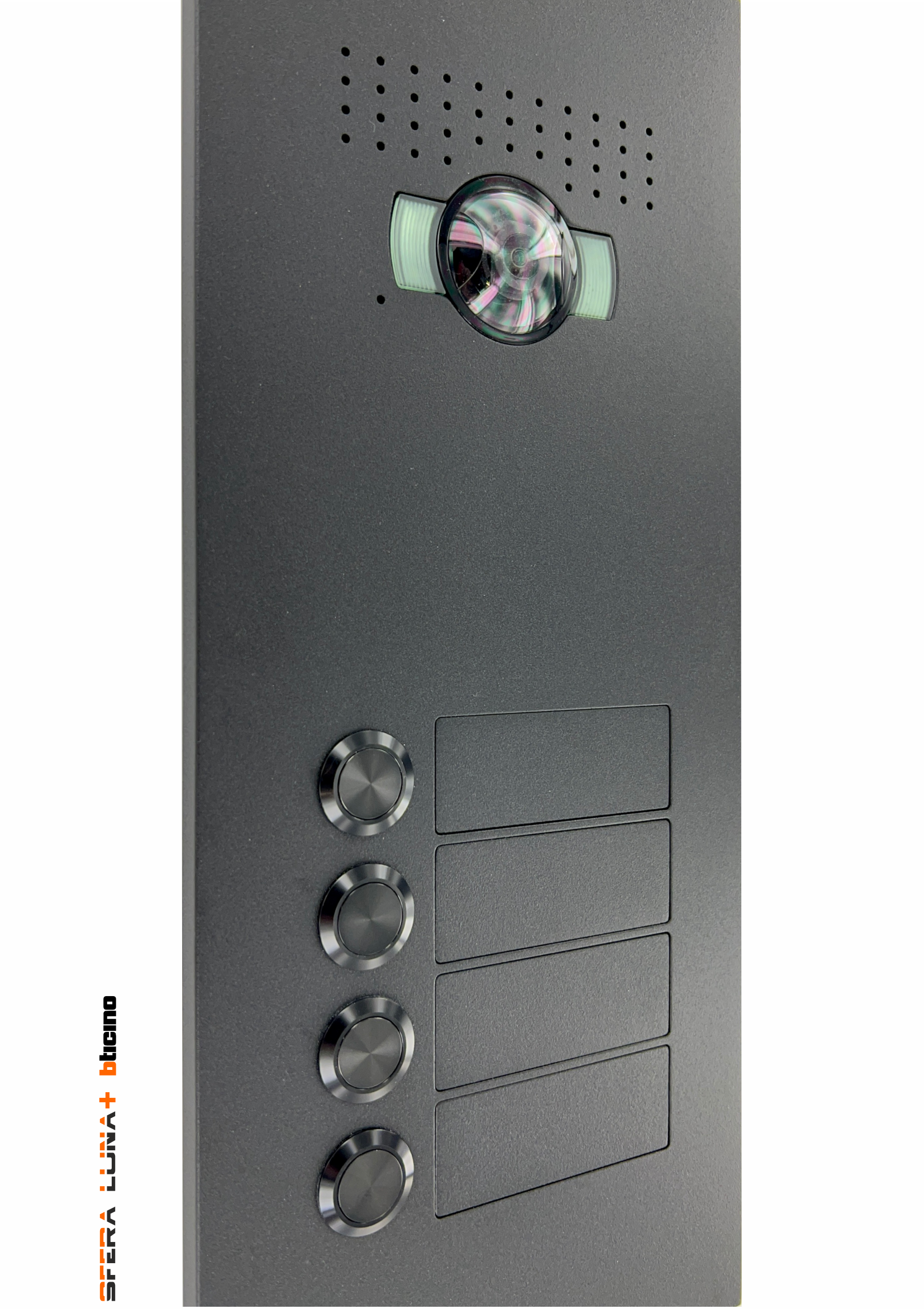

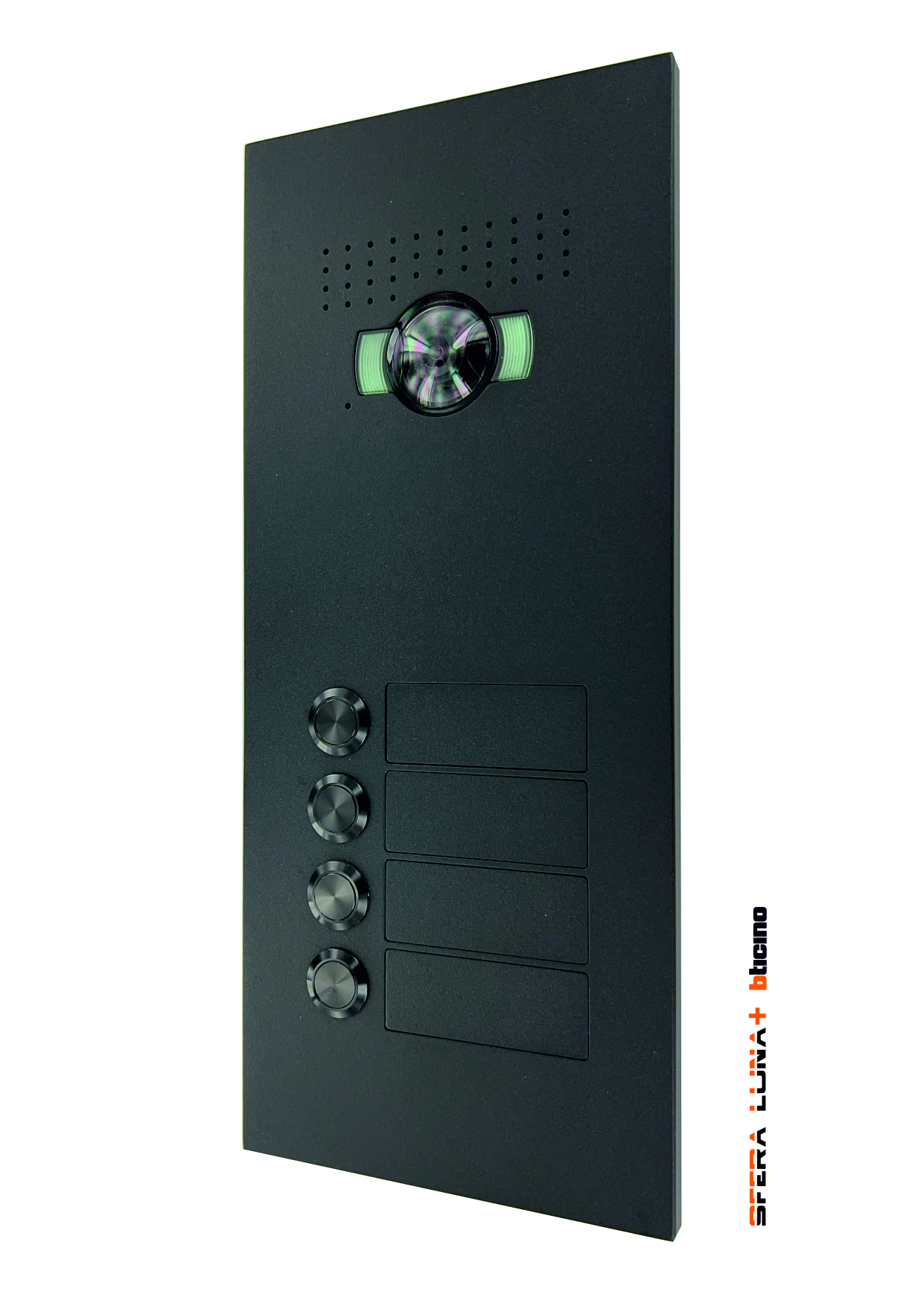

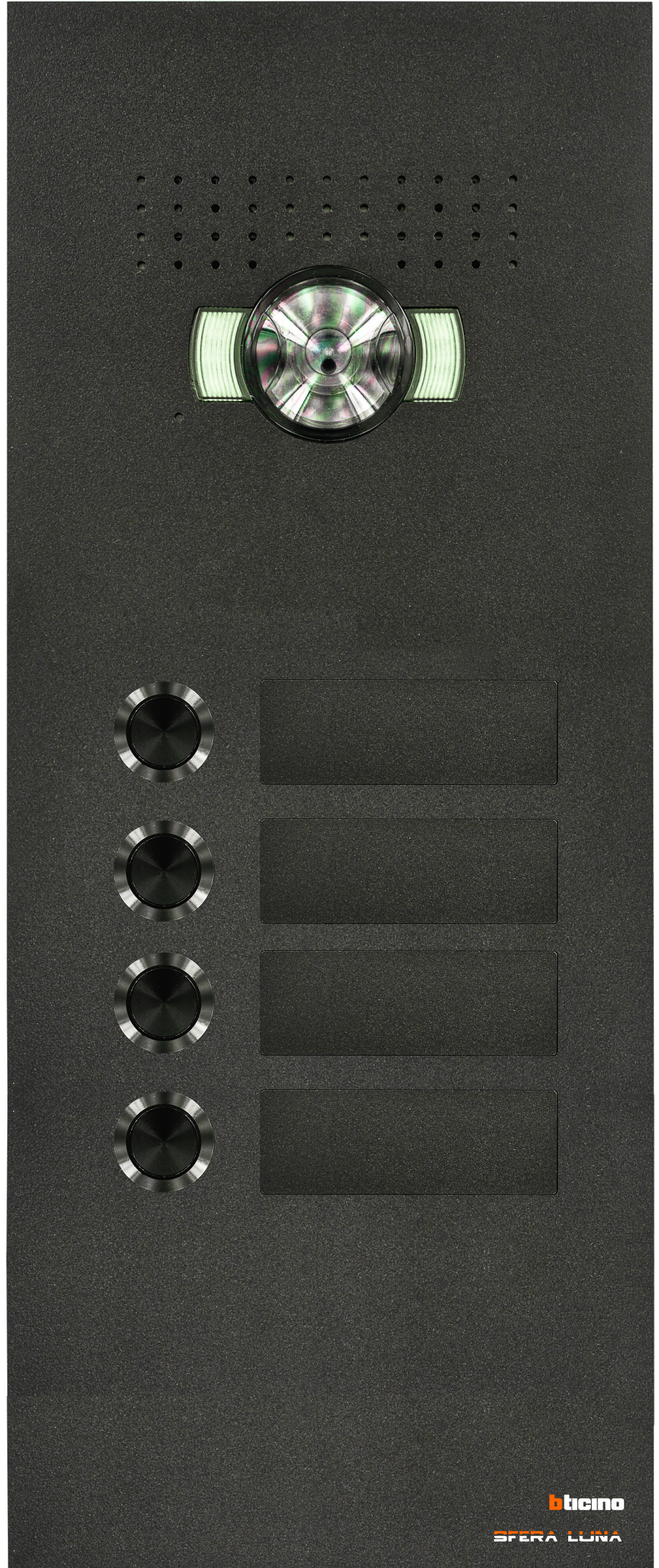

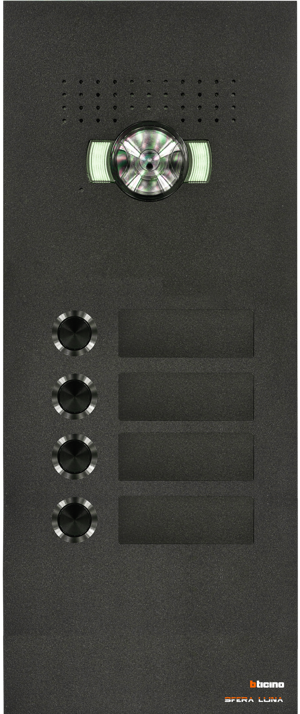

Videophone front entry panel SFERA LUNA+4 for Biticino wide angle audio/video 351300 or 351500.
Sleek high-end design at the entrance of your residence / apartment ...
A four way call button system, vandal resistant.
Standard installation on Bticino 350030 flush-mounted box.
The front panels are available in all ral colors, matching the color of your residence or project.
- 4 call pushbuttons (stainlesssteel or black or led lighted)

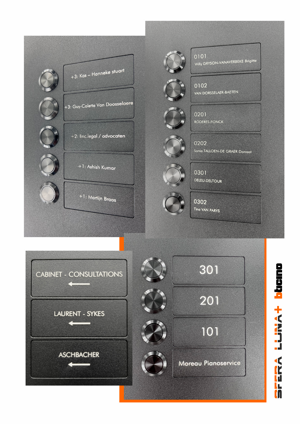

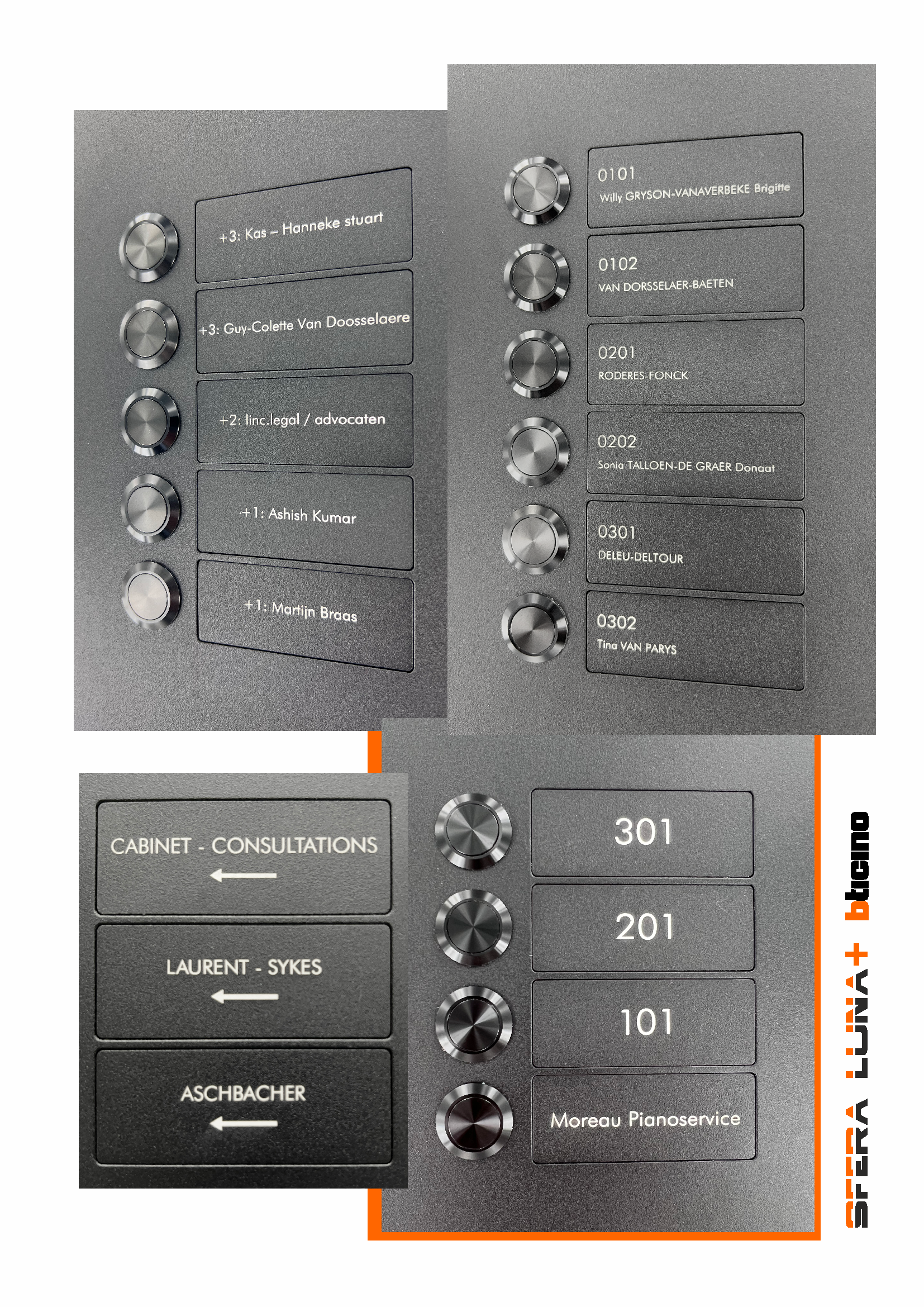

- 4 interchangeable name tags, easy mounting with unique invisible mounting system

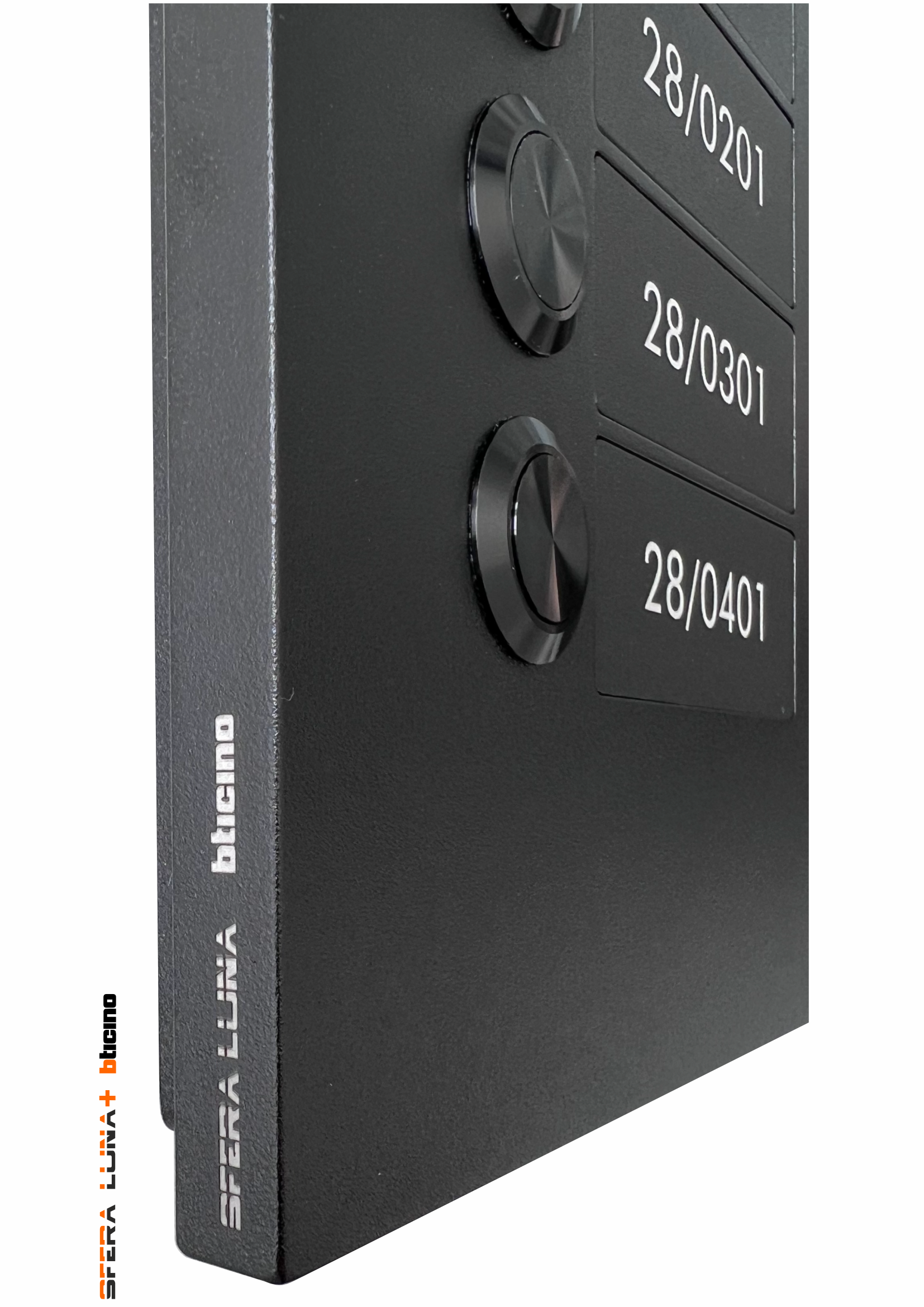

- Produced in 10mm aluminium, High End, Solid finishing.
- Central mounting system front panel. (Simple blind mounting)
- Vandalism resistant. (IP54 - IK08)
- Installation possibilities: on walls, gates, poles, mailboxes, etc ...
- Removable name tag can be personalized or not.
- Easy installation in narrow environments
- Unique flush-mounting system for recessed gates, poles, etc. .....
- Model flush mounted on standard box Bticino 350030

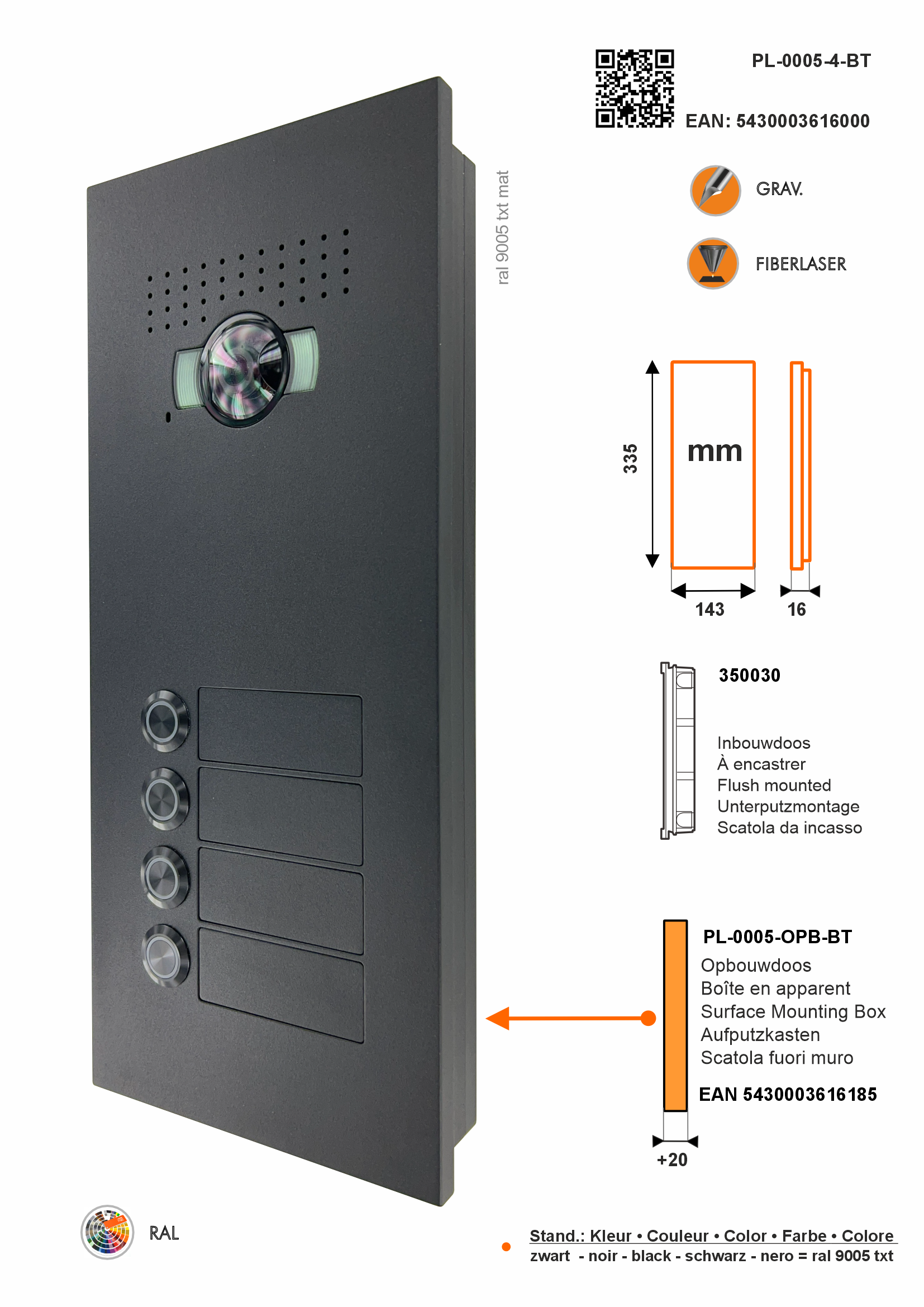

- Also available with surface-mounted module.
Sfera Luna, partner of the Legrand Group (copyright model)
SFERA LUNA DOCUMENTS
All Ral colours available

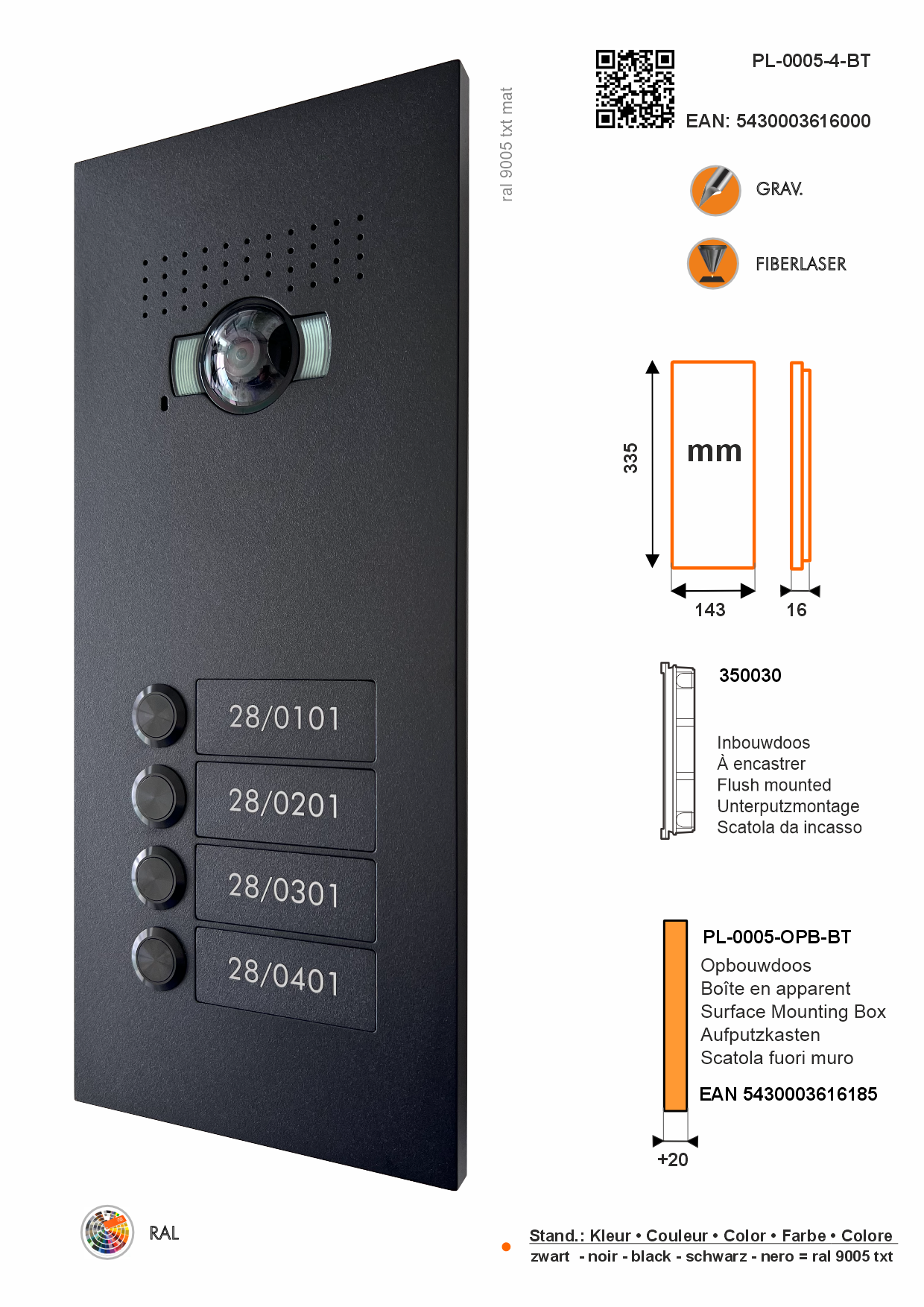

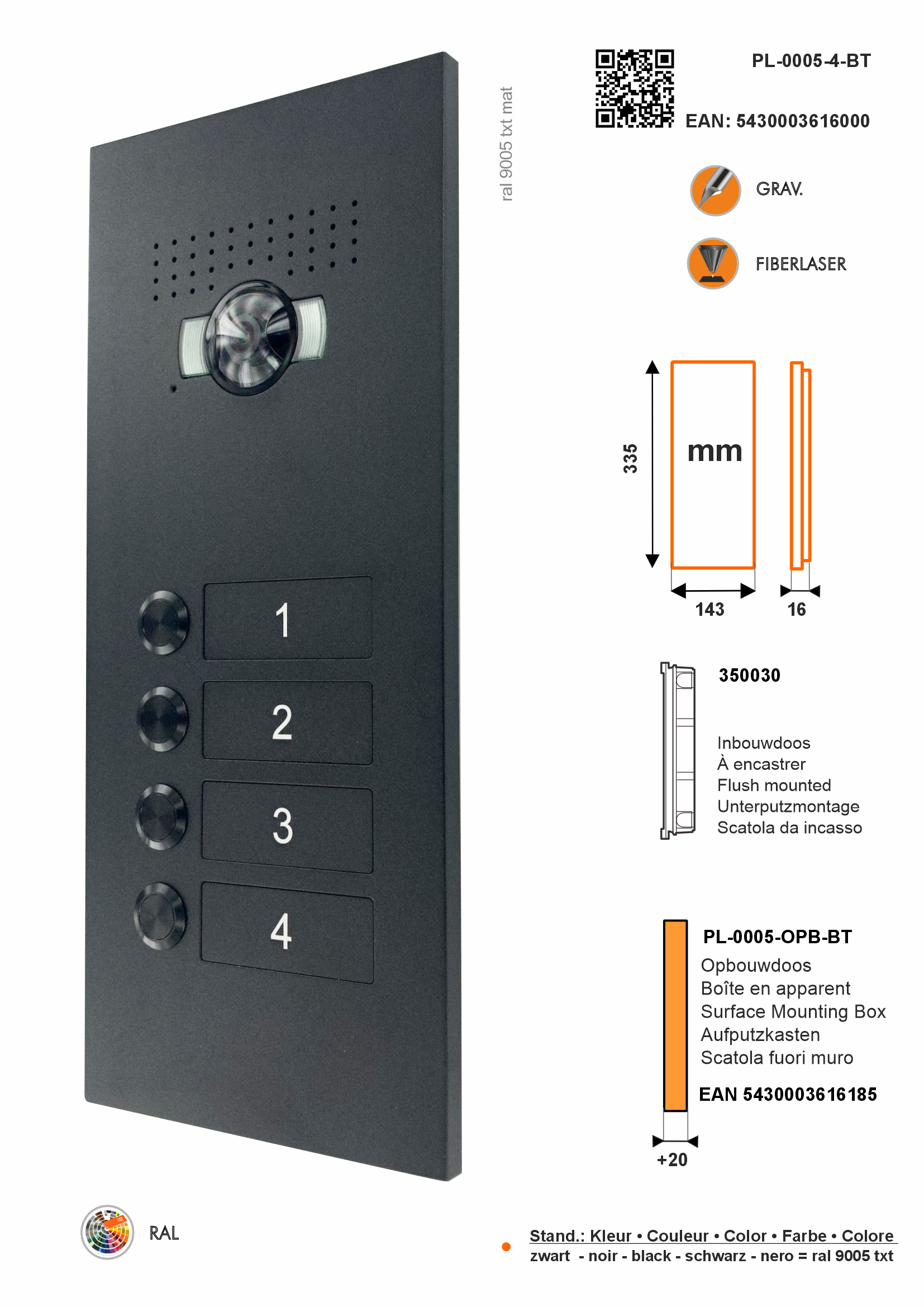

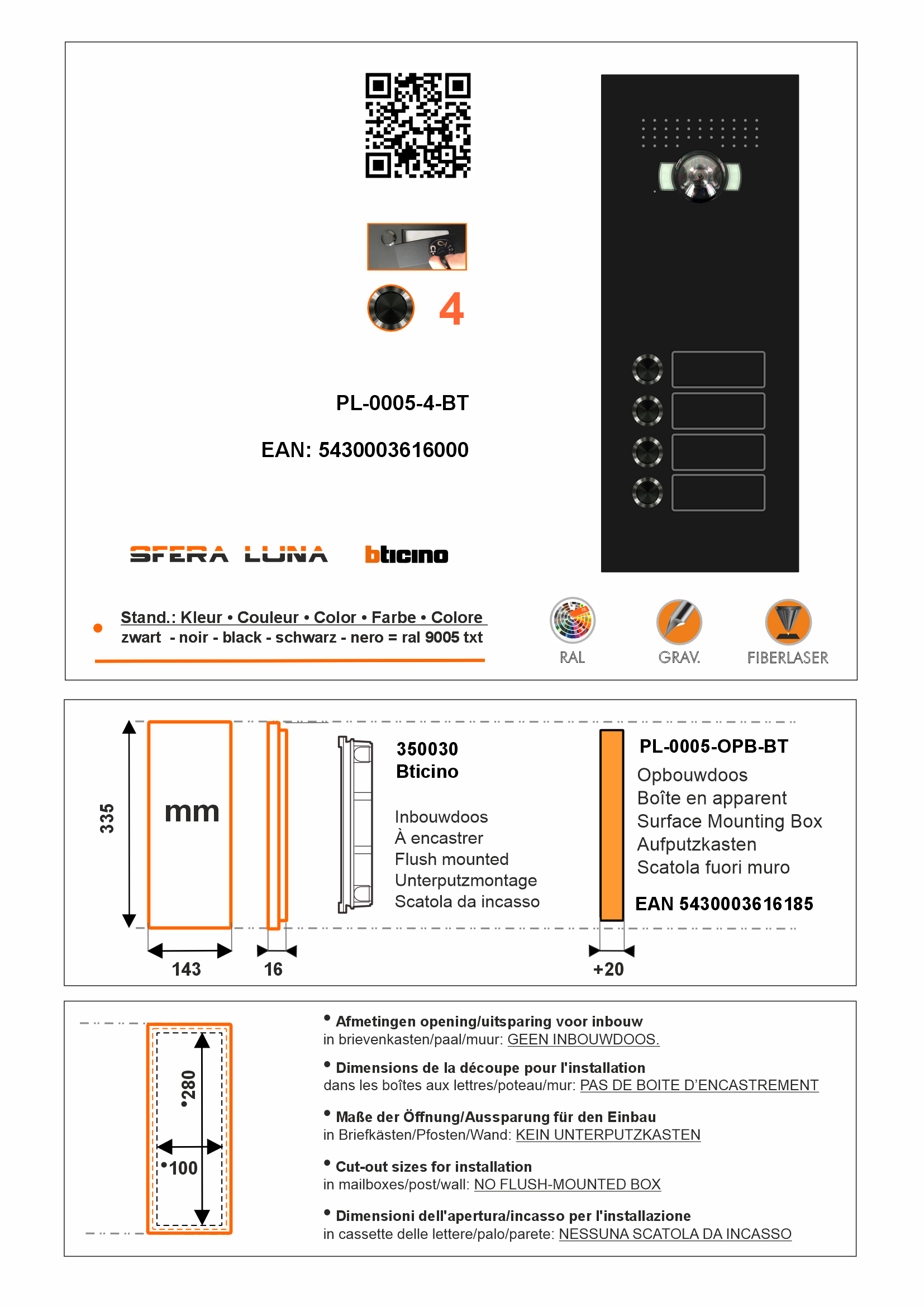

Dimensions : width 143mm x height 335mm
We supply :
- Front panel entrance in ral color. (IP54 - IK08)
- Modular panel frame + screws for installation on flush-mounting box 350030
- 351305pkm - plexiglas for module 351300 = 351500
- 4 pushbuttons (integrated) black stainless steel, stainless steel or led (IP67 - IK08)
- 4 interchangeable name tags (IP67)
- Tool for mounting interchangeable name tags

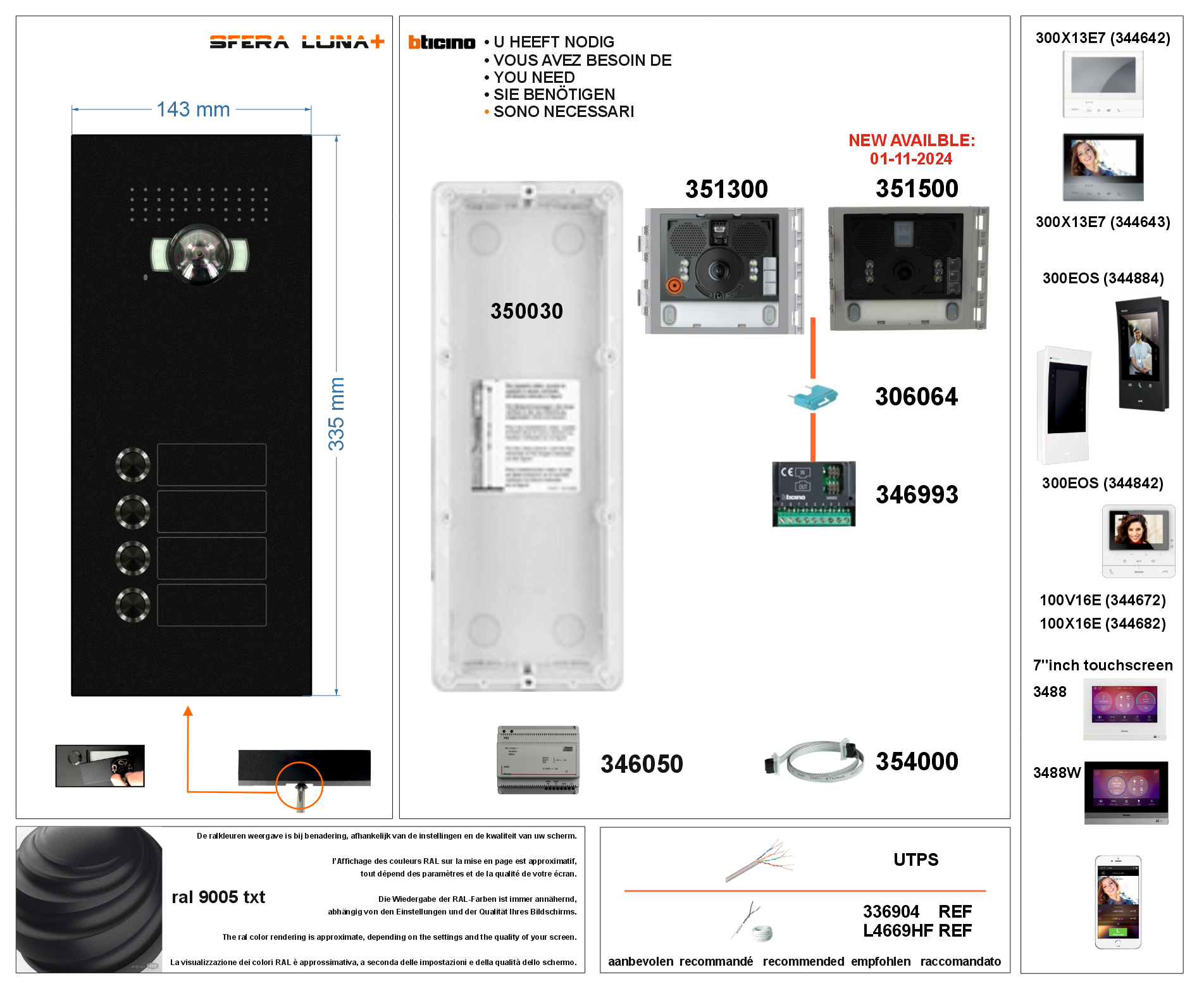

You need Bticino:
- 350030 - Flush-mounting box 3 modules
- 354000 - Videoparlofonie connection cable for functional modules
- 351300 or 351500 - Audio/video module with wide-angle lens
- 346993 - Interface Sfera (up to 8 call buttons possible)
- 346050 - Power supply
- 306064 - Config. set
- Compatible with all Bticino indoor units: Class 100X16E (344682) or Class 300EOS (344842) or MyHome_UP 7" Hometouch (3488)
- Preferably use twisted cable ref 33906 or UTPS for the connection
