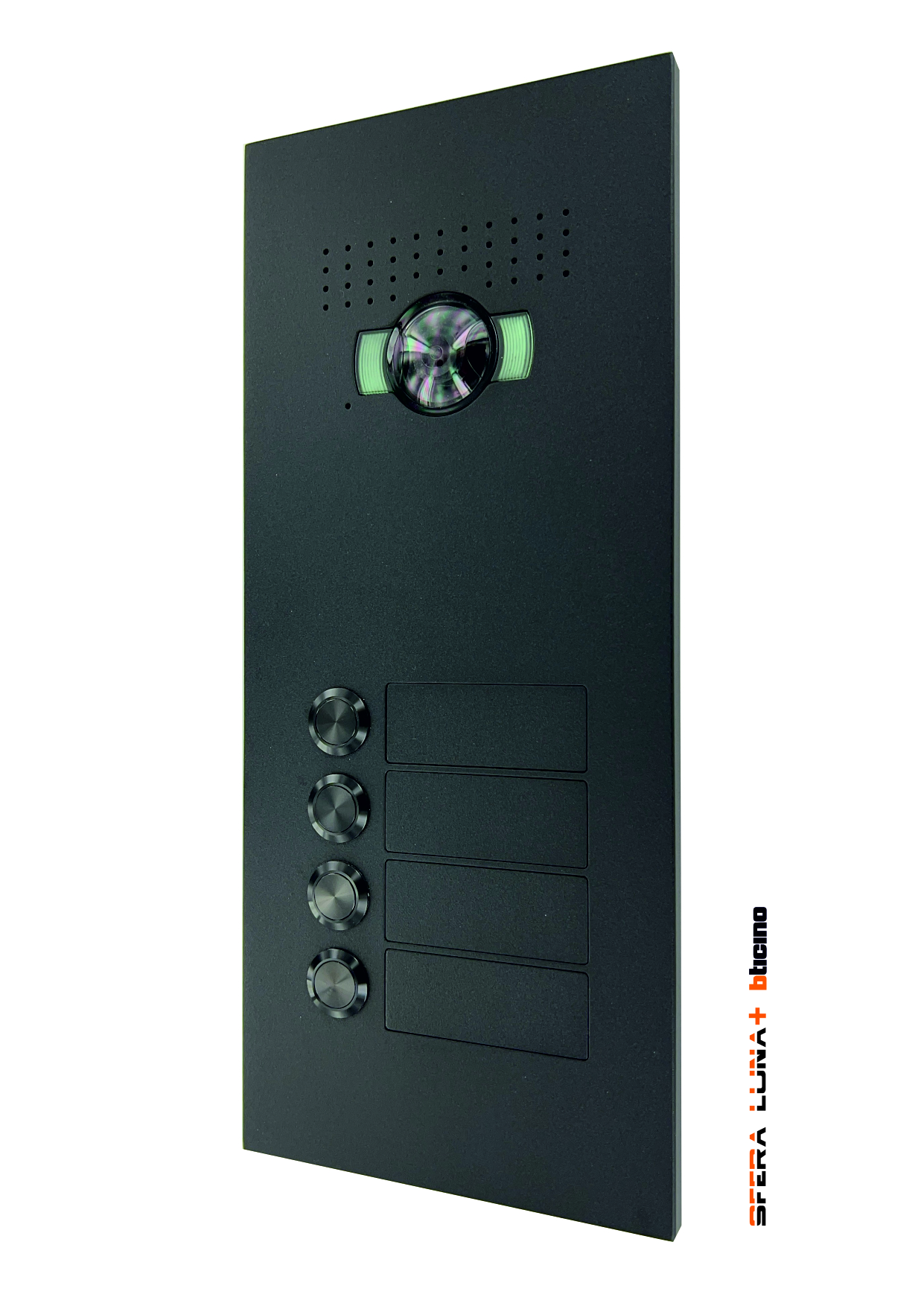

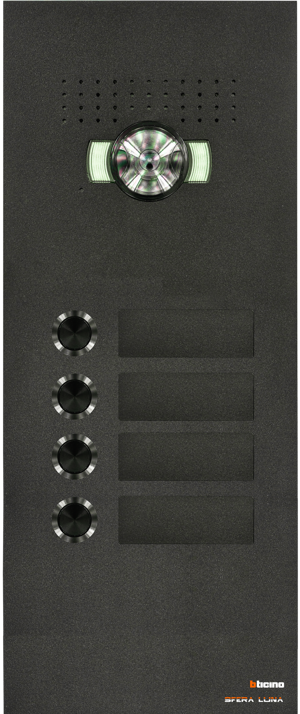

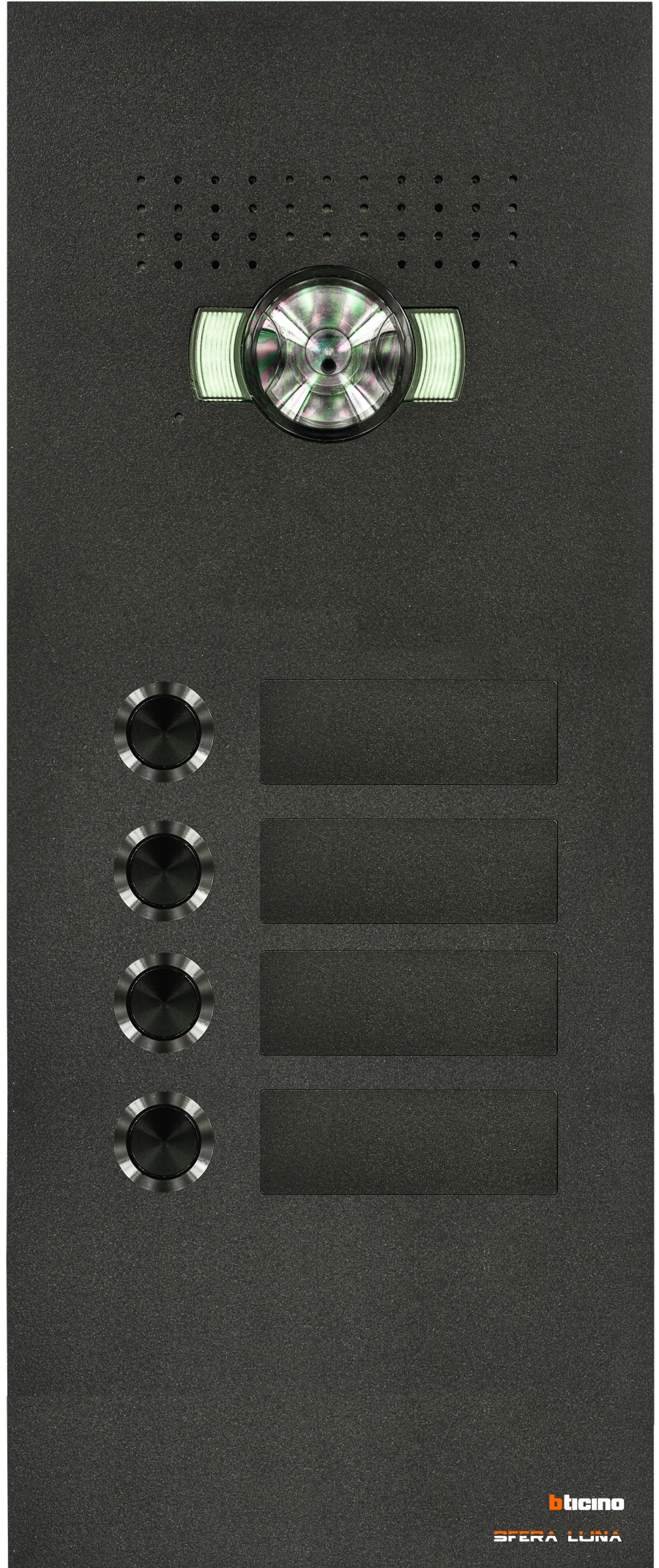

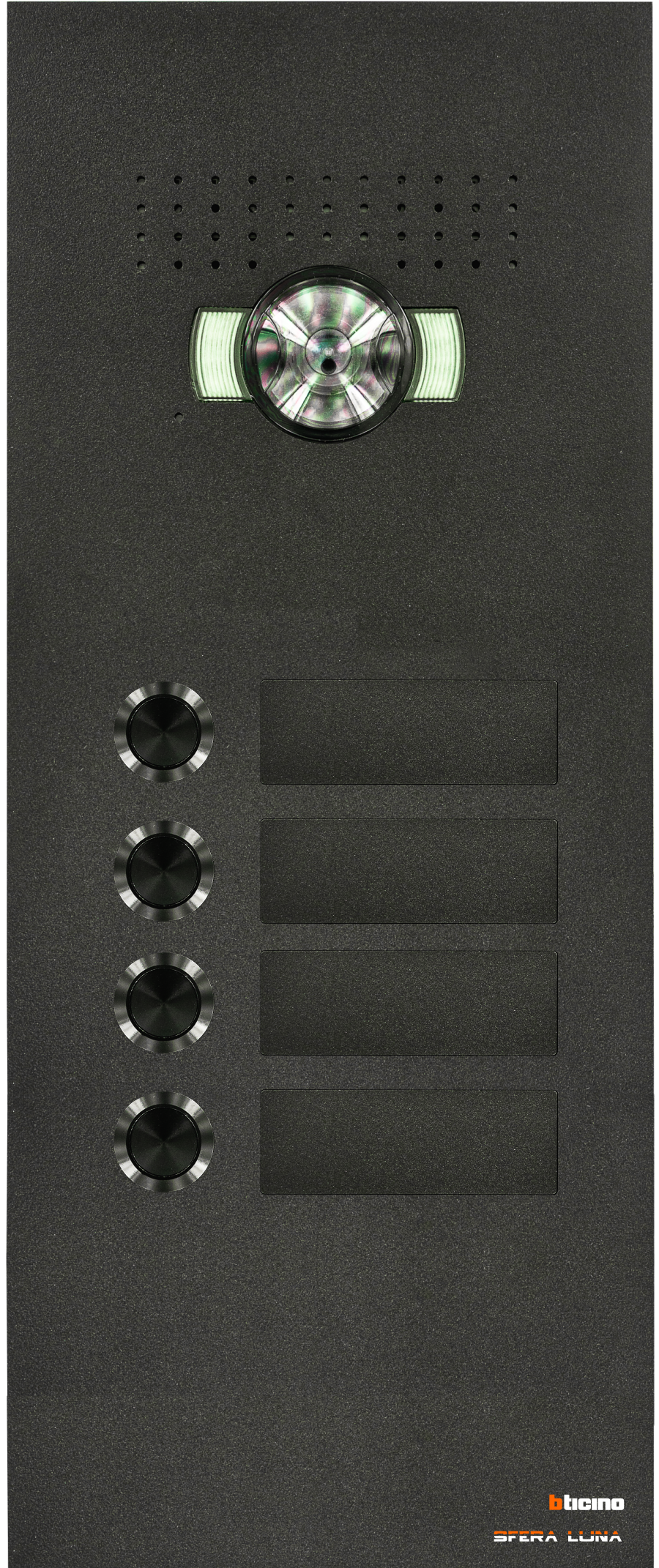

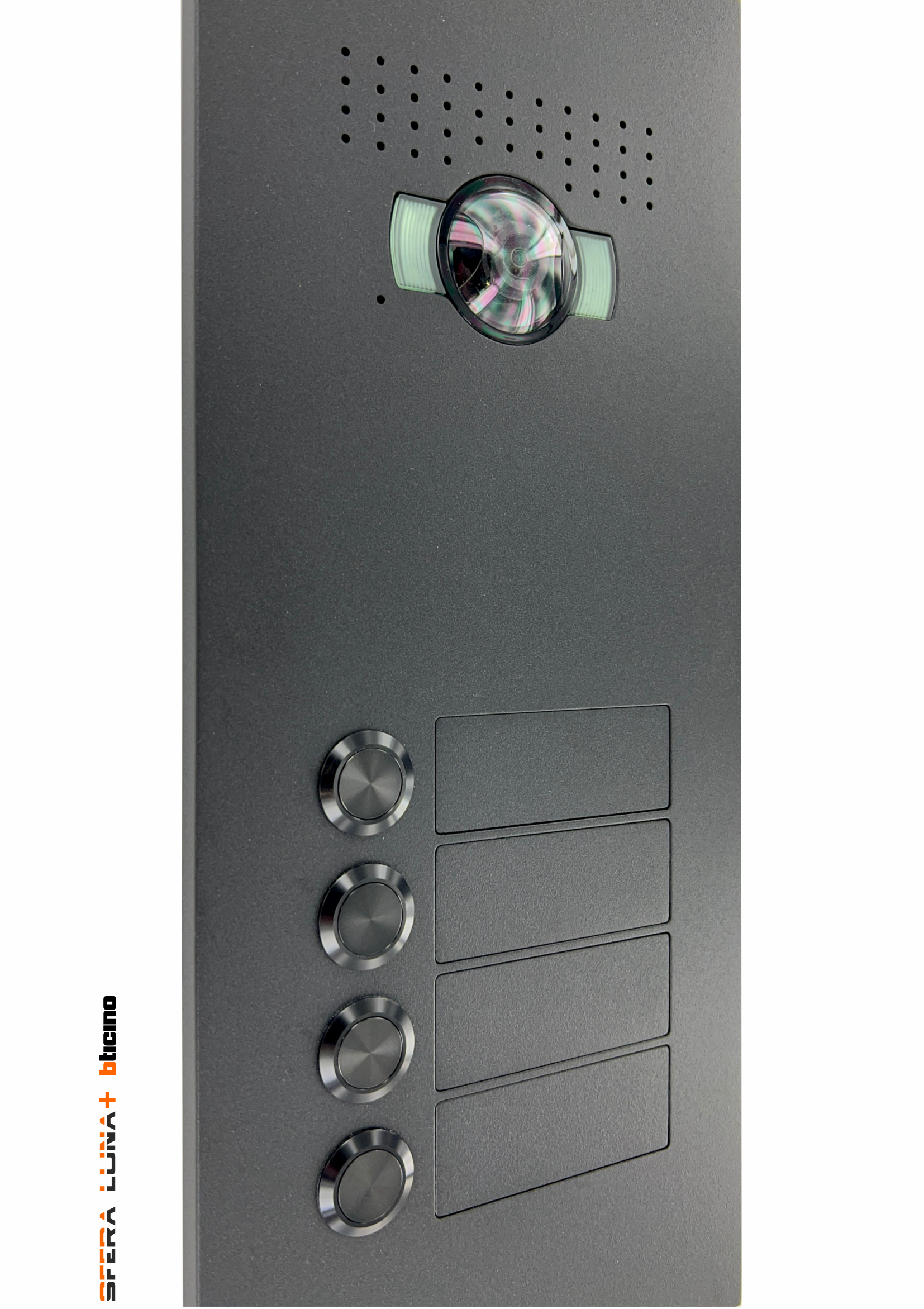

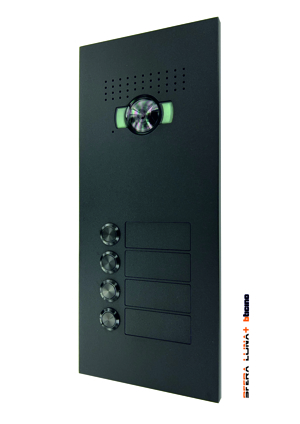

SFERA LUNA+4 Call Buttons Videophone High-End Entry Panel Bticino

Videophone front entry panel SFERA LUNA+4 for Biticino wide angle audio/video 351300 or 351500.

Sleek high-end design at the entrance of your residence / apartment ...

A four way call button system, vandal resistant.

Standard installation on Bticino 350030 flush-mounted box.

The front panels are available in all ral colors, matching the color of your residence or project.

• 4 call pushbuttons (stainlesssteel or black or led lighted)

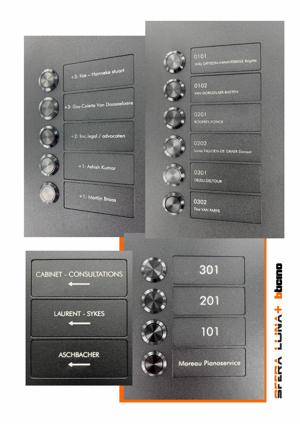

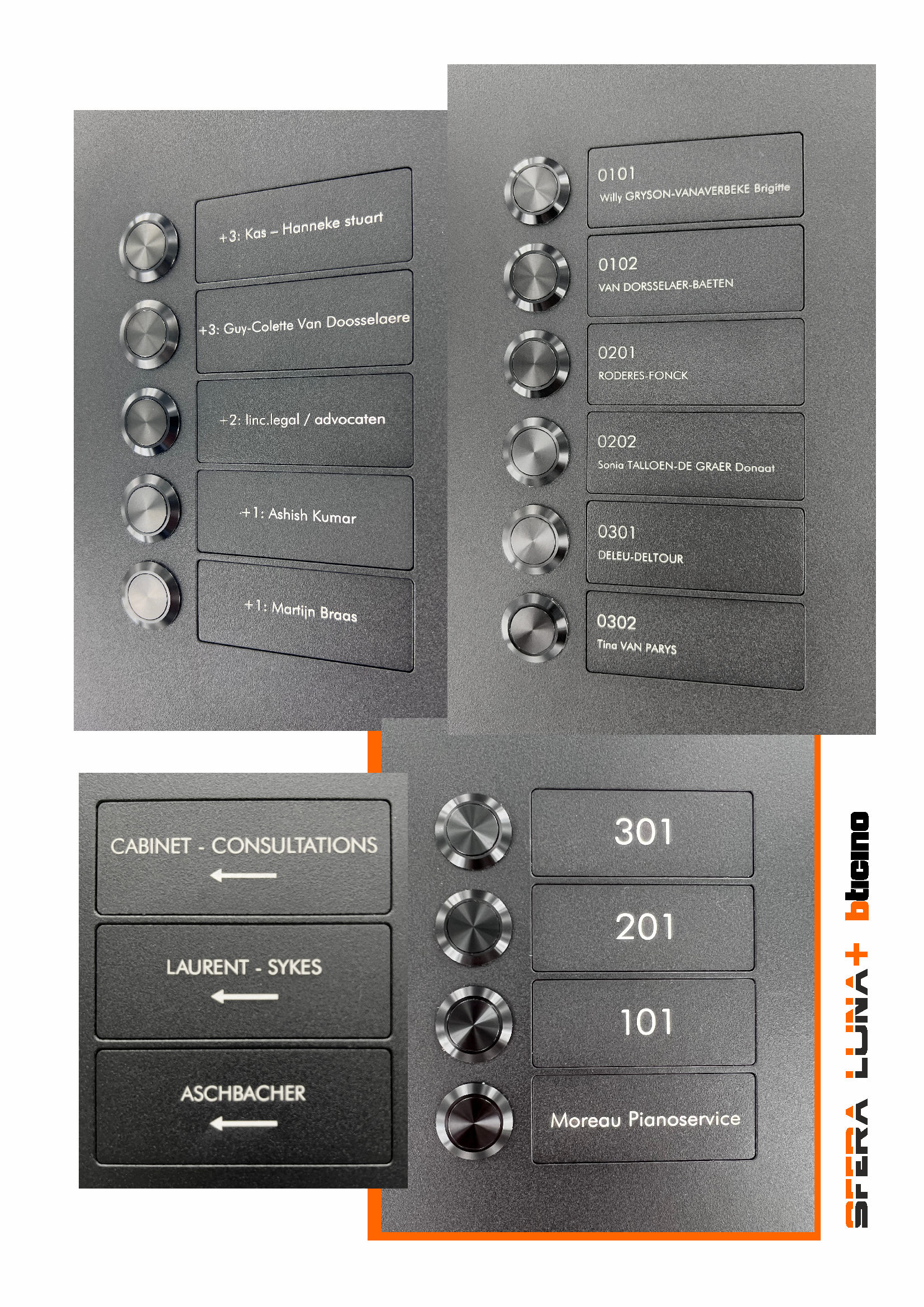

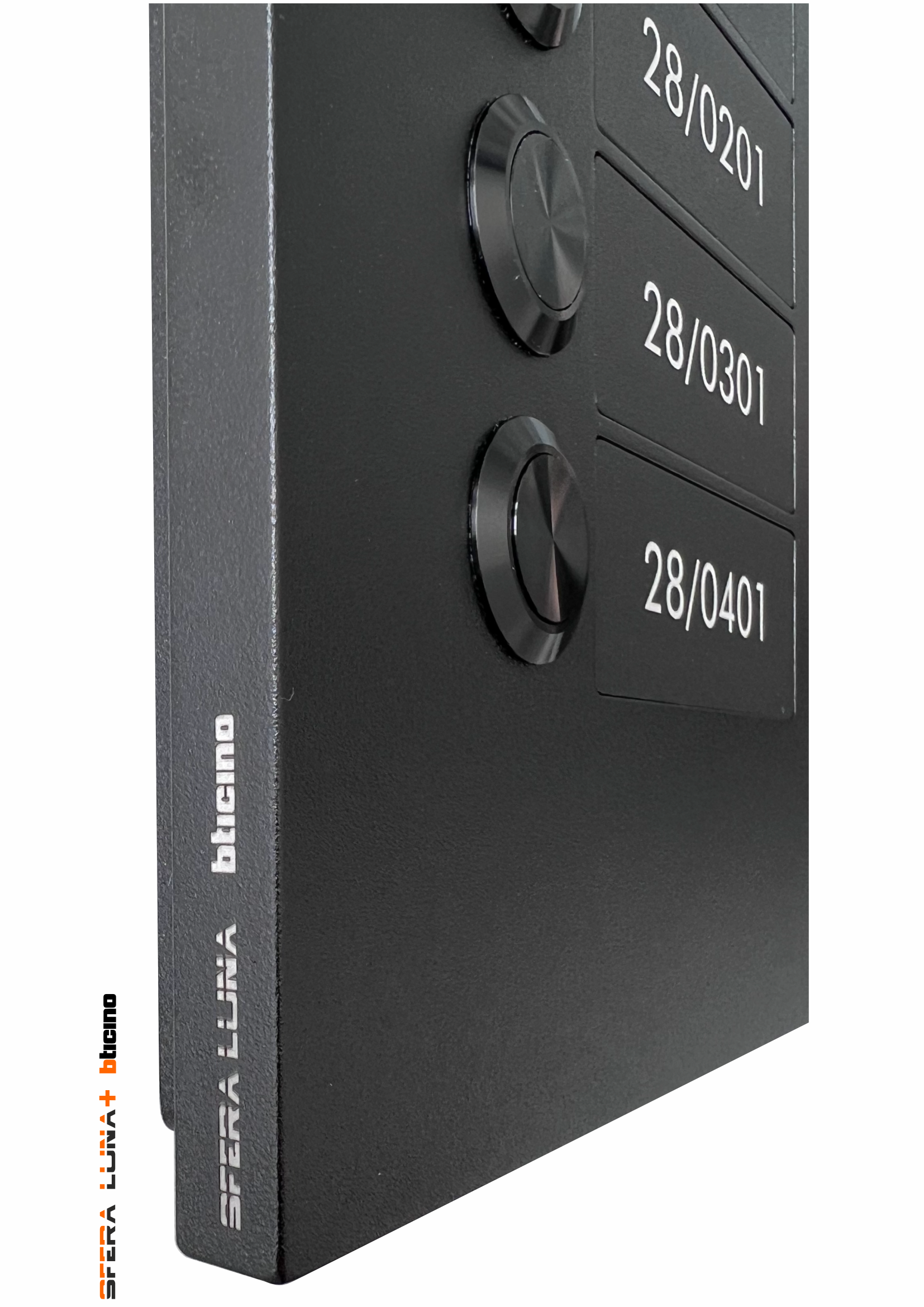

• 4 interchangeable name tags, easy mounting with unique invisible mounting system
• Produced in 10mm aluminium, High End, Solid finishing.
• Central mounting system front panel. (Simple blind mounting)
• Vandalism resistant.  (IP54 - IK08)
• Installation possibilities: on walls, gates, poles, mailboxes, etc ...
• Removable name tag can be personalized or not.
• Easy installation in narrow environments
• Unique flush-mounting system for recessed gates, poles, etc. .....
• Model flush mounted on standard box Bticino 350030
• Also available with surface-mounted module.

Sfera Luna, partner of the Legrand Group (copyright model)

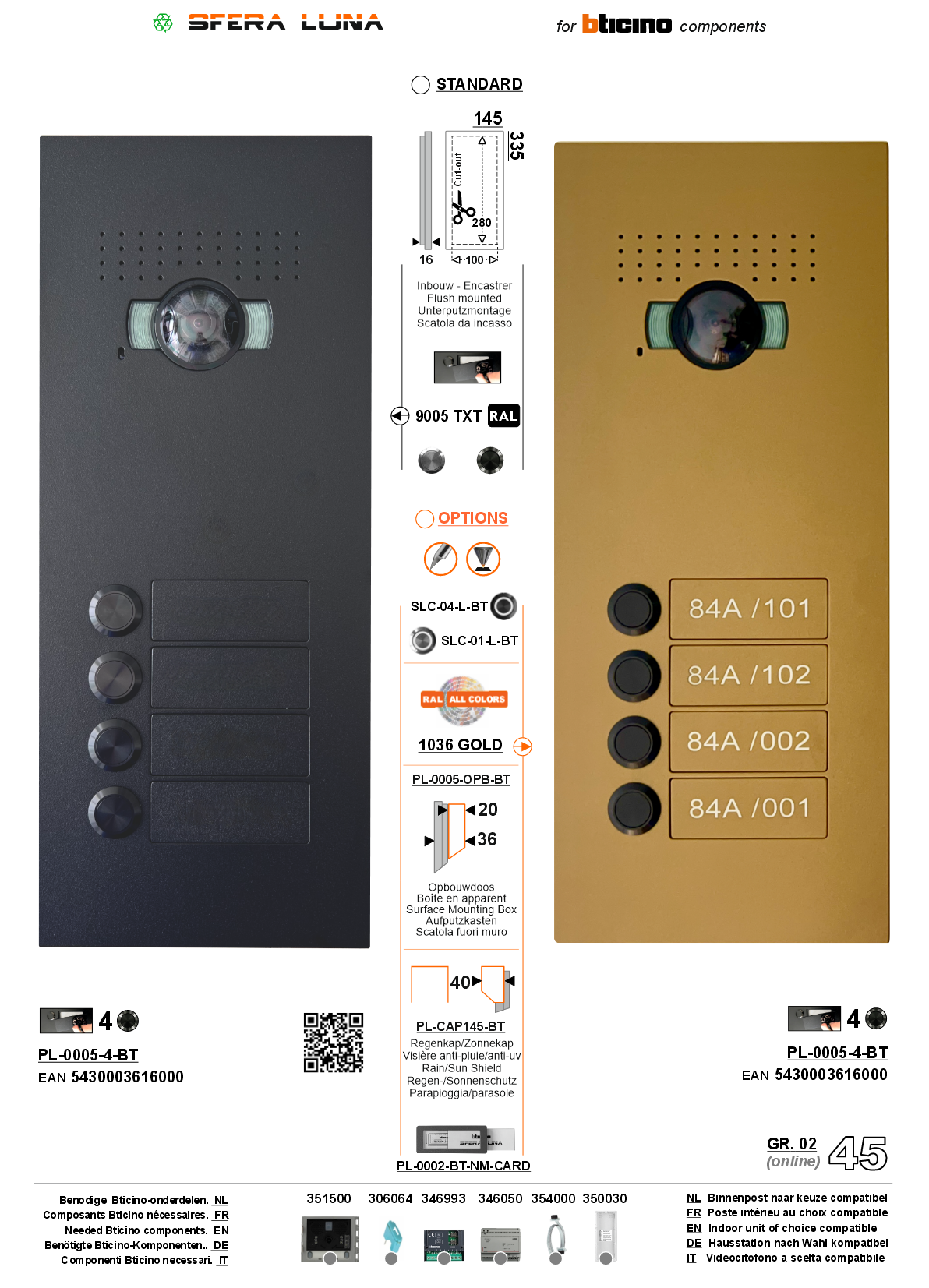

 SFERA LUNA DOCUMENTS

 All Ral colours available

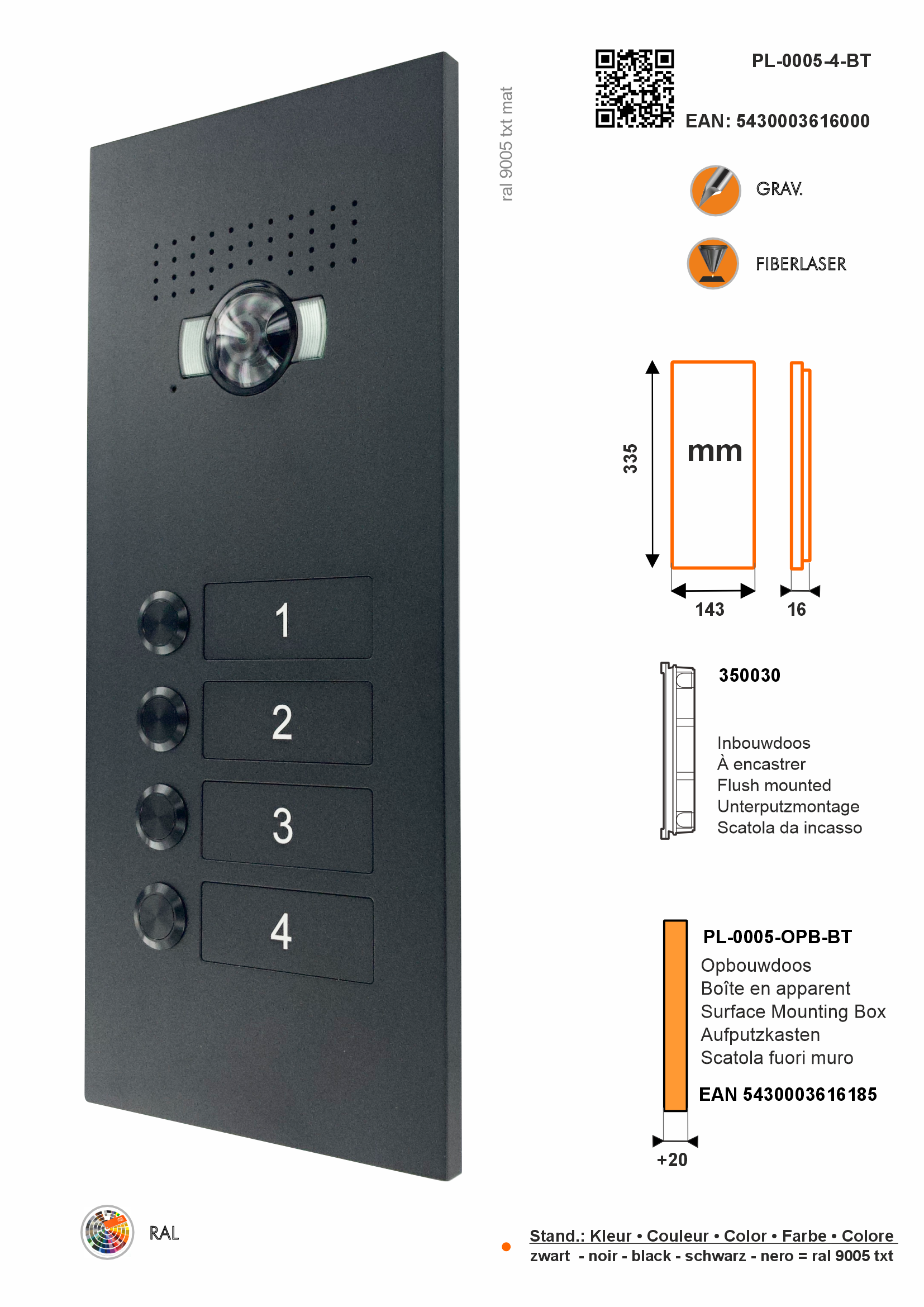

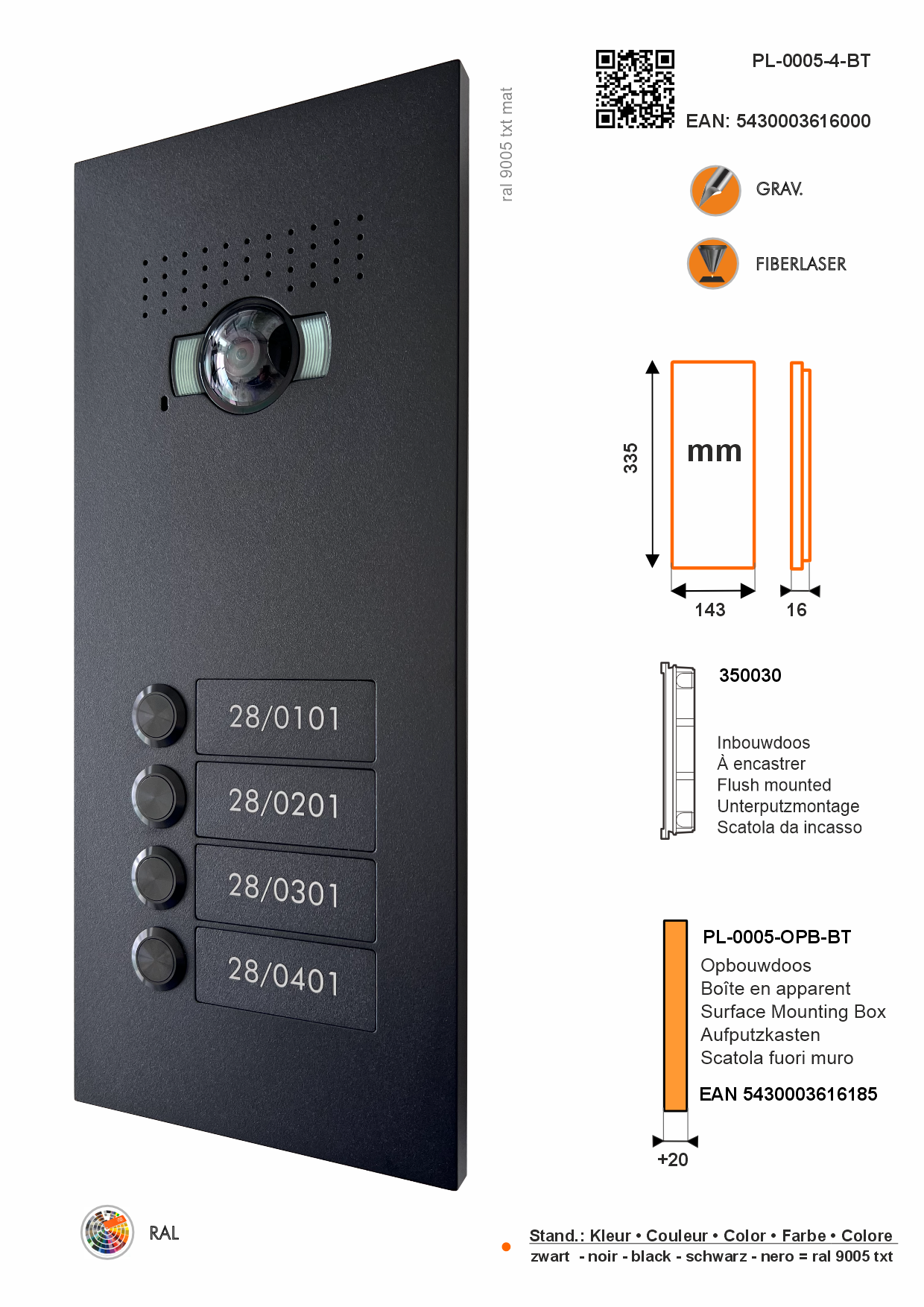

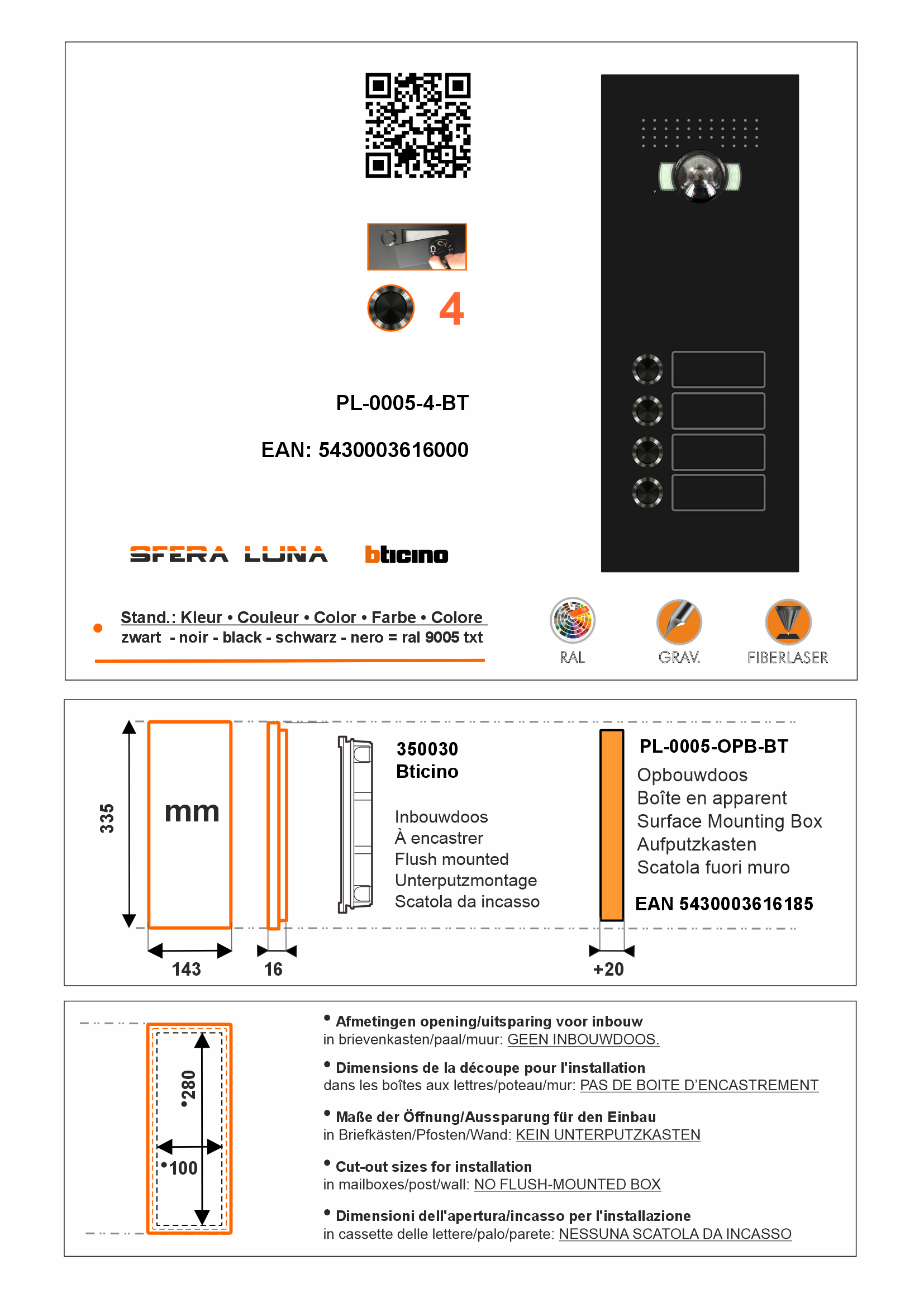

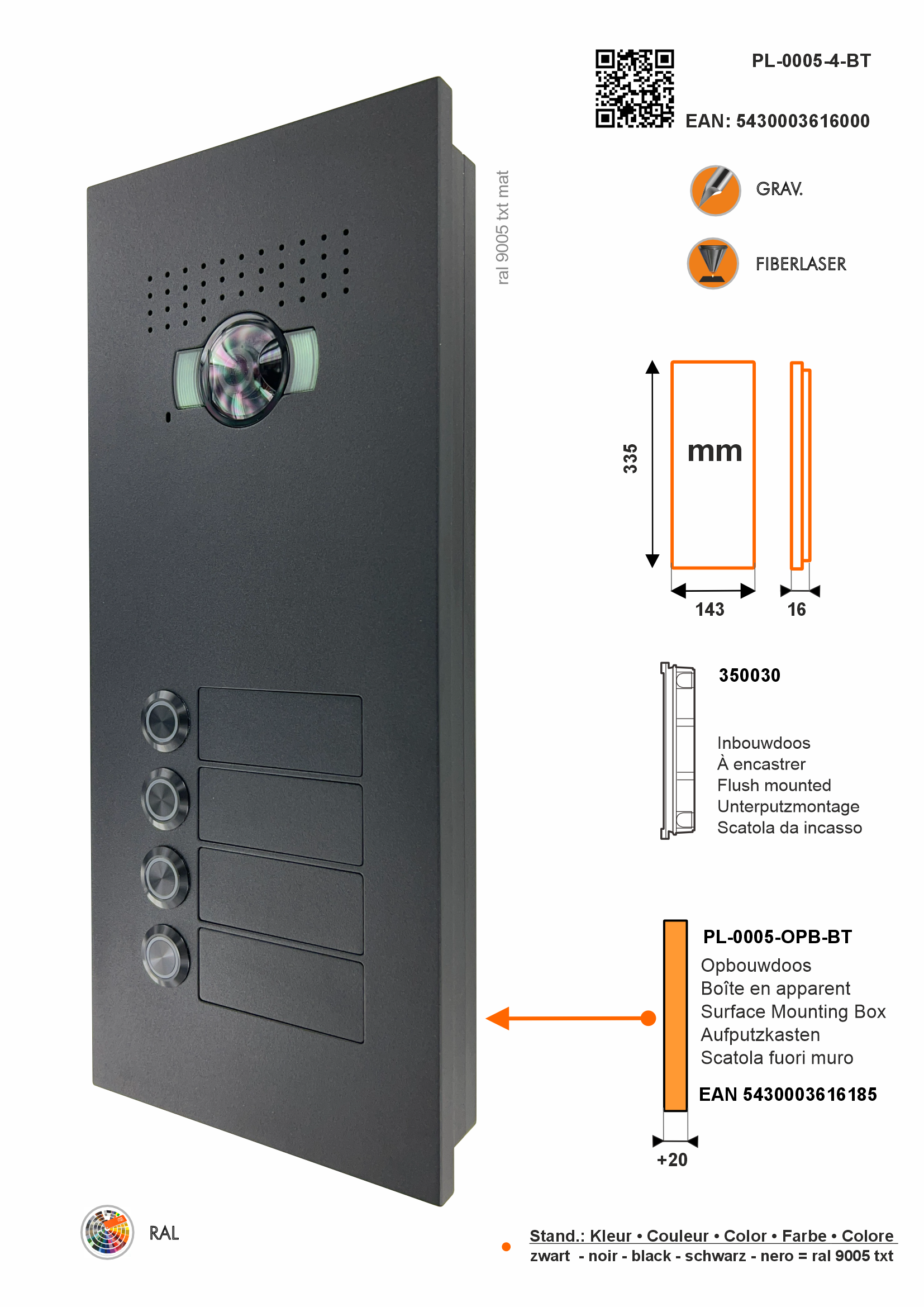

 Dimensions : width 143mm x height 335mm

We supply :

1. Front panel entrance in ral color. (IP54 - IK08)
2. Modular panel frame + screws for installation on flush-mounting box 350030
3. 351305pkm - plexiglas for module 351300 = 351500
4. 4 pushbuttons (integrated) black stainless steel, stainless steel or led (IP67 - IK08)
5. 4 interchangeable name tags (IP67)
6. Tool for mounting interchangeable name tags

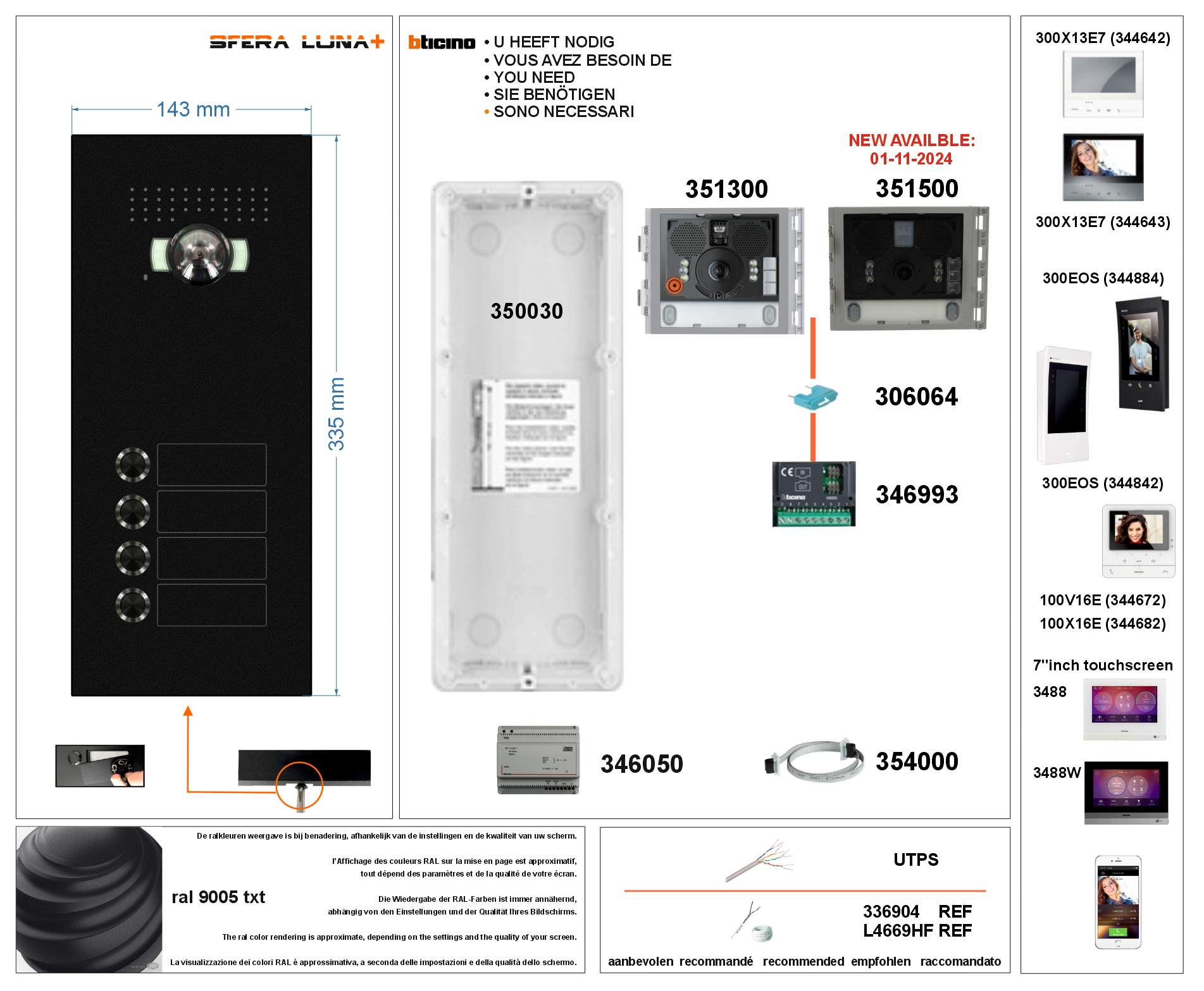

You need  Bticino:

1. 350030 - Flush-mounting box 3 modules
2. 354000 - Videoparlofonie connection cable for functional modules
3. 351300 or 351500 - Audio/video module with wide-angle lens
4. 346993 - Interface Sfera (up to 8 call buttons possible)
5. 346050 - Power supply
6. 306064 - Config. set
7. Compatible with all Bticino indoor units:  Class 100X16E (344682) or Class 300EOS (344842) or MyHome_UP 7" Hometouch (3488)
8. Preferably use twisted cable ref 33906 or UTPS for the connection

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Sfera Luna (partner of the Legrand Group), copyright model.
