SFERA LUNA2 Call Buttons Video Parlofonie High-End Bticino

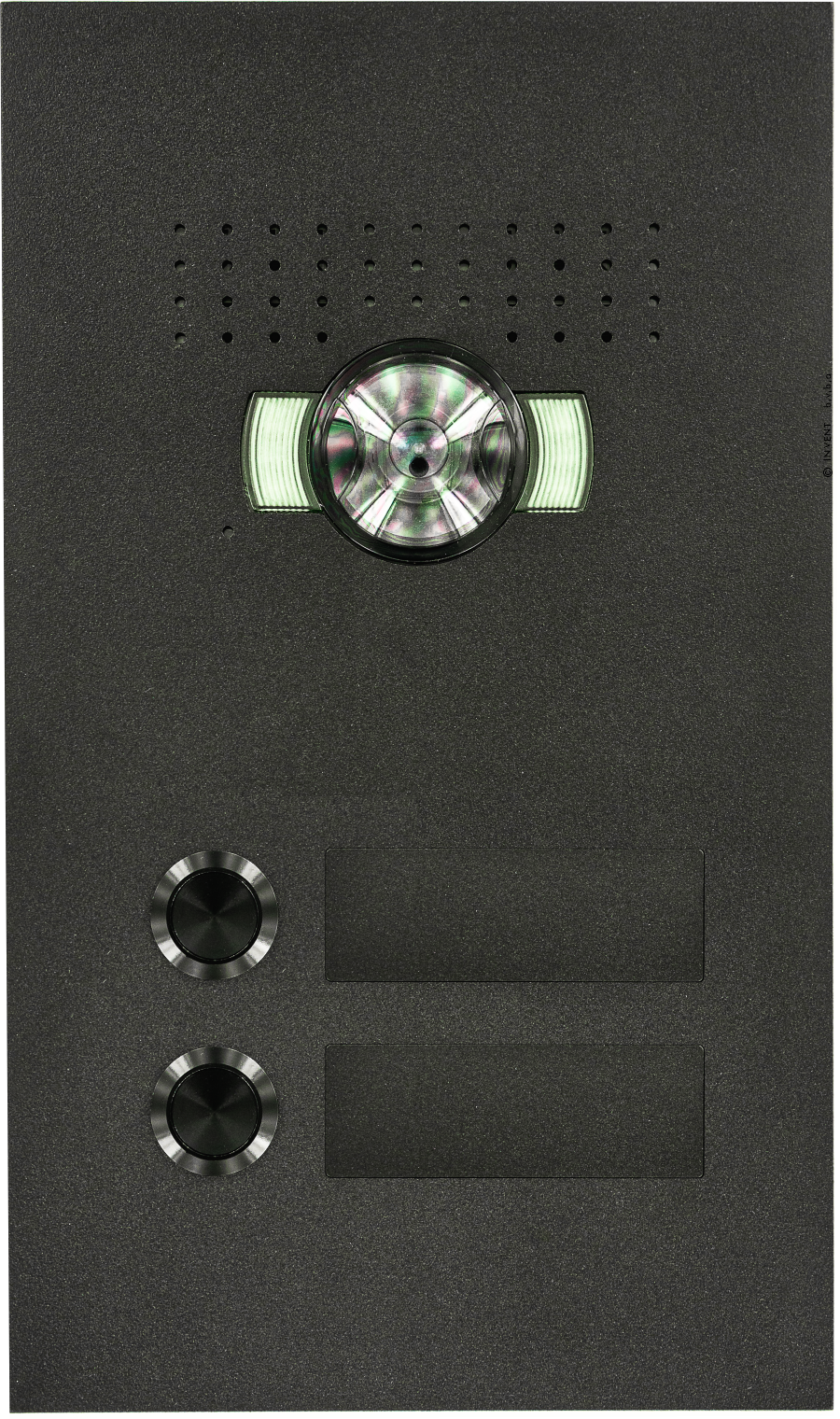

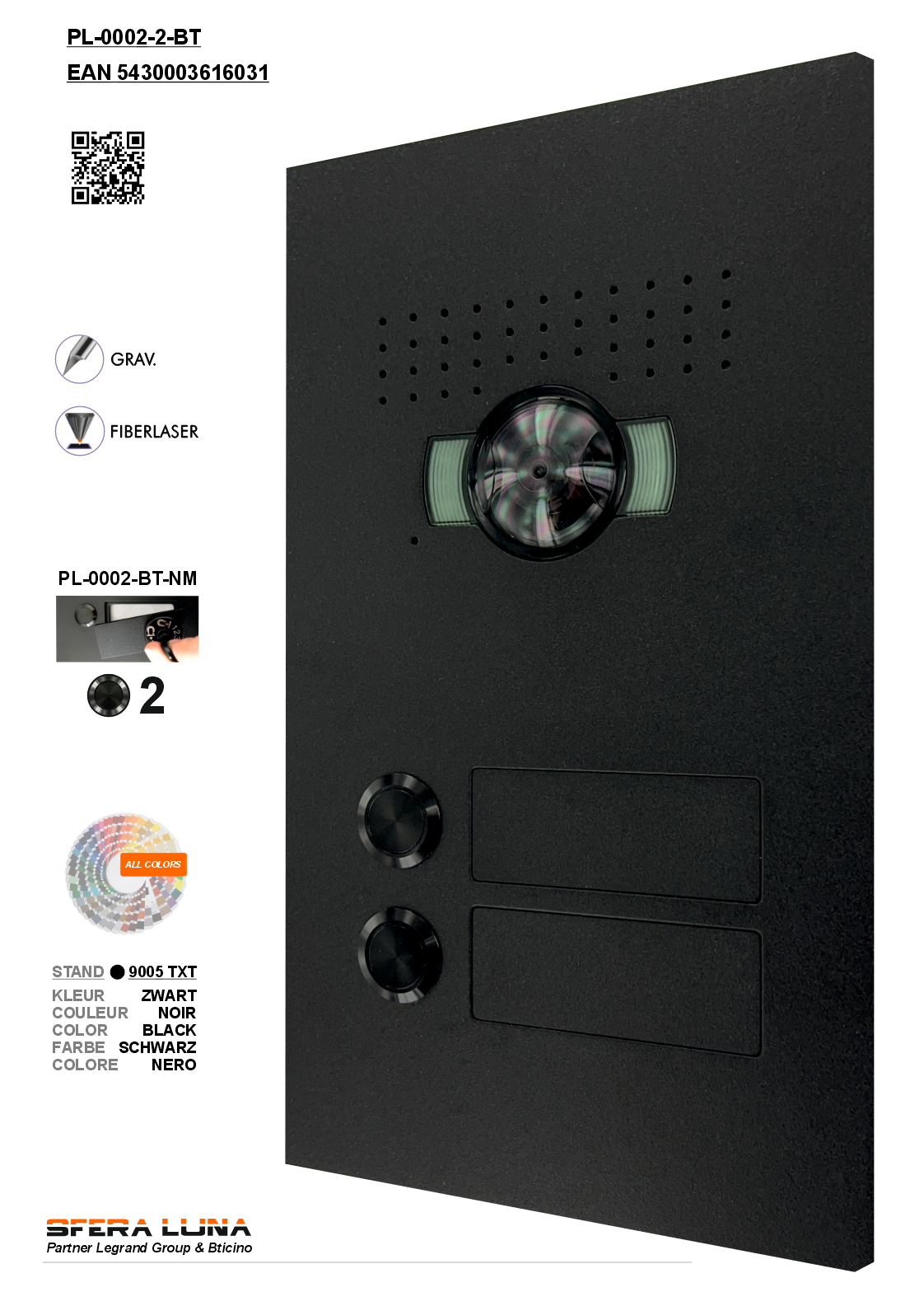

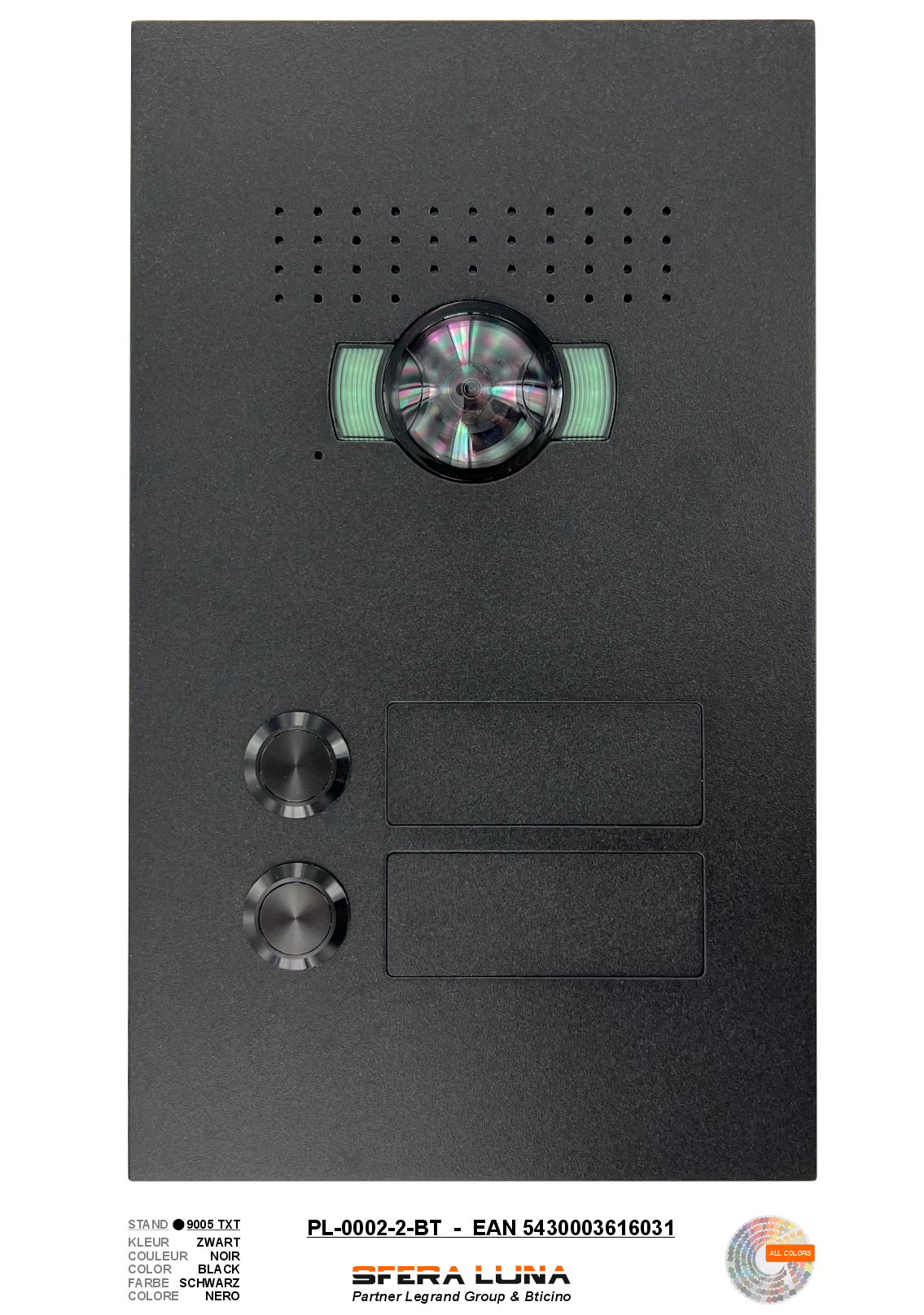

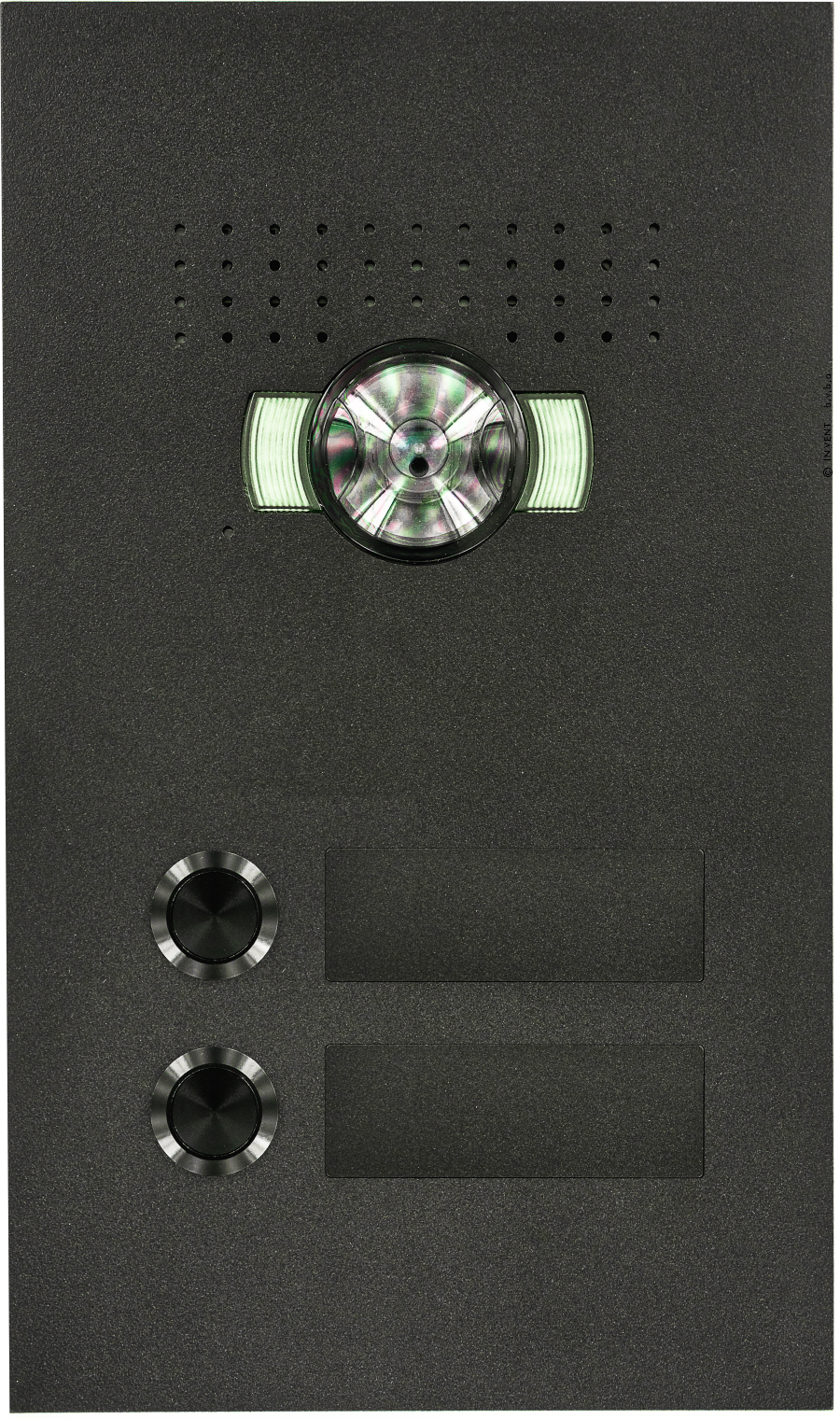

Videophone front entry panel SFERA LUNA2 with 2 replaceable name tags

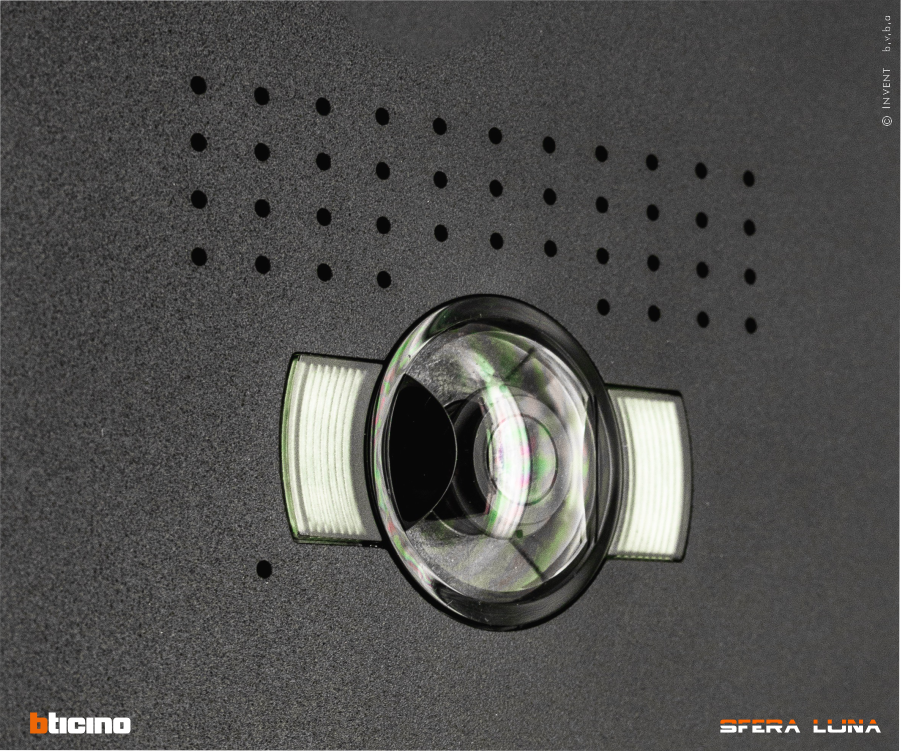

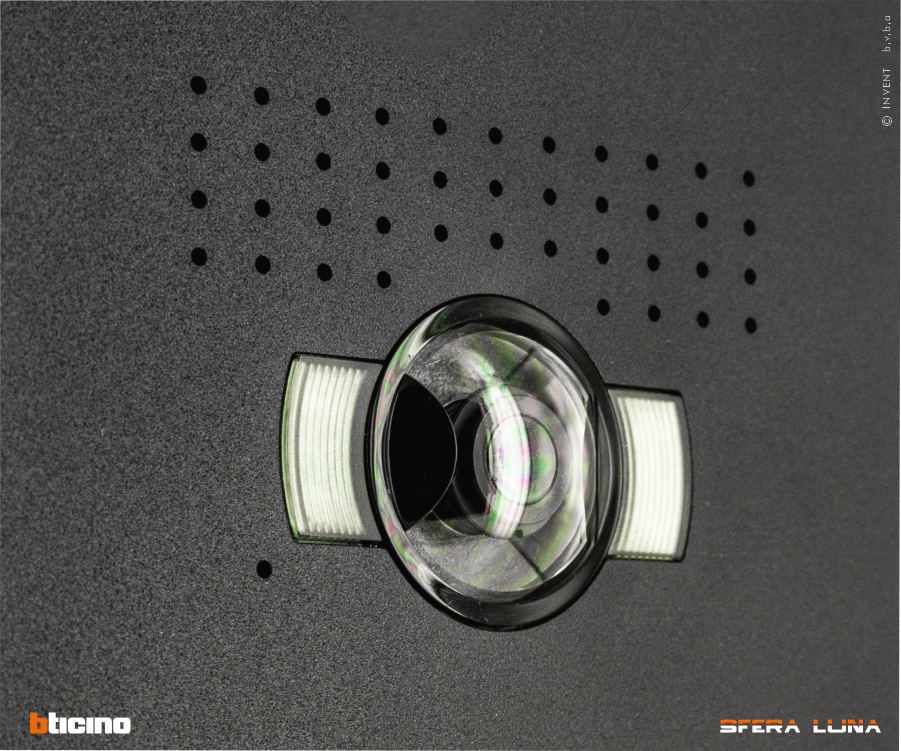

For Biticino wide angle audio/video 351300 or 351500 viewing angle: horizontal 135°- vertical 96°

Sleek high-end design at the entrance of your residence / apartment ...

A two way call button system, vandal resistant.

Design front panel as standard in colour black ral 9005 fine texture.

The front panels are available in all ral colors, matching the color of your residence or project.

• 2 call pushbuttons (stainlesssteel or black or led lighted)
• 2 interchangeable nameplates, easy mounting with unique invisible mounting system
• Central mounting system front panel. (Simple blind mounting)
• Vandalism resistant.  (IP54 - IK08)
• Installation possibilities: on walls, gates, poles, mailboxes, etc ...
• Installation possibilities in mailboxes ... .
• Removable name tags can be personalized or not, when ordering or later.
• Easy installation in narrow environments.
• Flush mounting on standard box Legrand 350020

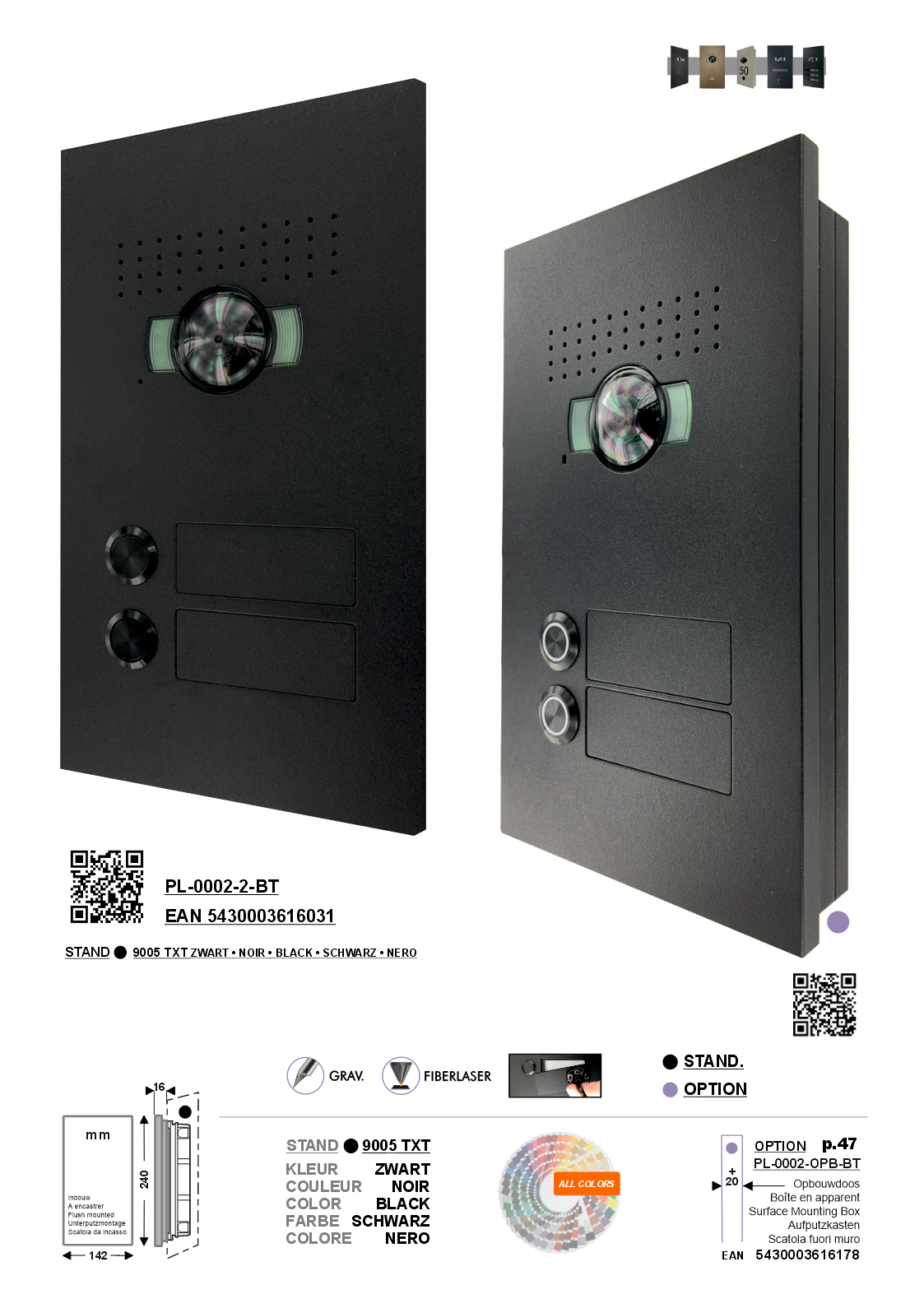

• Also available with surface-mounted module.

Sfera Luna, partner of the Legrand Group and Bticino (copyright model)

 All Ral colors available

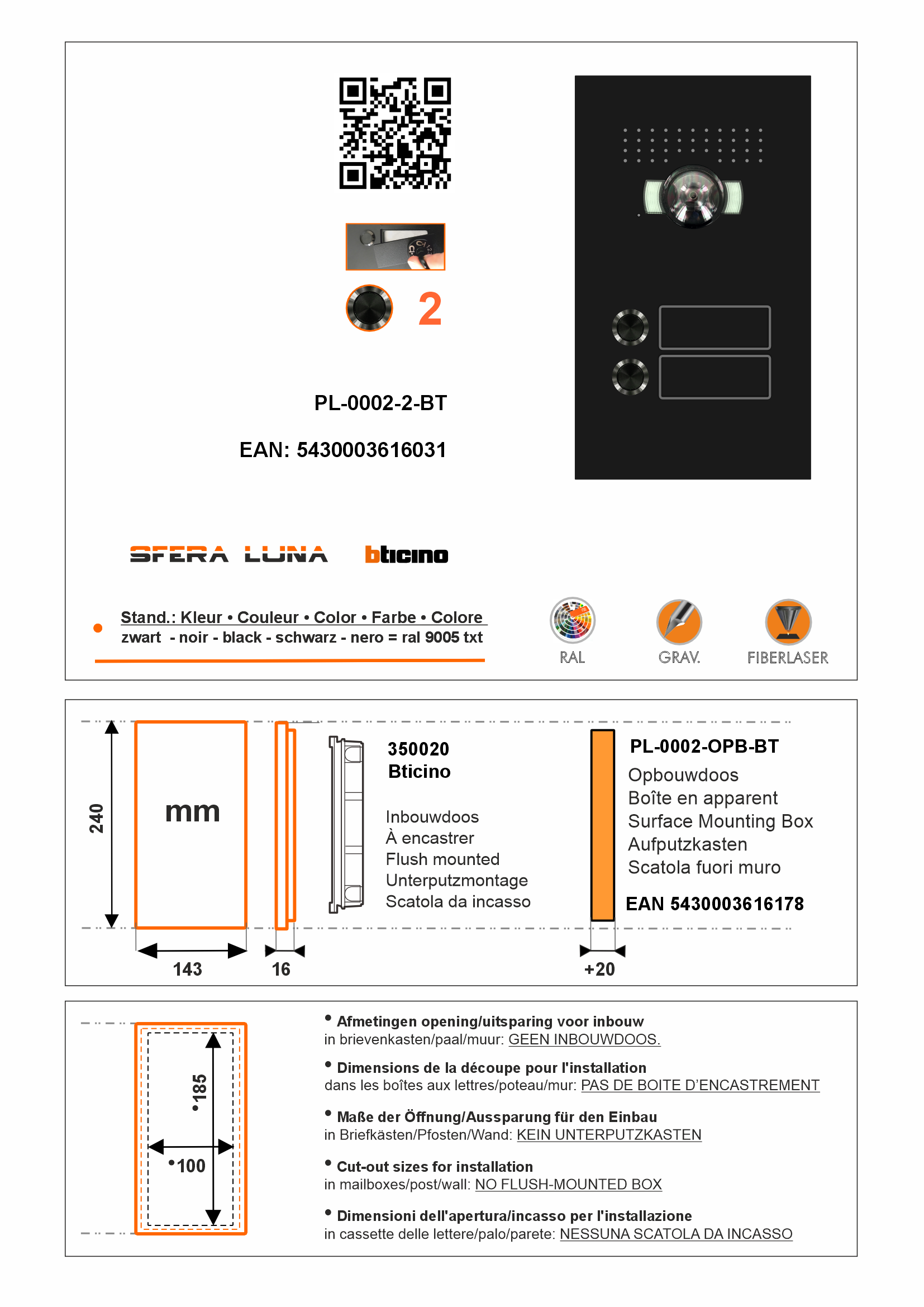

 width 142mm x height 240mm

We supply :

1. Front panel entrance in ral color  (IP54 - IK08)
2. Modular panel frame + screws for installation on flush flush-mounting box 350020
3. 351305pkm - Plexiglas for module Audio/video module with wide-angle lens 351300 = 351500
4. 2 push buttons black stainless steel, stainless steel or led.  (IP67 - IK08)
5. 2 interchangeable name tags  (IP68)
6. Tool for mounting interchangeable name tag

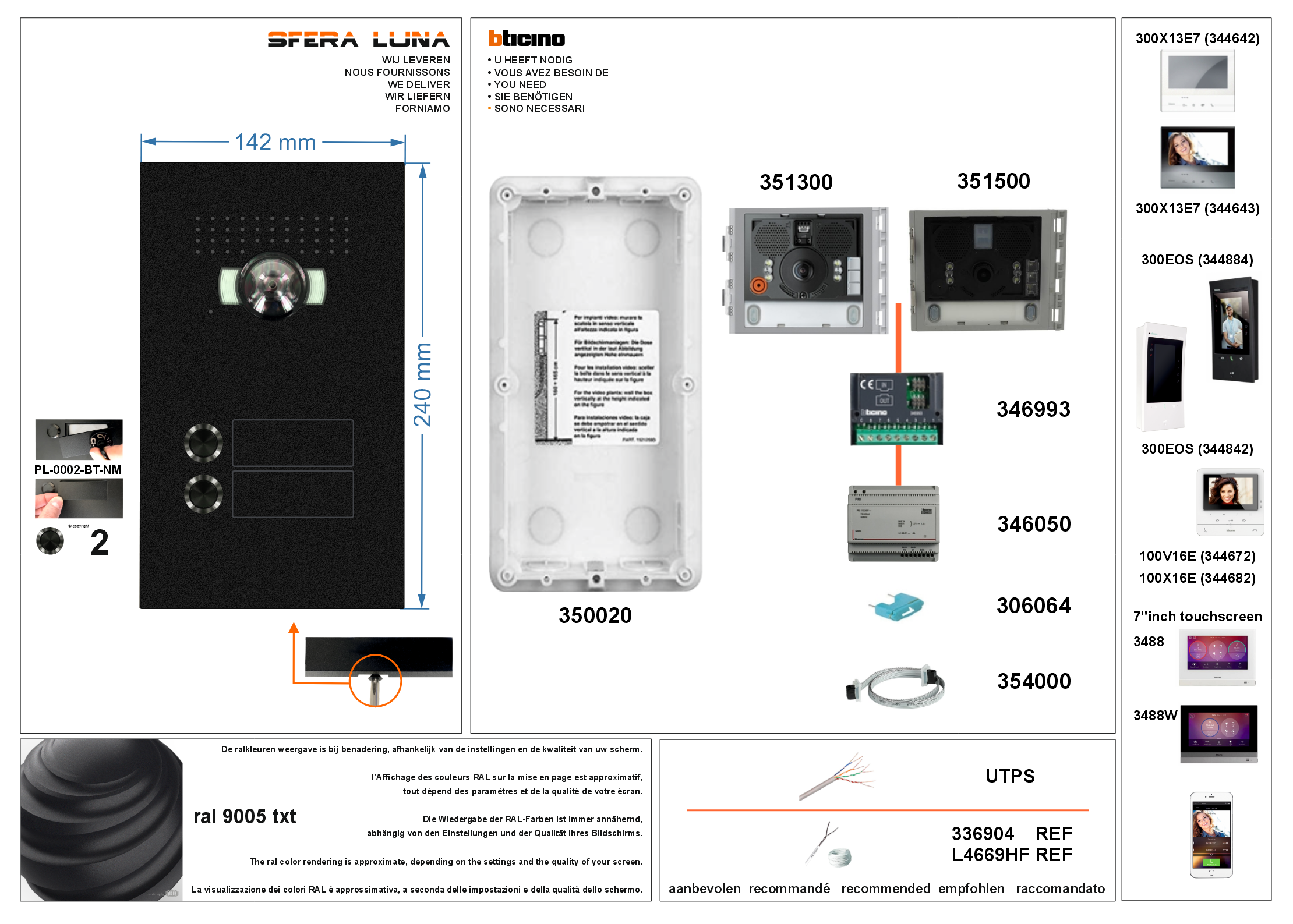

You need  Bticino:

1. 350020 - Flush-mounted box 2 modules
2. 351300 or 351500 - Audio/video module with wide-angle lens
3. 346993 - Interface Sfera
4. 306064 - Config. set
5. 346050 - Power supply
6. Compatible with all BTicino Indoor units : Classe 100X16E or Classe300EOS Alexa built-in wifi-3/4G or MyHOME_UP 7" Hometouch 3488 (W)

    These Bticino components are available :

via the wholesaler
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores

 Create your personal videophone with our editor order form.

Combine your combination(s) into an original concept!

Real time display. The rendering will always be optimized by our typographer / graphic artist.

The order form is already preset and indicated in blue like the photo shown in our webshop.

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Sfera Luna (partner of the Legrand Group and Bticino), copyright model.
