SFERA LUNA+ Keypad Video Parlofonie High-End Bticino

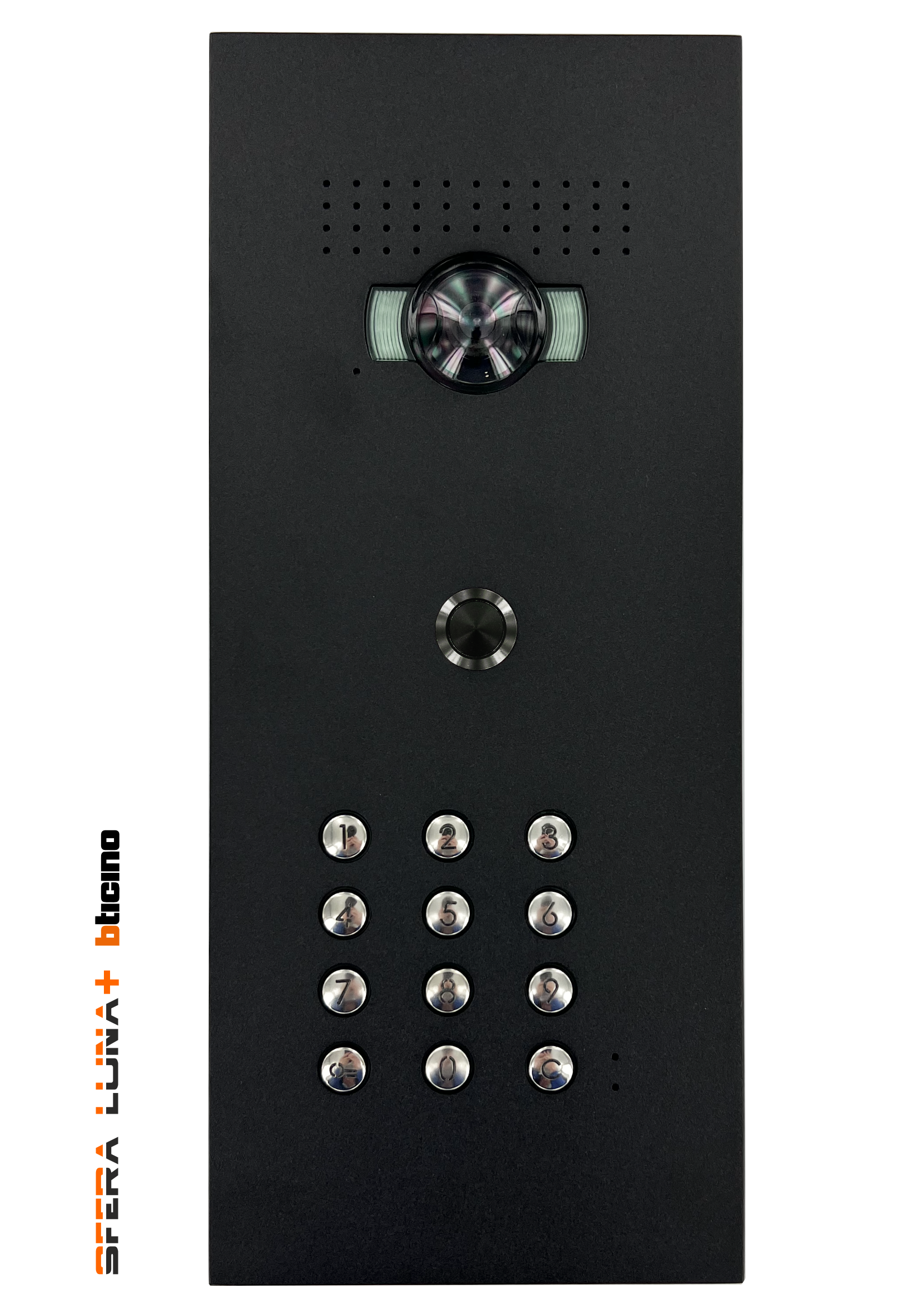

SFERA LUNA+ video entrace front panel

For Biticino wide angle audio/video 351500 & keypad 353000 (LED illuminated)

Sleek high-end design at the entrance, vandal resistant ...

The front panels are available in all ral colors, matching the color of your residence or project.

Standard mounting on Bticino AVT 350030 flush-mounted box.

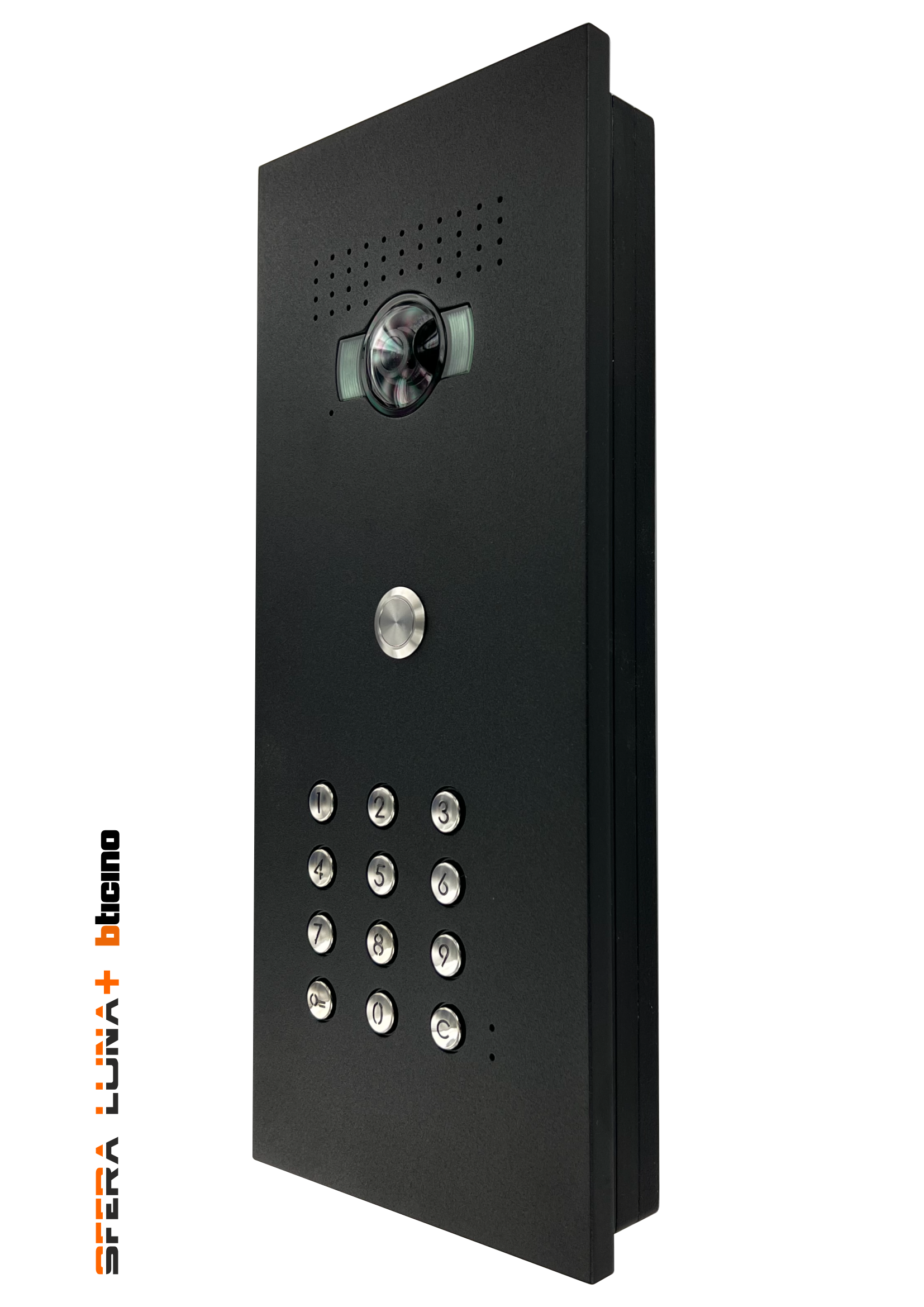

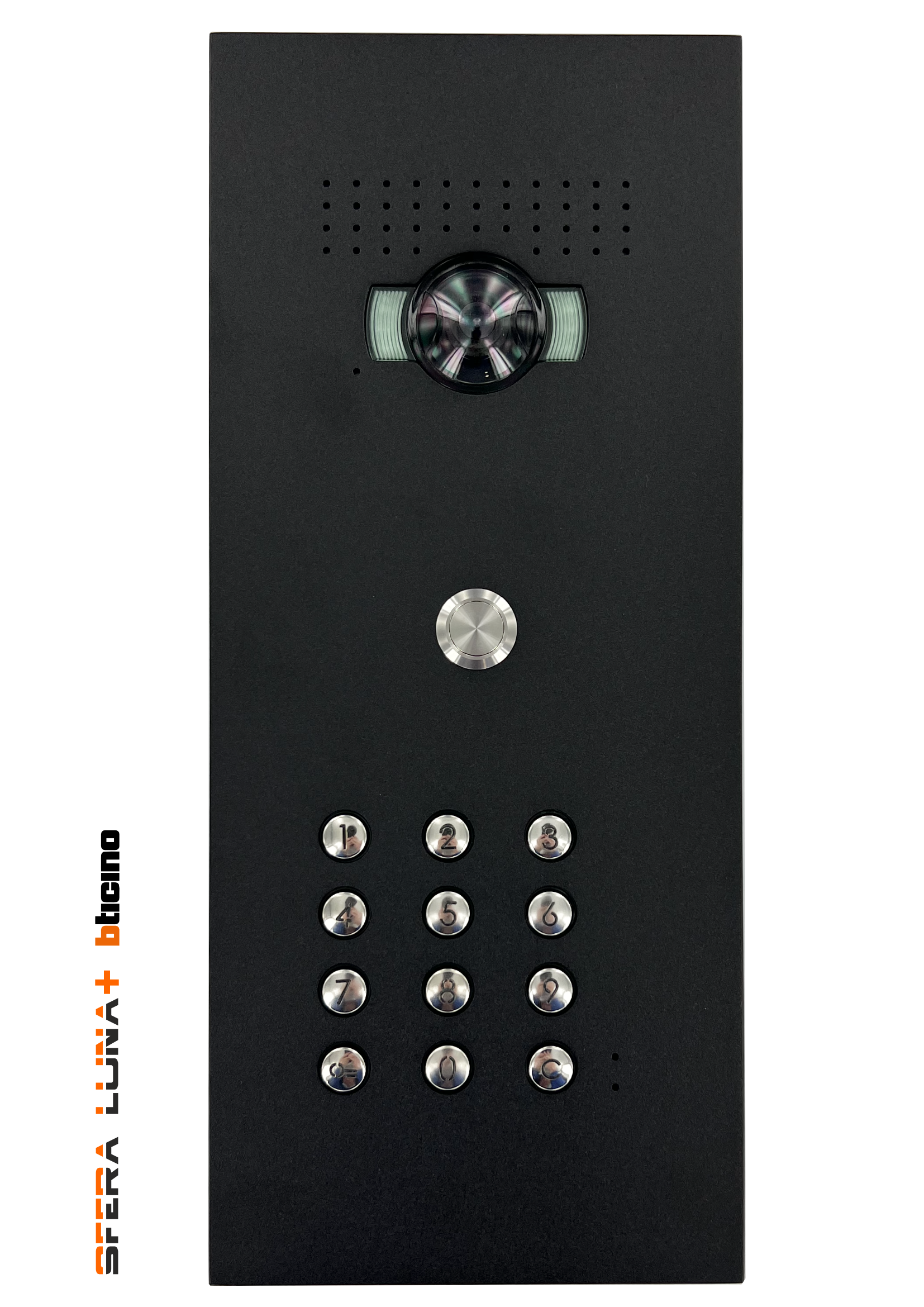

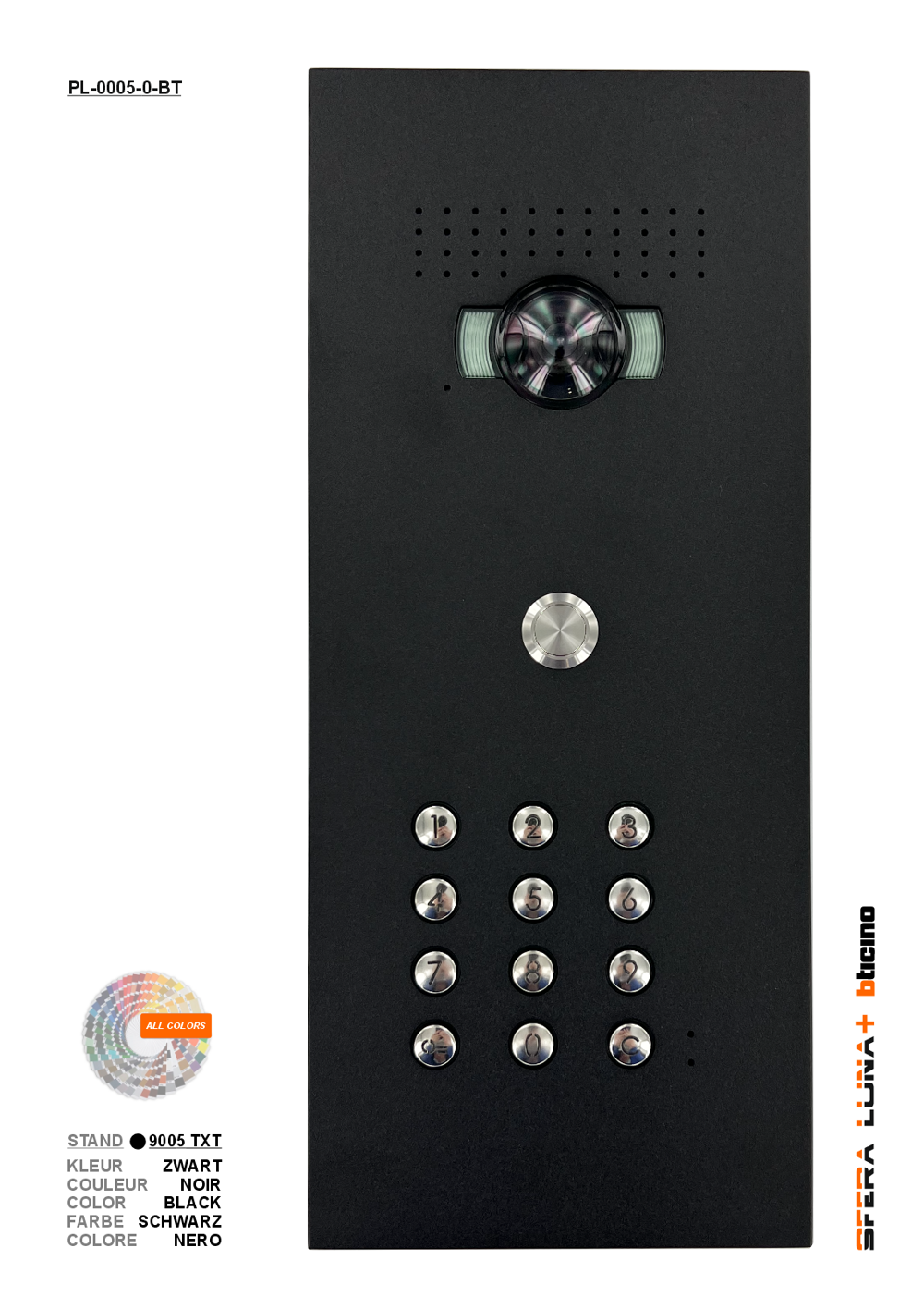

Standard colour black, RAL 9005, fine texture, as in the Bticino kit REF. 363931.

• Made in 10mm aluminium, High End, solid finish.
• Central mounting system front panel. (easy blind mounting)
• Vandalism resistant.
• Installation possibilities: on walls, gates, columns, mailboxes, etc ...
• Easy installation in narrow surroundings.
• Unique recessed system for recessed gates, poles, etc. .....
• Also available with removable nameplate(s), personalised or not.
• 1 doorbell button or more available
• Model flush mounting on standard box Bticino 350030  (3 modules)

• Also available with surface-mounted module.

Sfera Luna, partner of the Legrand Group (copyright model)

All Ral colours available

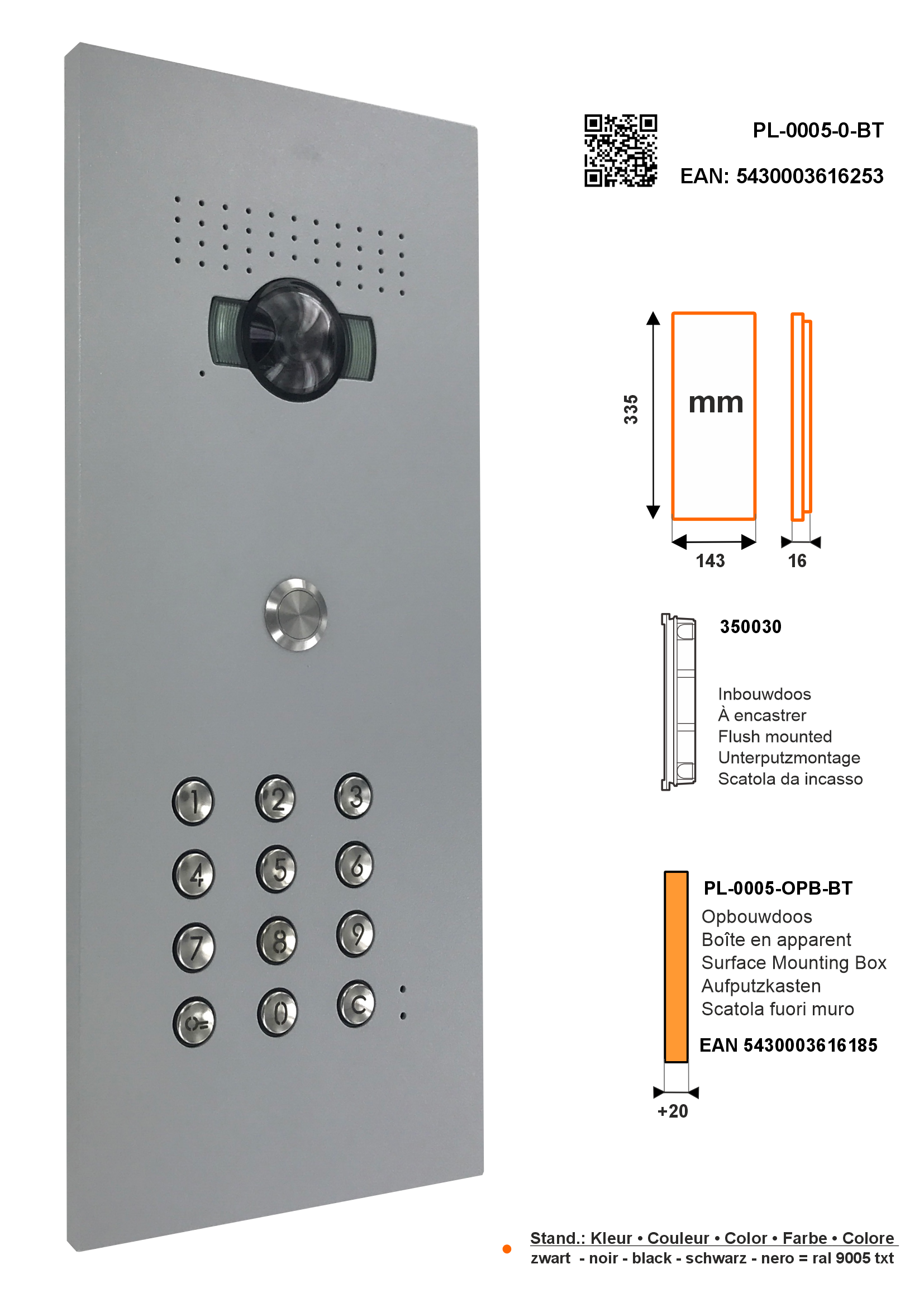

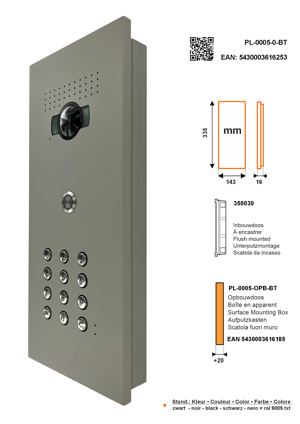

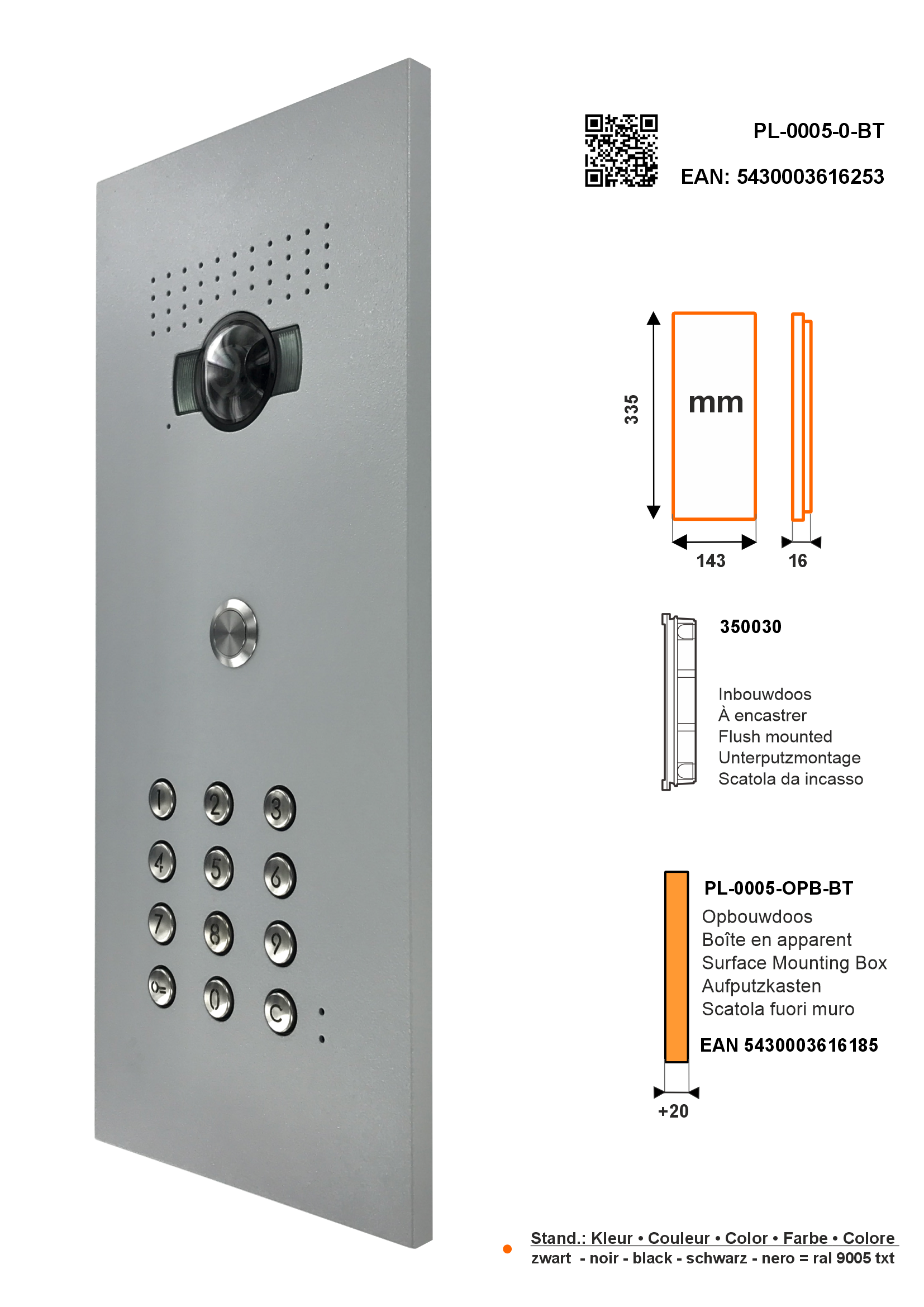

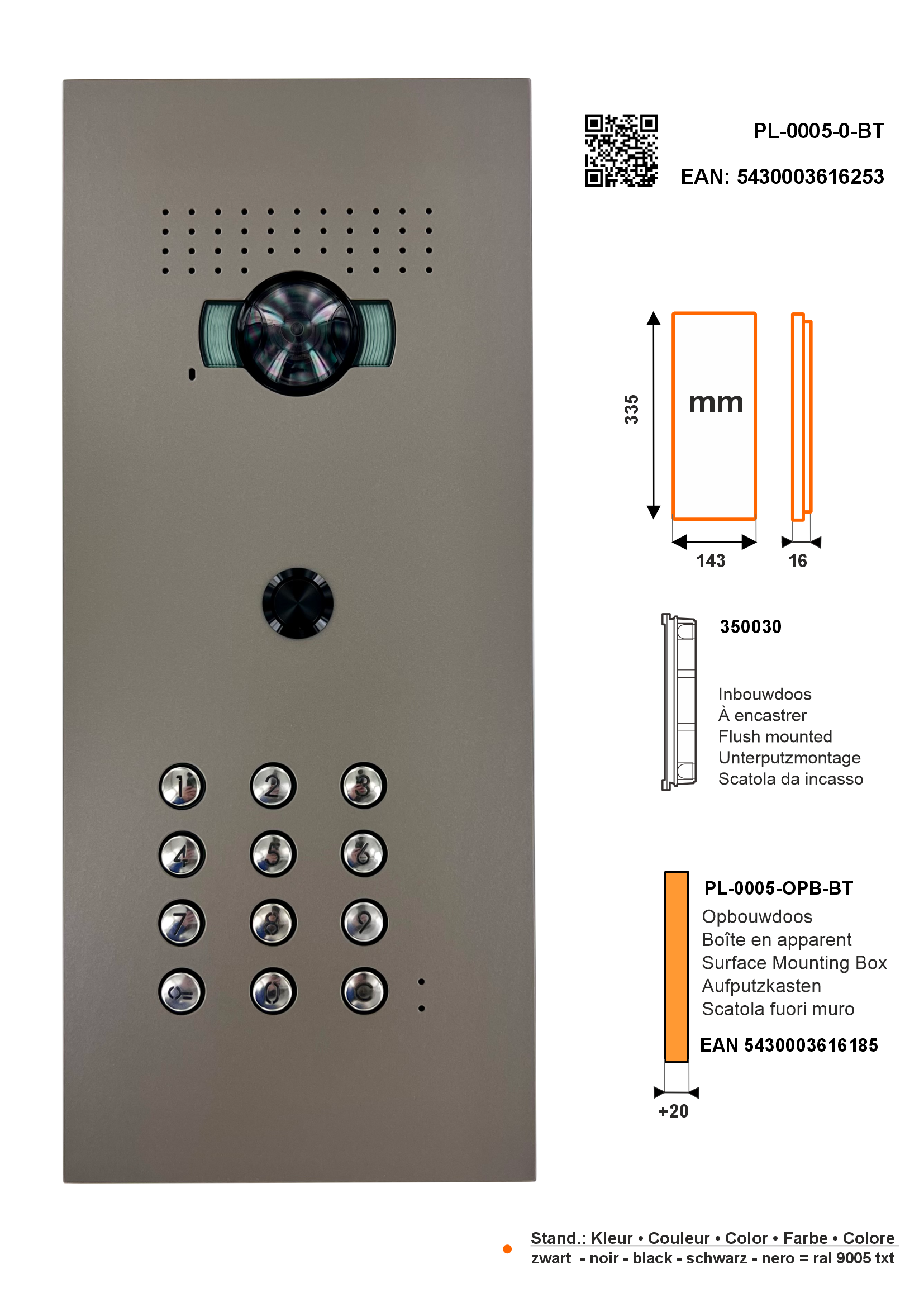

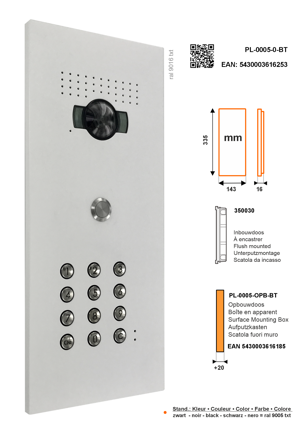

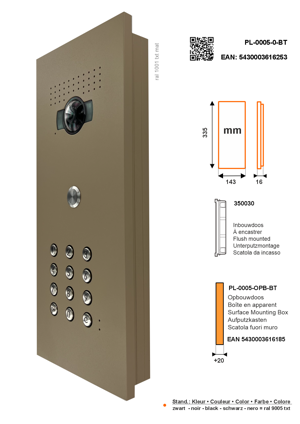

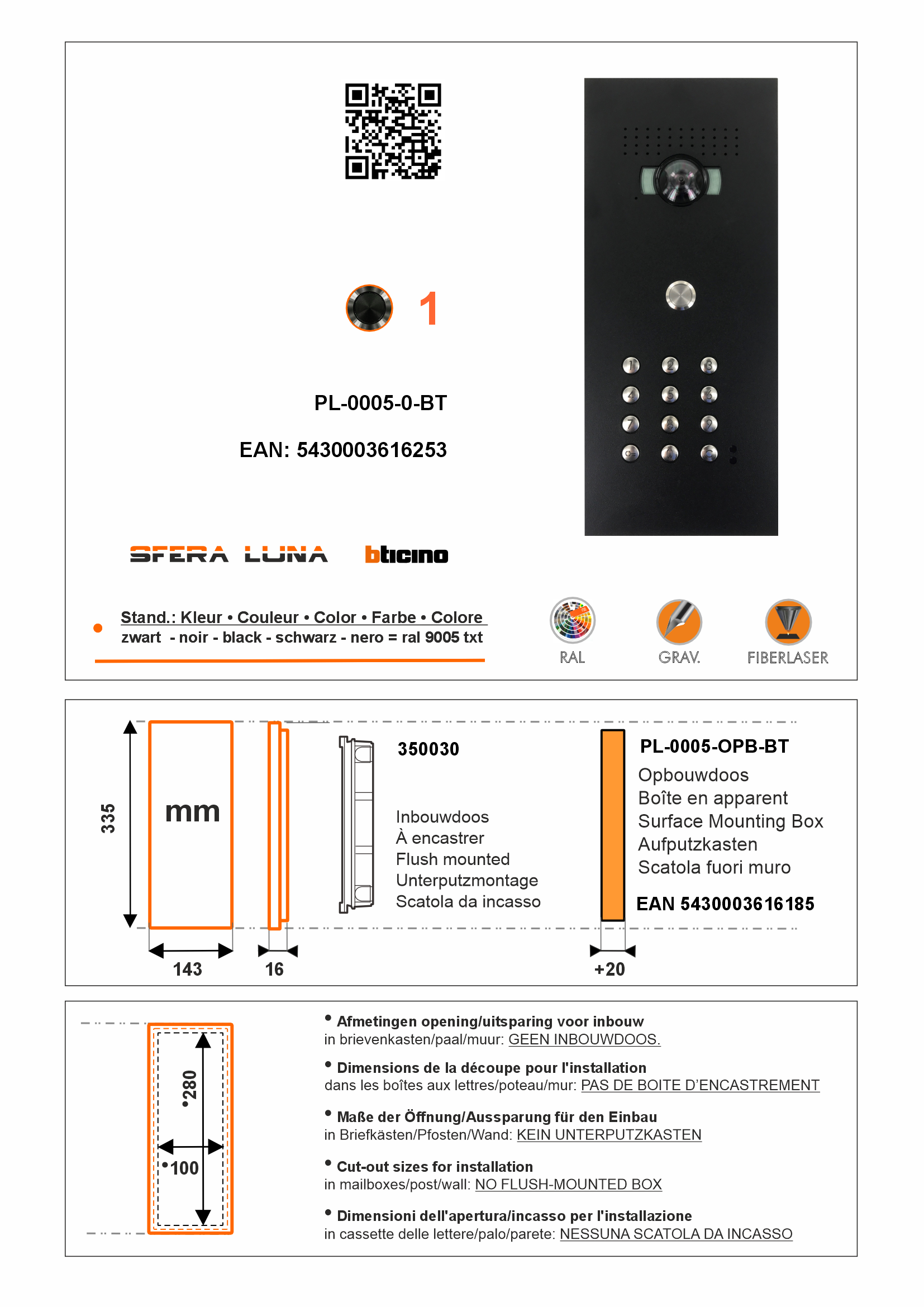

 Dimensions: width 143mm x height 335mm

We supply :

1. Front panel entrance in ral colour. (IP54 - IK08)
2. Modular panel frame + screws for installation on flush-mounting box 350030
3. 1 push button black stainless steel, stainless steel or led (IP67 - IK08)
4. 351305pkm - plexiglas for module 351300
5. 353005pkm - plexi front panel keypad

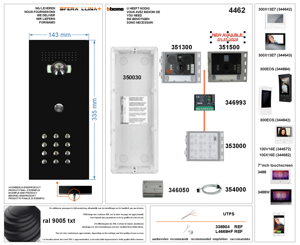

You need Bticino:

1. 350030 - flush-mounted box 3 modules
2. 354000 videoparlofonie connection cable for functional modules
3. 351500 - Audio/video module with wide-angle lens

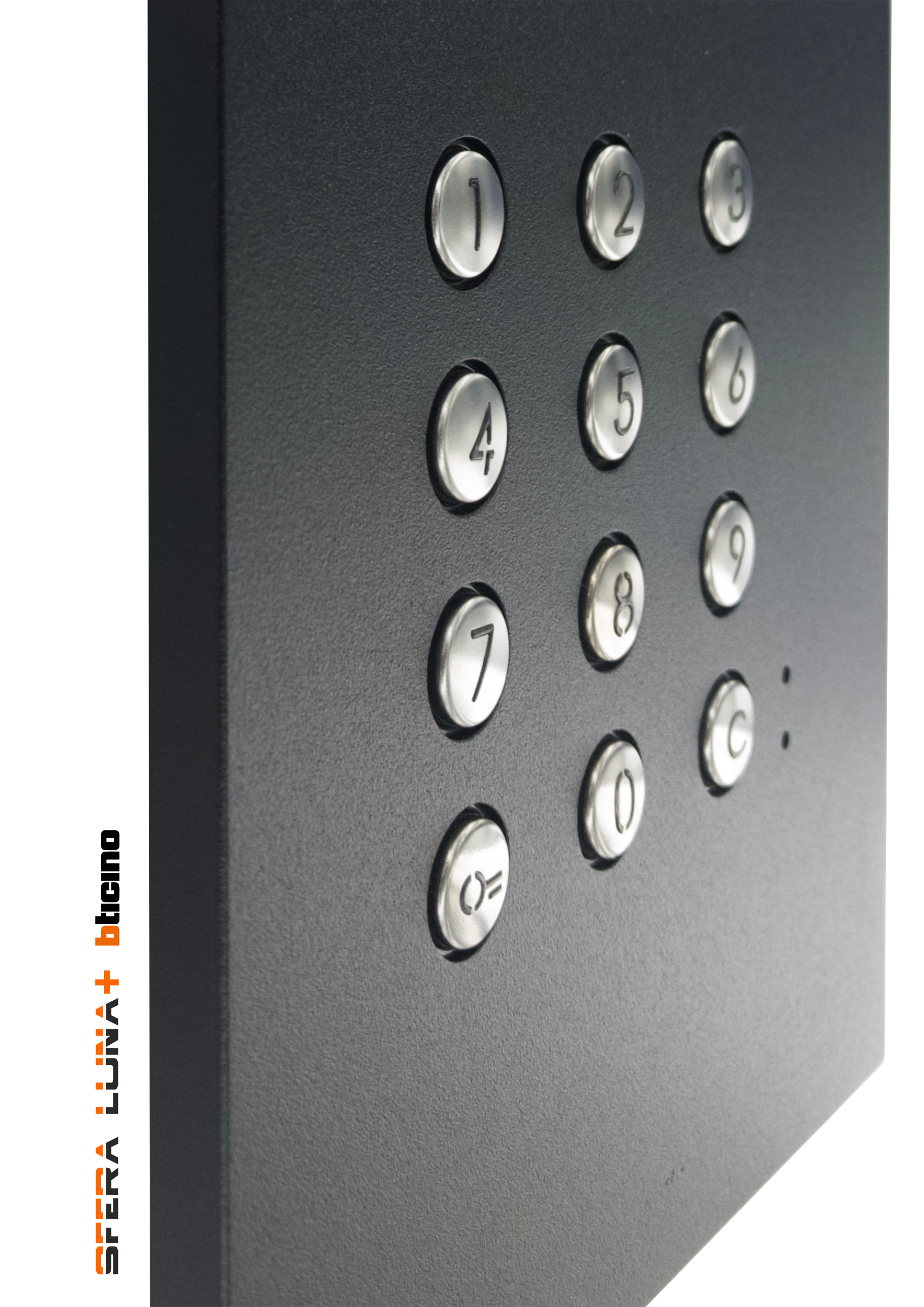

4. 353000 - keypad LED illuminated
5. 346993 - Interface Sfera
6. 346050 - Power supply
7. Compatible with all Bticino indoor units: Class 100X16E  or Class 300 X13E7 wifi-3/4G or MyHOME_UP 7" Hometouch 3488 (W)
8. Preferably use REF 336904 twisted cable or UPTS for connection

• at the wholesaler
• at your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
• in stores https://www.bticino.be/nl/stores
  SUPPORT VIA:
• Technical service for installers: 027191724  [email protected]
• Technical service private persons: 027191819 [email protected]

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Our exclusive products are produced in certified high quality materials. A combination of state of the art machinery and handcrafted finishes.

Designed & (hand) made

Sfera Luna, parter of the Legrand Group, copyright model.
