Video Parlofonie High-End Sfera Luna PURE Bticino

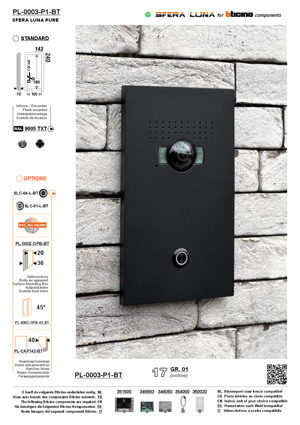

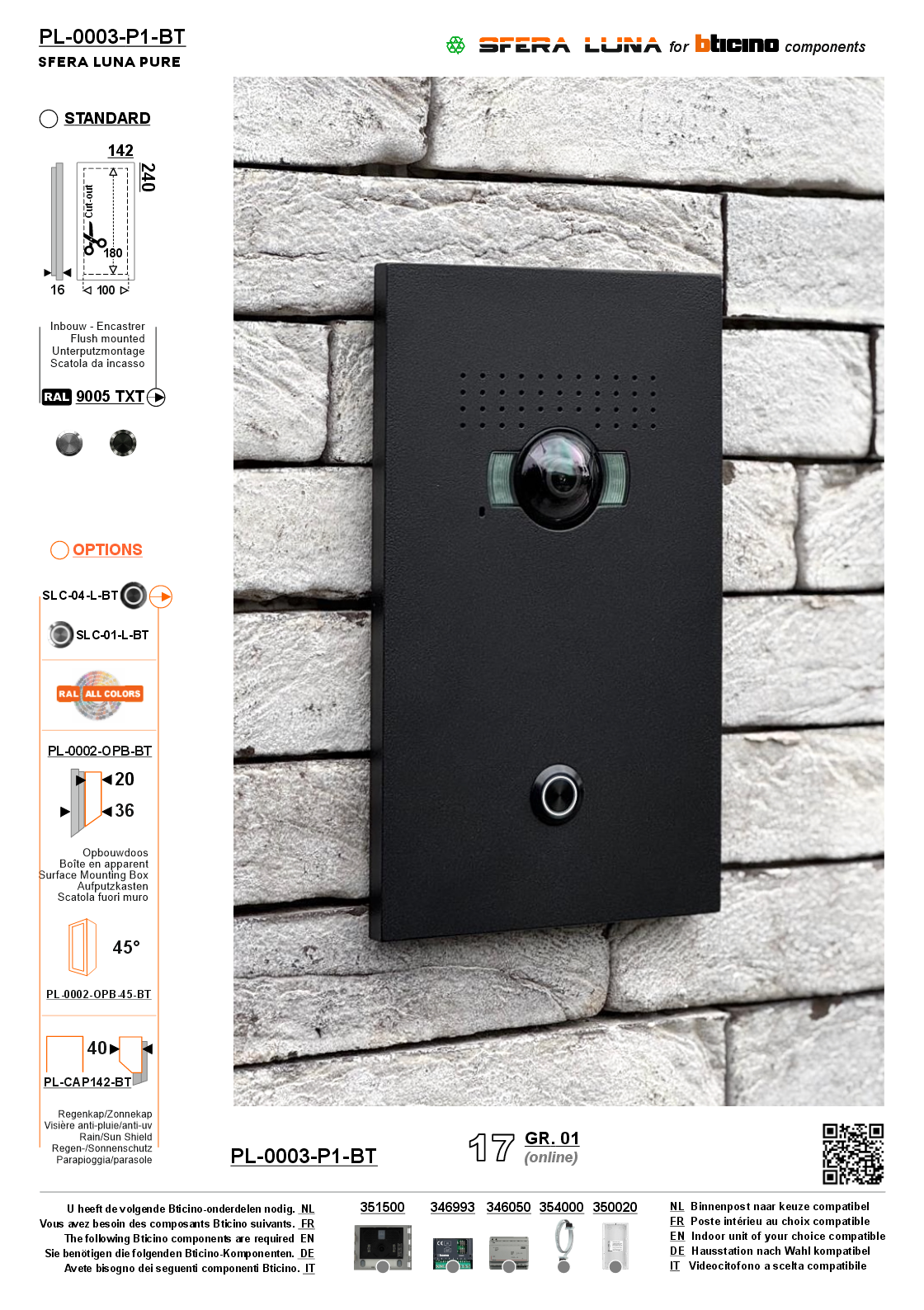

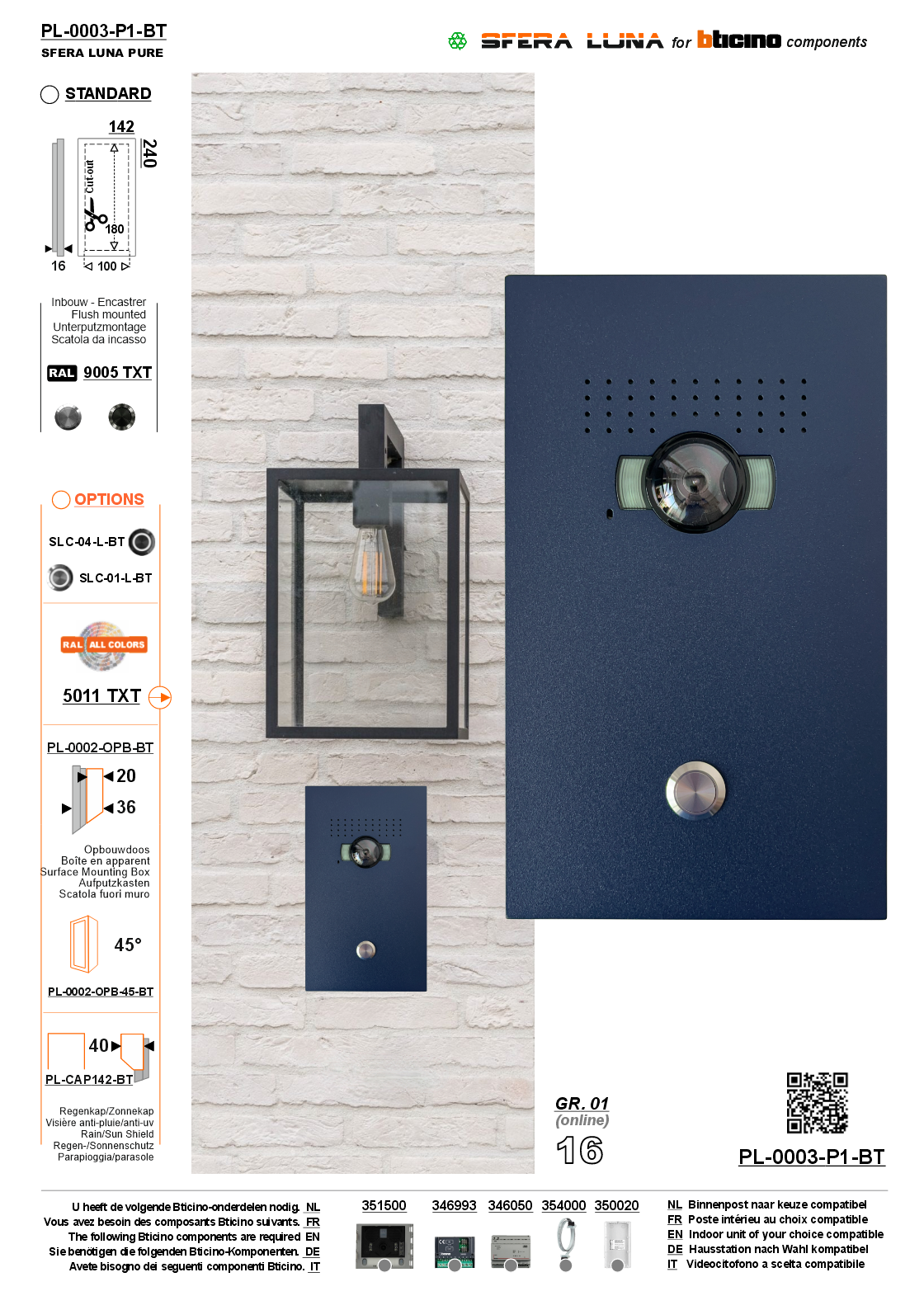

Videophone front panel in its most sleek look : SFERA LUNA PURE

For Biticino wide angle audio/video 351300 viewing angle: horizontal 135°- vertical 96°

Design front panel in colour black ral 9005 fine texture. All colors available

LUNA PURE is available in all ral colors, matching the color of your residence or project.

• Produced in 10mm aluminium, High End, Solid finishing.
• 1 call pushbutton (stainless steel or black or led lighted)
• Central mounting system front panel. (Simple blind mounting)
• Vandalism resistant. (IK08)
• Installation possibilities: on walls, gates, poles, mailboxes, etc ...
• Installation possibilities in mailboxes ... .
• Easy installation in narrow environments.
• Flush mounting on standard box Legrand 35020
• Also available with surface-mounted module.
• Positioning spirit level with oblong holes

Sfera Luna, partner of the Legrand Group (copyright model)

 All Ral colours available

 Dimensions: width 142mm x height 240mm

We supply :

1. Front panel in ral color. (IP54 - IK08)
2. Basic bracket for mounting on flush-mounting box 350020
3. Screws for mounting on flush-mounting boxes
4. 351305pkm - Plexiglas for module 351300
5. 1 doorbell button (stainless steel or black or led lighted) (IP67 - IK08)

You need Bticino :

1. 350020 - Flush-mounted box 2 modules
2. 351300 - Audio/video module with wide-angle lens
3. 346993 - Interface Sfera

4. 346050 - Power supply
5. Compatible with all Bticino Indoor units
6. Preferred indoor stations Bticino: 100X16E or AVT 300 X13E7 wifi-3/4G or MyHOME_UP 7" Hometouch (3488) or 300EOS (344842)

 Create your personal videophone with our editor order form.

• Combine your combination(s) into an original concept!
• Real time display. The rendering will always be optimized by our typographer / graphic artist.
• The order form is already preset and indicated in blue like the photo shown in our webshop.

  Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.

Sfera Luna, partner of the Legrand Group (copyright model).
