Video Parlofonie High-End Sfera Luna Bticino

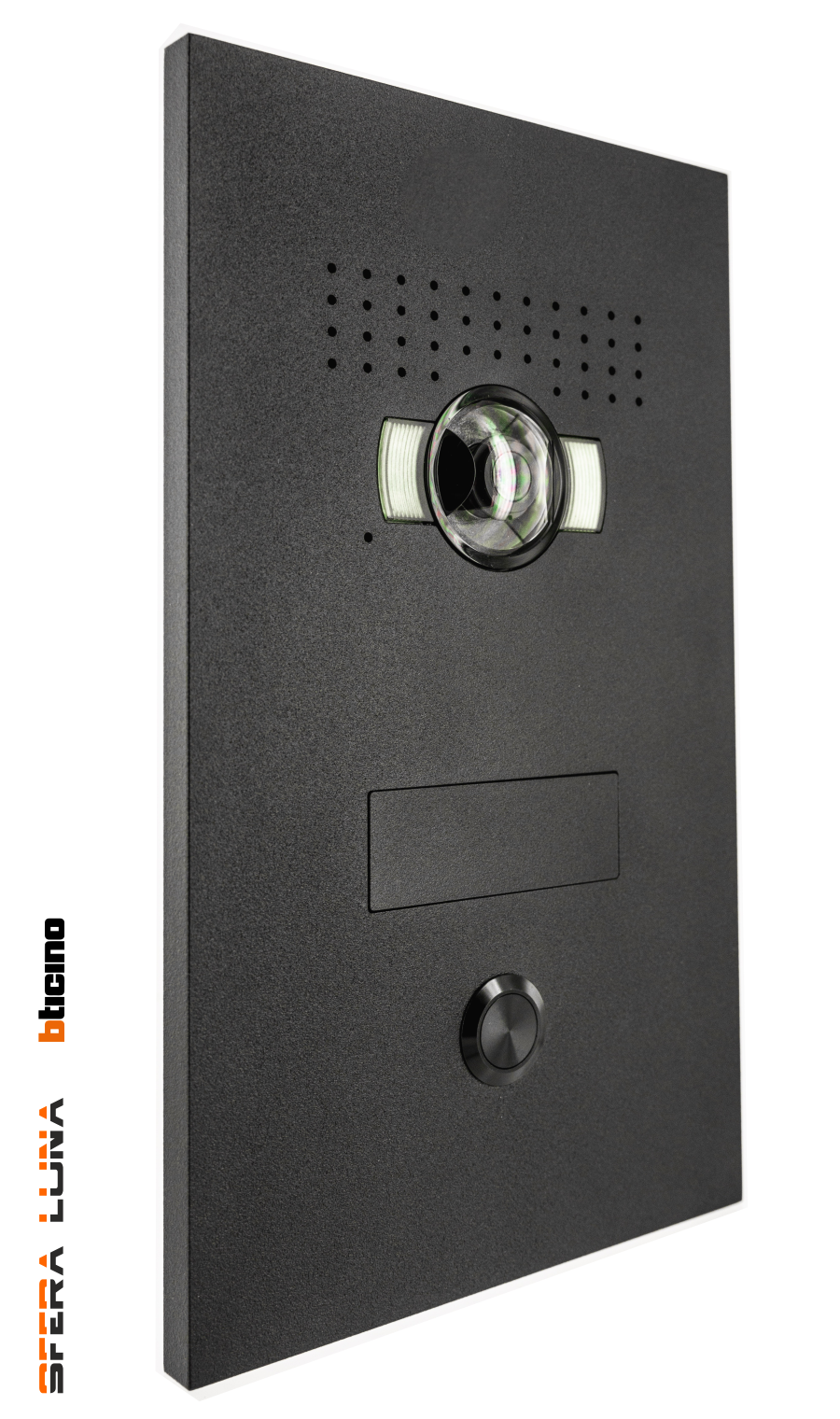

1. Videophone front entrance panel SFERA LUNA with 1 replaceable name tag

2. ---

   For 2 wired Biticino wide angle audio/video 351300 or 351500 ^{viewing angle: horizontal 135°- vertical 96°}

3. ---

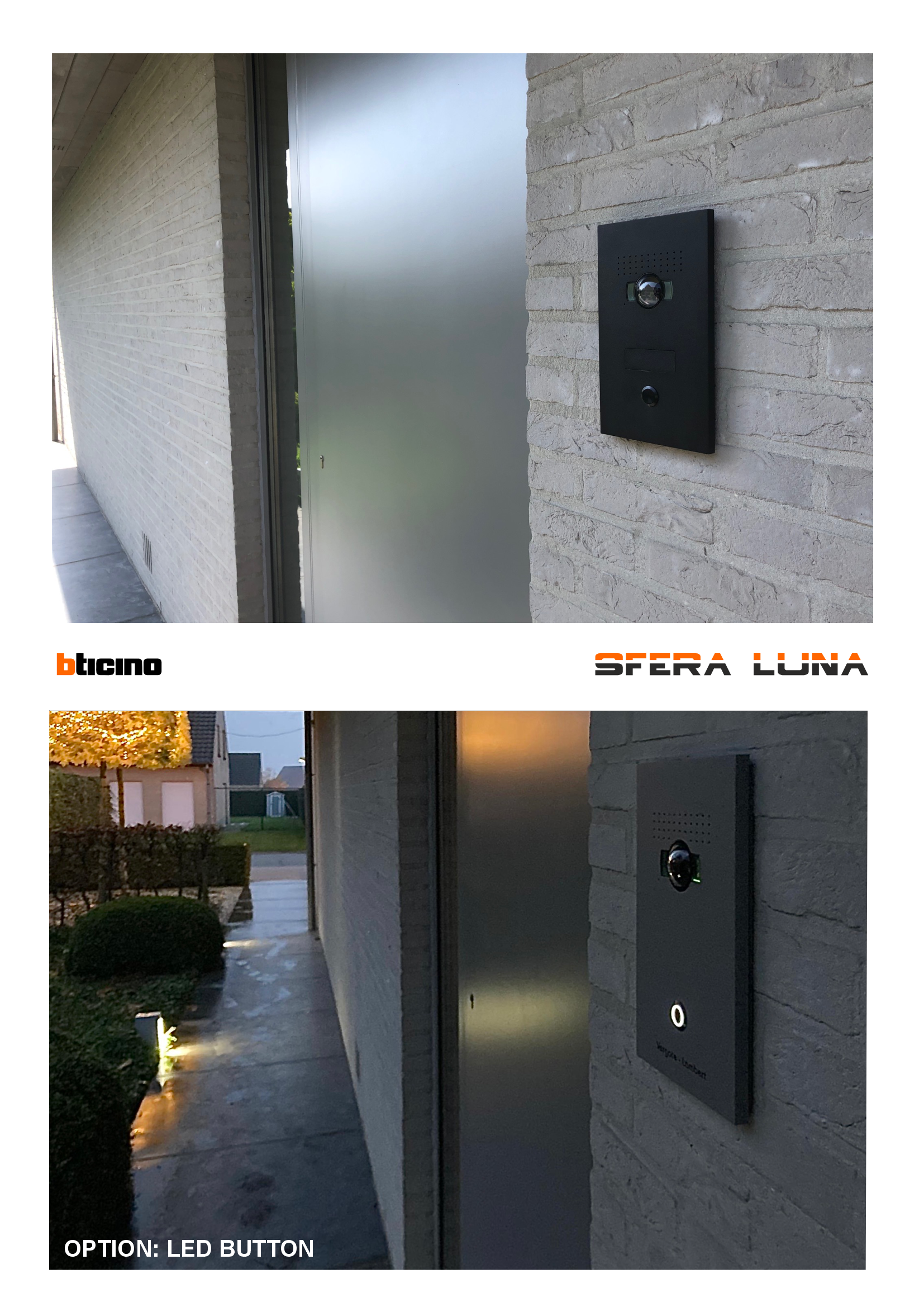

   Sleek high-end design at the entrance of your residence

4. ---

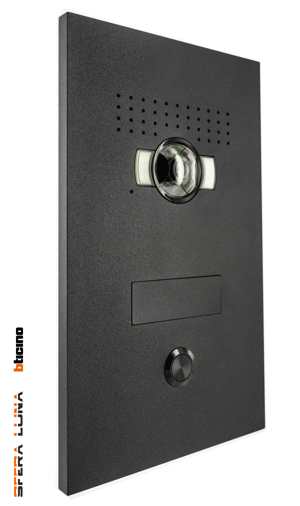

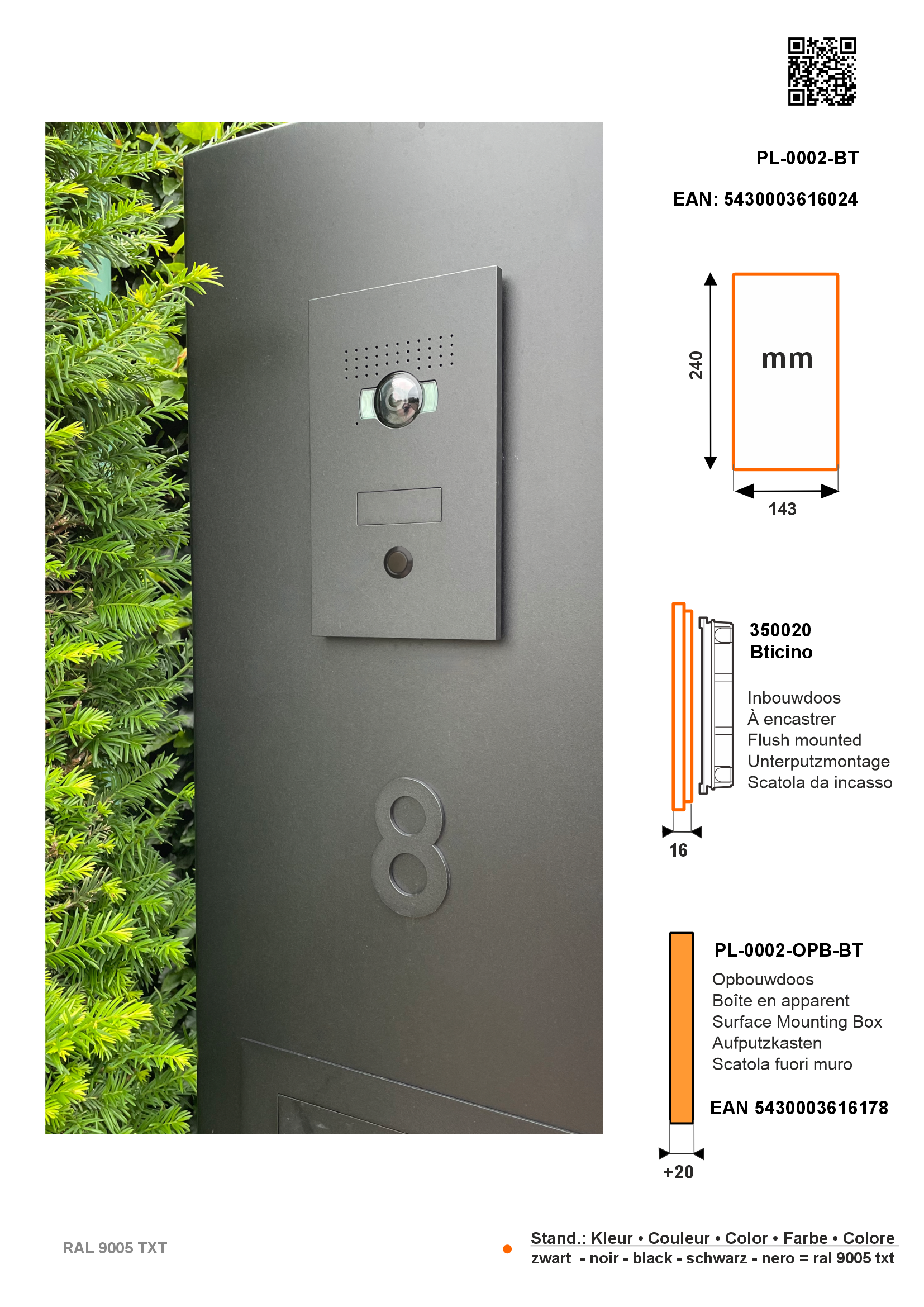

   Design front panel as standard in colour black ral 9005 fine texture.

5. ---

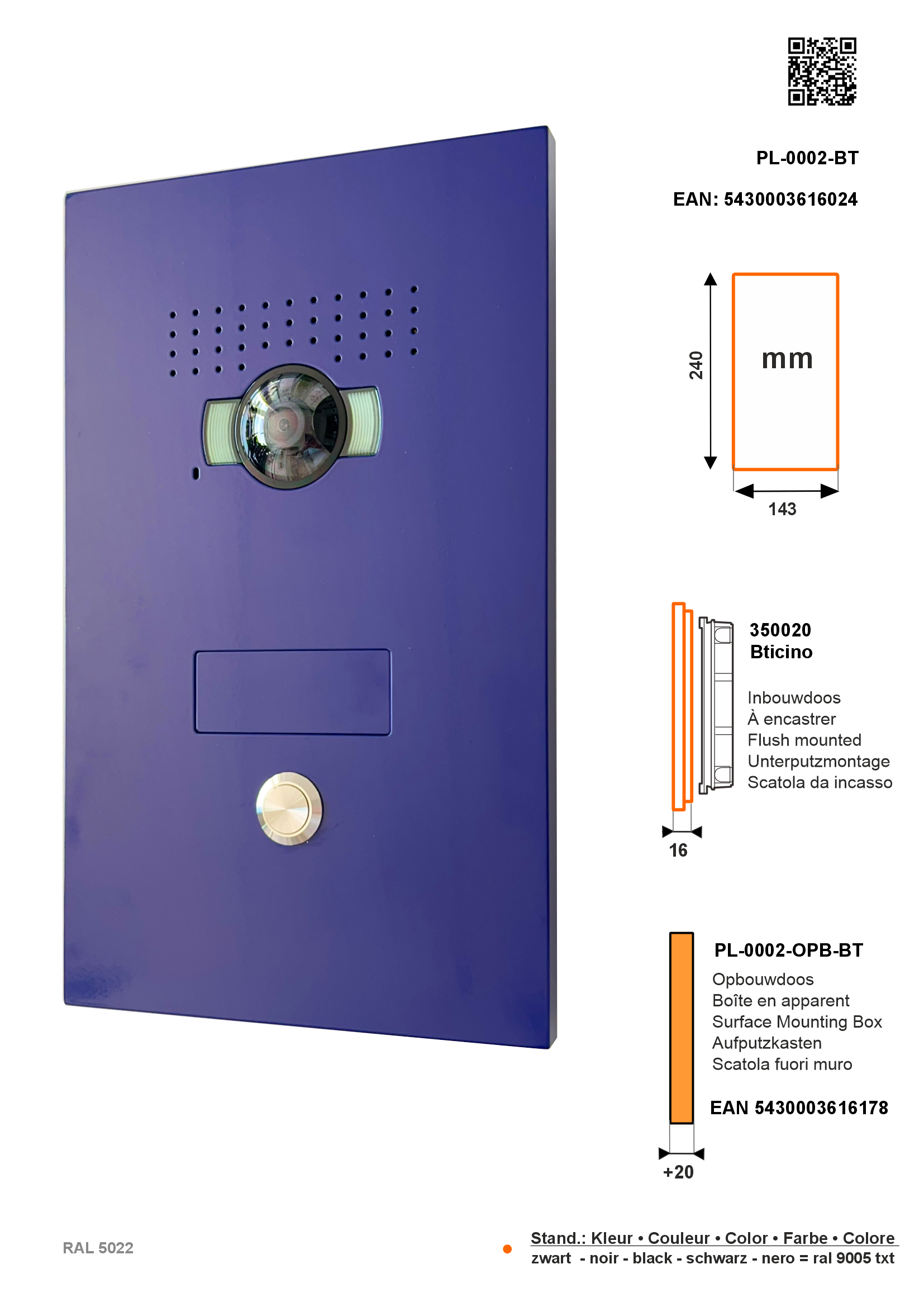

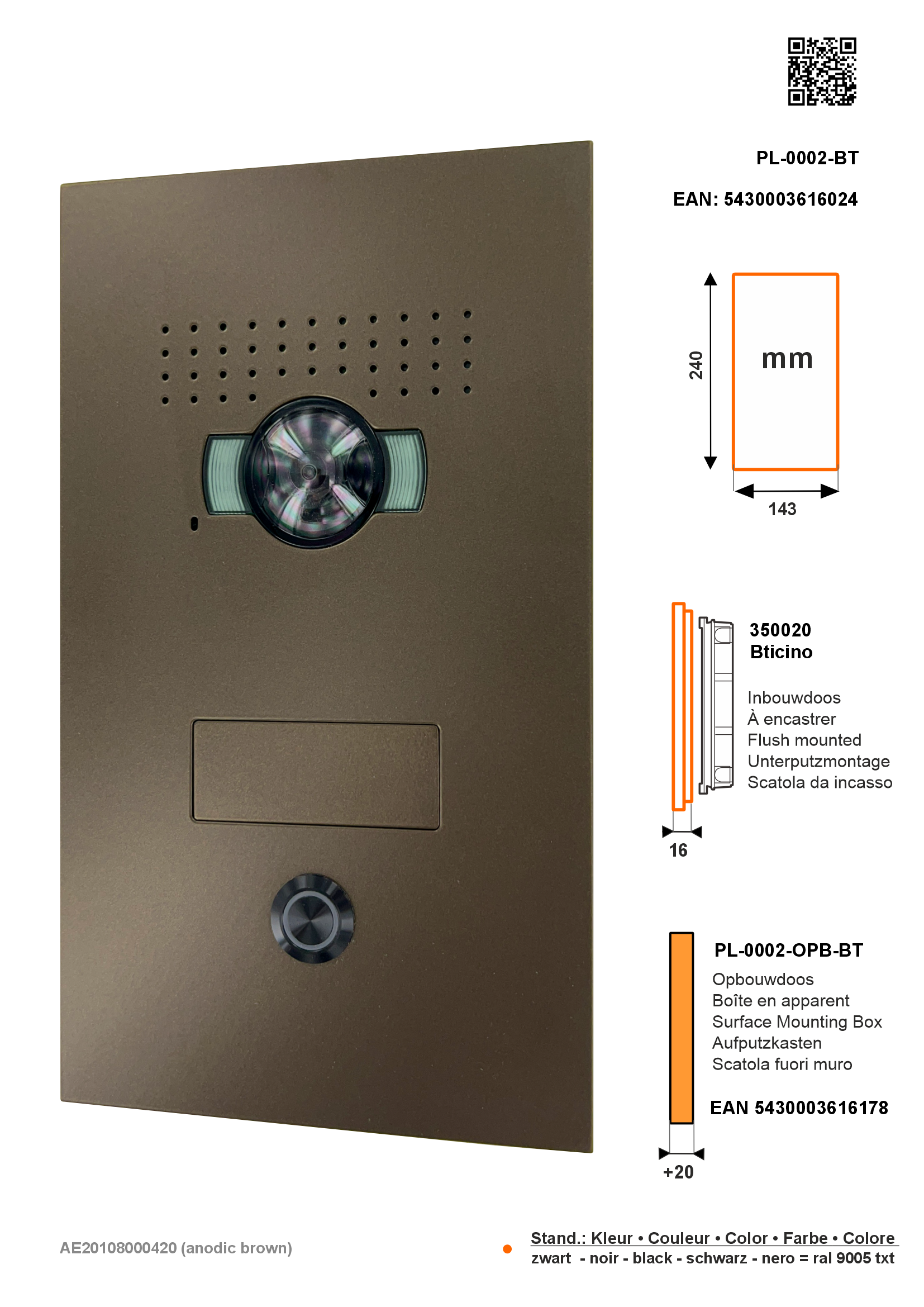

   The front panels are available in all ral colors, matching the color of your residence or project.

6. ---

   Interchangeable name plate / name shield: always a clean and uniform look to any residence or home.


• Produced in 10mm aluminium, High End, Solid finishing.
• Central mounting system front panel. (Simple blind mounting)
• Vandalism resistant.  (IP54 - IK08)
• The name plate / name shield can be personalized when ordered or later.
• Installation possibilities: on walls, gates, poles, mailboxes, etc ...

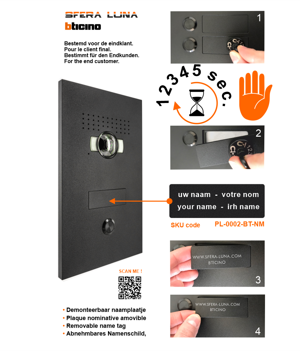

• The name tag can be easily changed with a unique, invisible mounting system.
• Removable name tag can be personalized or not, when ordering or later.
• Easy installation in narrow environment
• Flush-mounting on standard box BTICINO 350020

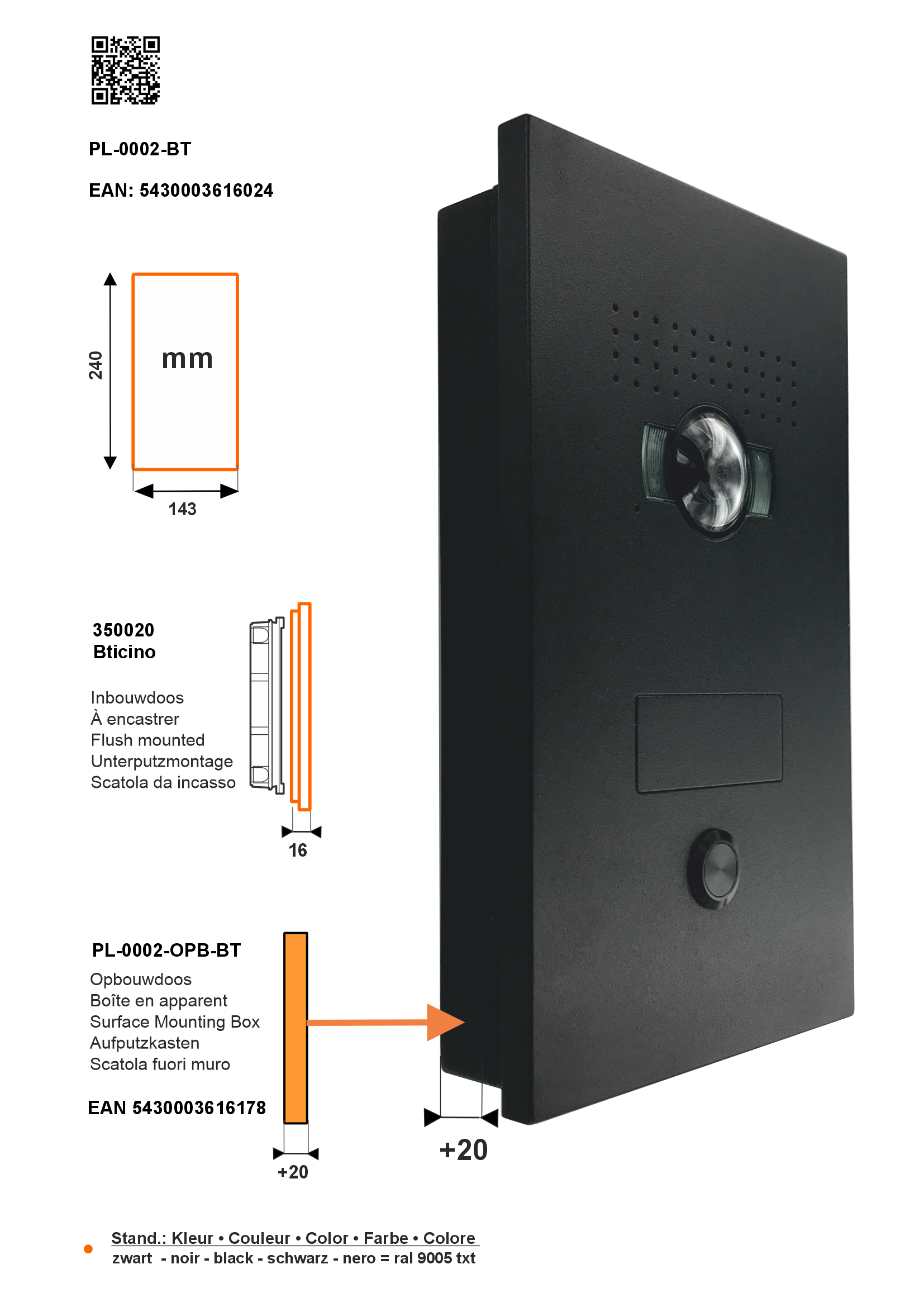

• Also available with surface-mounted module.
• Positioning spirit level with oblong holes

SFERA LUNA FOLDERS

All Ral colors available

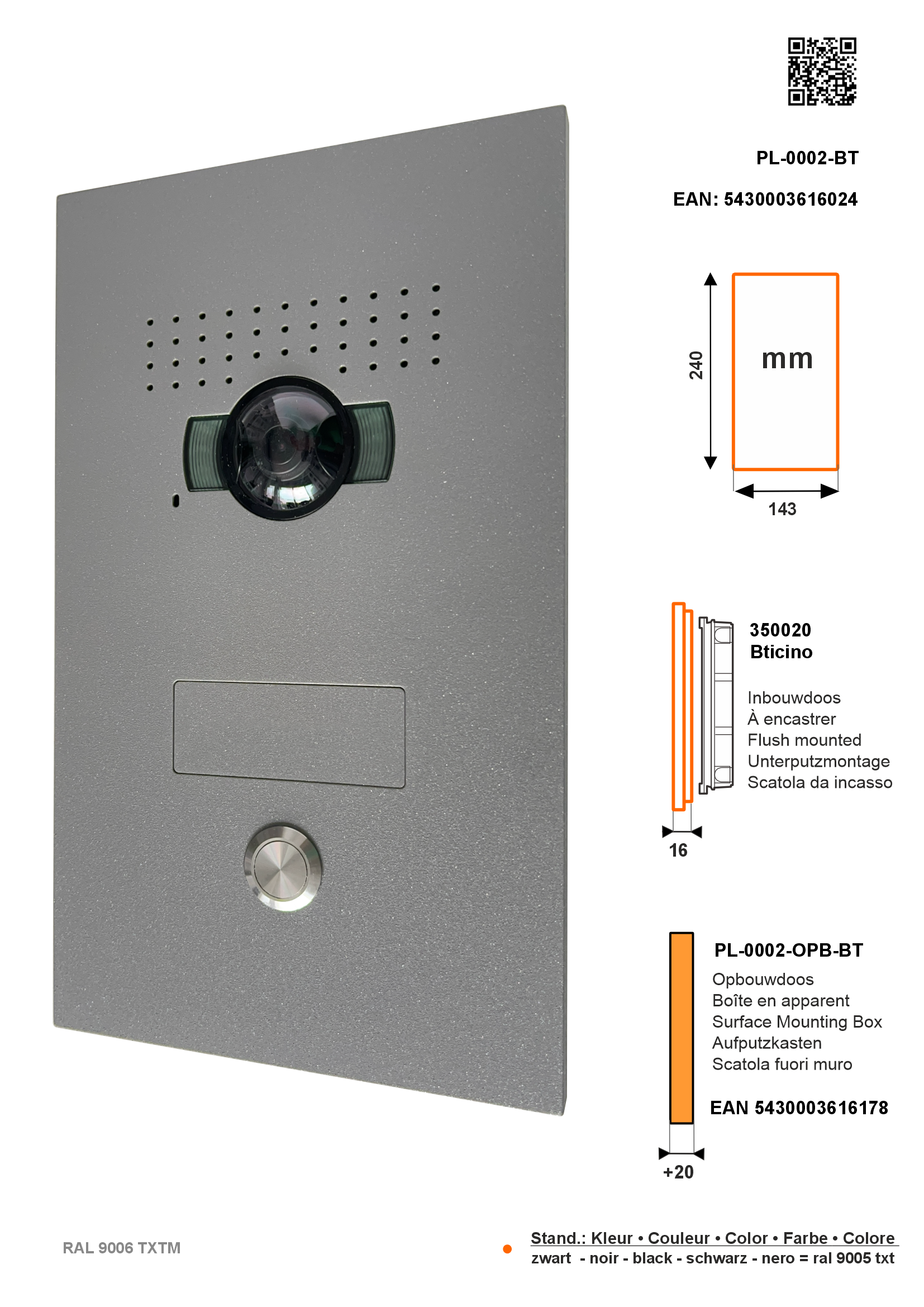

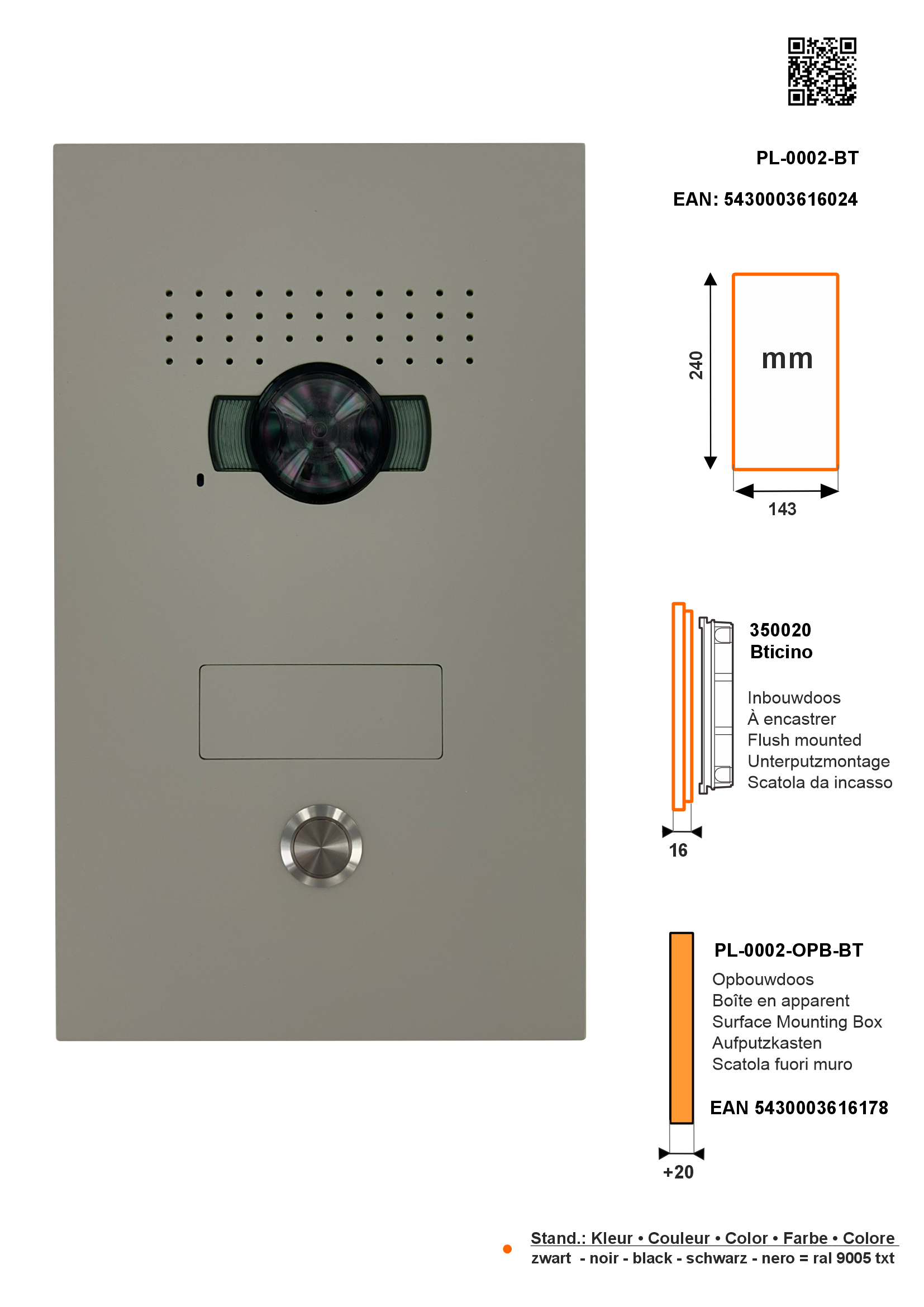

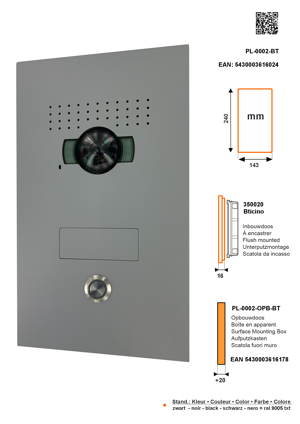

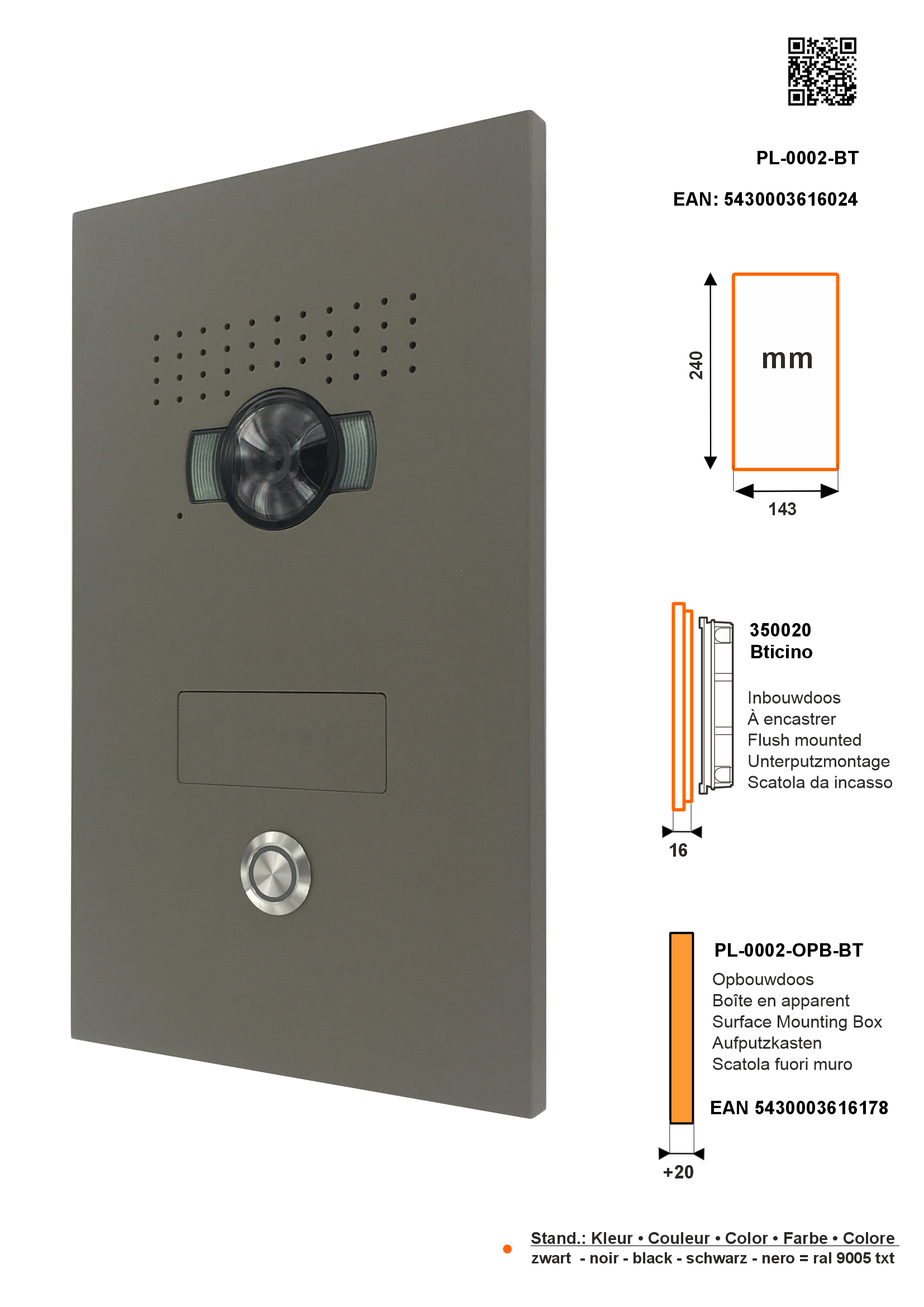

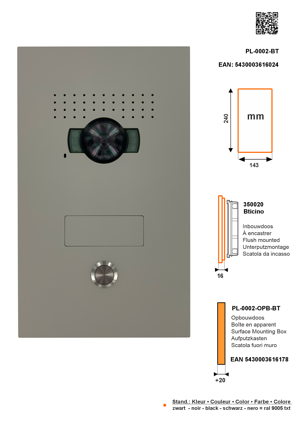

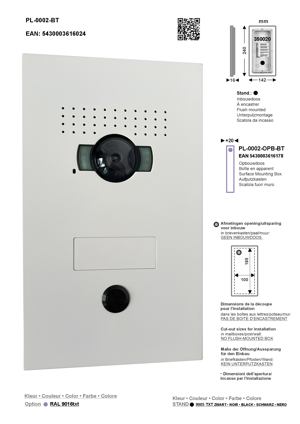

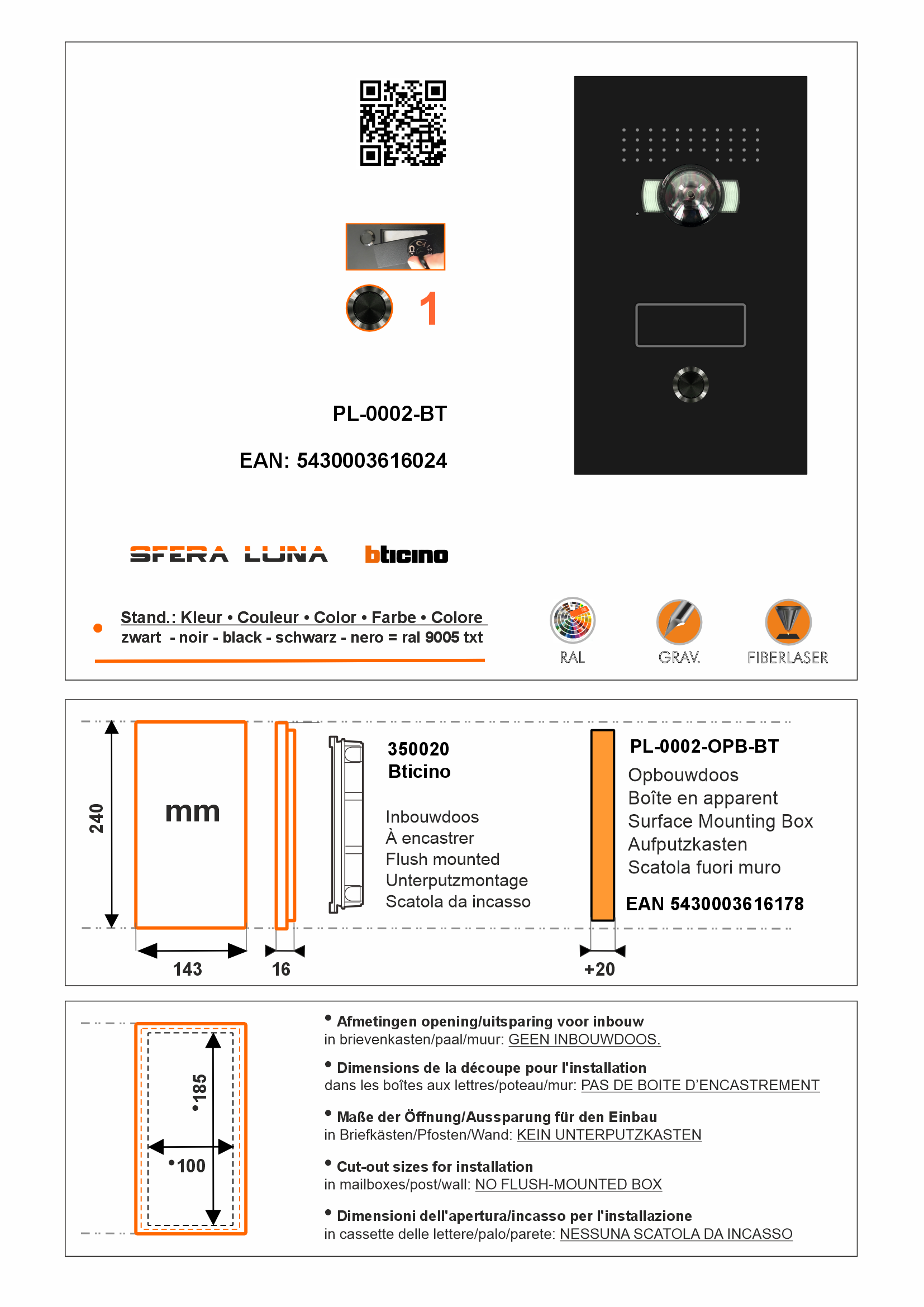

width 142mm x height 240mm

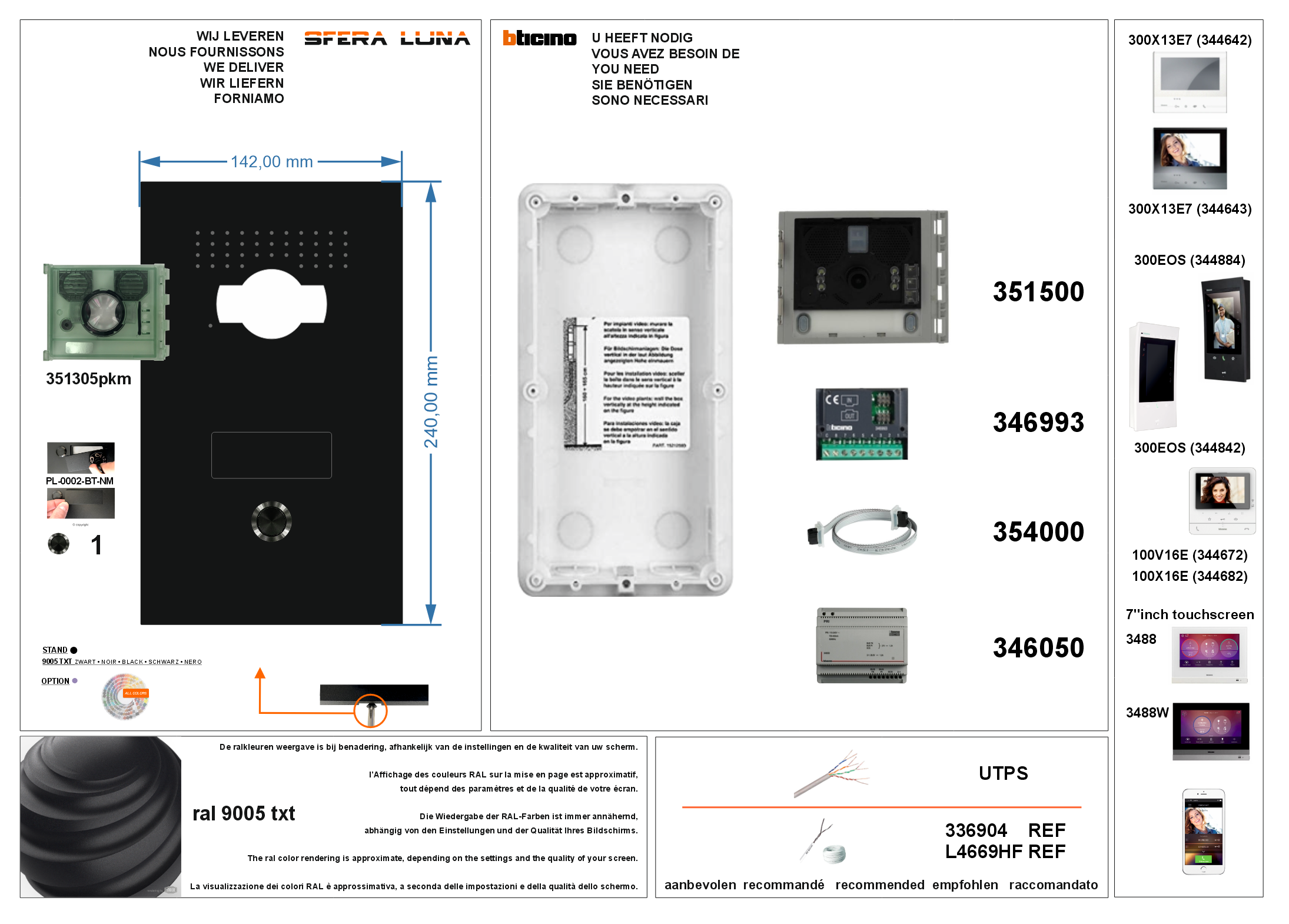

We supply:

1. Front panel entrance in ral color  (IP54 - IK08)
2. Modular panel frame + screws for installation on flush-mounting box 350020
3. 351305pkm - Plexiglas for modul audio/video module with wide-angle lens 3515300 = 351500
4. 1 Push button black stainlesssteel, stainlessteel, or led.  (IP67 - IK08)
5. 1 Interchangeable name tag (IP68)
6. Tool for mounting changeable name tags

You need Bticino:

1. 350020 - Flush-mounted box 2 modules
2. 351300 or 351500 - Audio/video module with wide-angle lens
3. 346993 - Interface Sfera
4. 346050 - Power supply
5. Compatible with all BTicino indoor units: Class 100X16E or Classe300EOS  Alexa built-in  wifi-3/4G or MyHOME_UP 7" Hometouch 3488 (W)

These Bticino components are available:

via the wholesaler
via your installer/electrician  https://www.bticino.be/nl/professionals/bt-certified-expert
via stores https://www.bticino.be/nl/stores

Create your personal videophone with the editor order form.

• Combine your combination(s) into an original concept!
• Real time display. The rendering will always be optimized by our typographer / graphic artist.
• The order form is already preset and indicated in blue like the photo shown in our webshop.

Aluminium THE GREEN METAL:

Aluminum can be recycled almost infinitely without loosing its unique properties. In remelting it is not only reclaimed metal, but by definition, 95% of energy is saved. The ore is very easy to exploit: it is just excavated to the surface. After just fifteen years nature has recovered.
